SKU: 14284
(0)

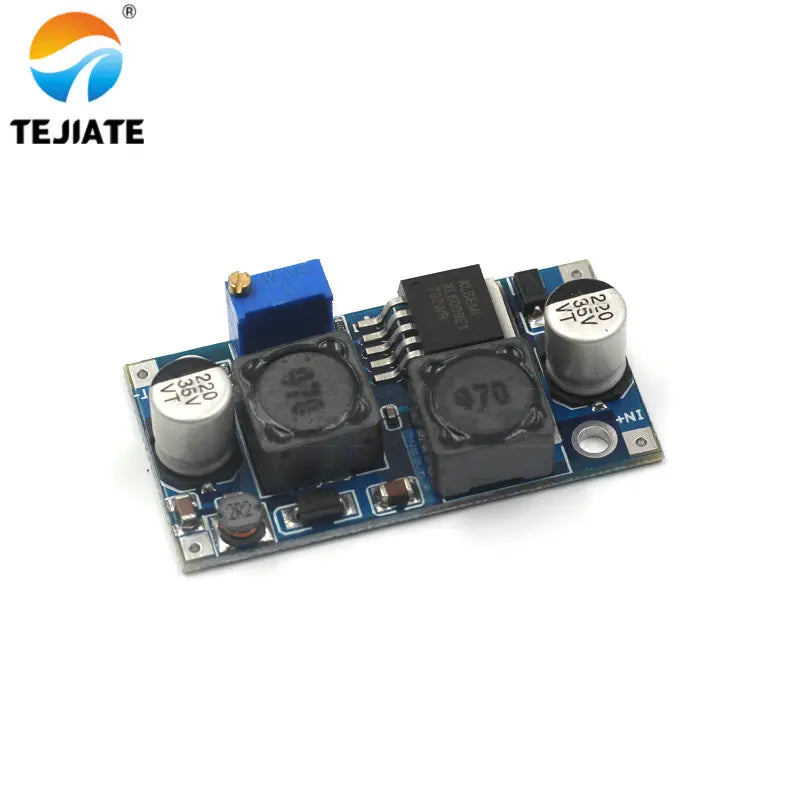

XL6009 DC-DC 5 -32V to 1.25 -35V Boost Automatic Transformer Solar Module Adjustable Converter Module 4 MOSFET Switch DSN6000AUD

Tejiate
In stock
¥2.10

Secure checkout

Friendly support

Hassle-free returns

Description:
Auto start voltage will be pulled down to 7V less or smaller engine at high speed when the voltage up to 15V or higher. For 12V electrical work hard at work, this automatic buck module solves this problem , regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.
Wide Input Voltage 5V - 32V
Wide Output Voltage 1.25V - 35V ( with automatic buck , scope of work, any voltage inputs can be arbitrarily regulated voltage output )
Built- 4A efficient MOSFET switch enable efficiency up to 94%(LM2577 current is 3A)
high switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz)

Application:
Car regulator, solar photovoltaic, wind power and other applications of voltage instability .

Parameter:
Model Specification: DSN6000AUD Automatic Buck module
Module Properties: Non- isolated boost (BOOST)
Rectification: Non- Synchronous Rectification
Input Range: 3.8V - 32V
Output Range: 1.25V - 35V
Input Current: 3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )
Conversion efficiency: <94% ( greater the pressure , the lower the efficiency )
Switching frequency: 400KHz
Output Ripple: 50mV ( the higher the voltage , the greater the current , the greater the ripple )
Load Regulation: +/-0.5%
Voltage Regulation: +/- 0.5%
Operating Temperature: -40 - +85 Degrees Celsius
Dimensions: 48mm * 25mm * 14mm ( L * W * H )
