SKU: 11477
(0)

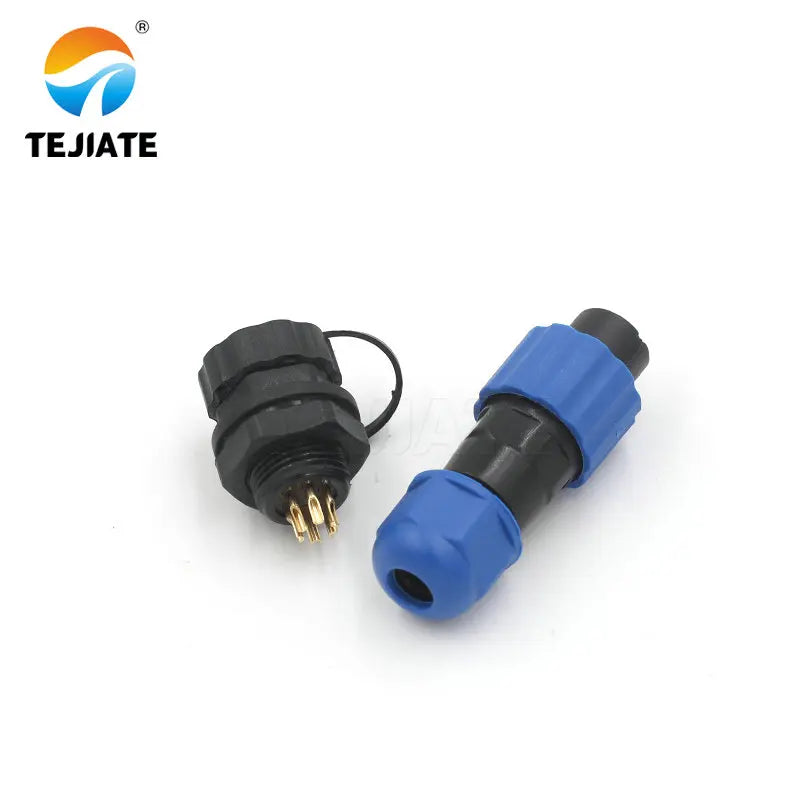

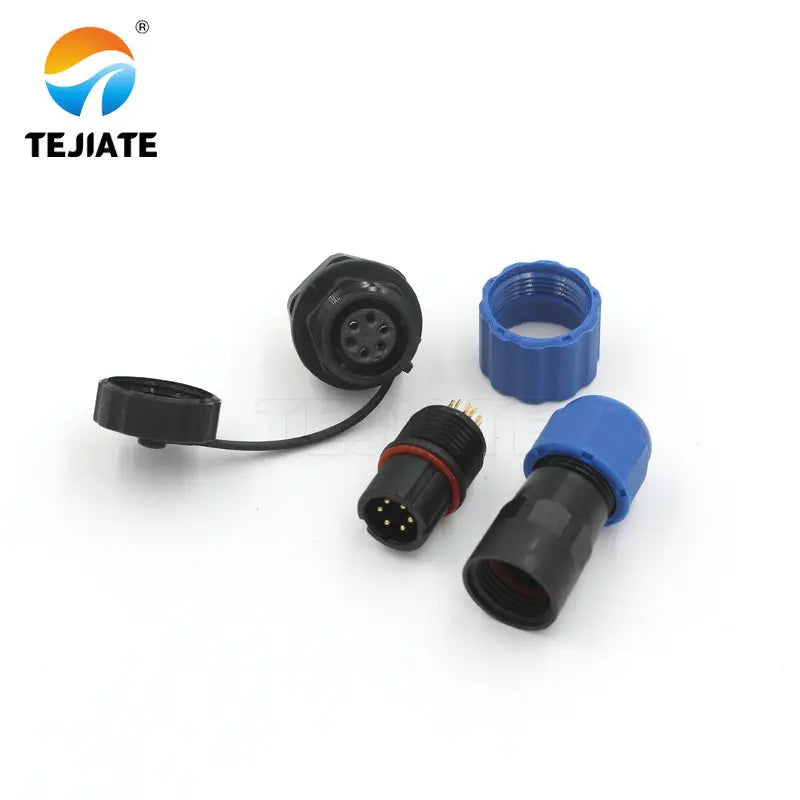

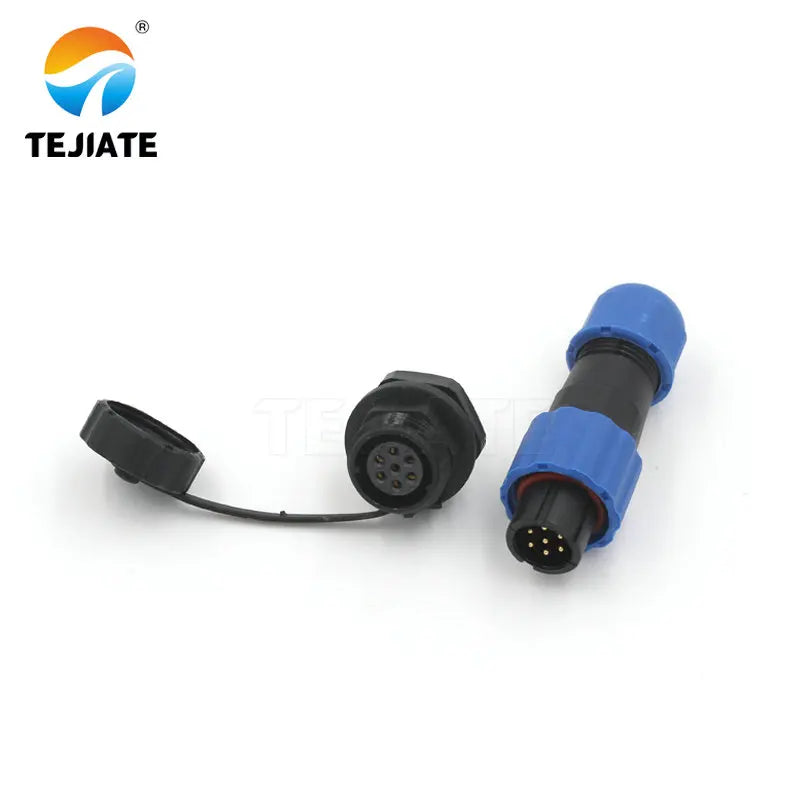

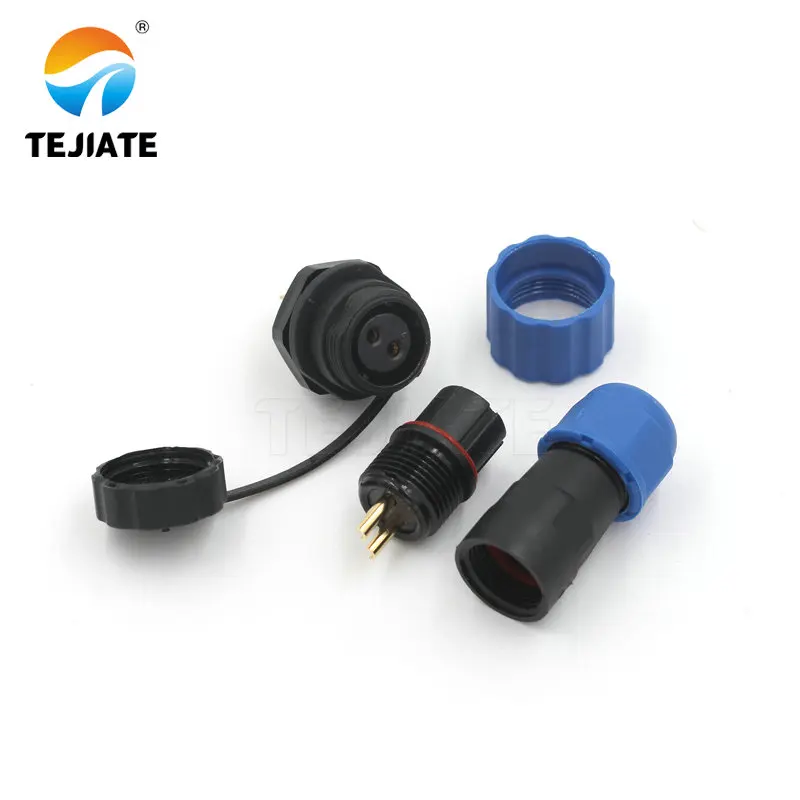

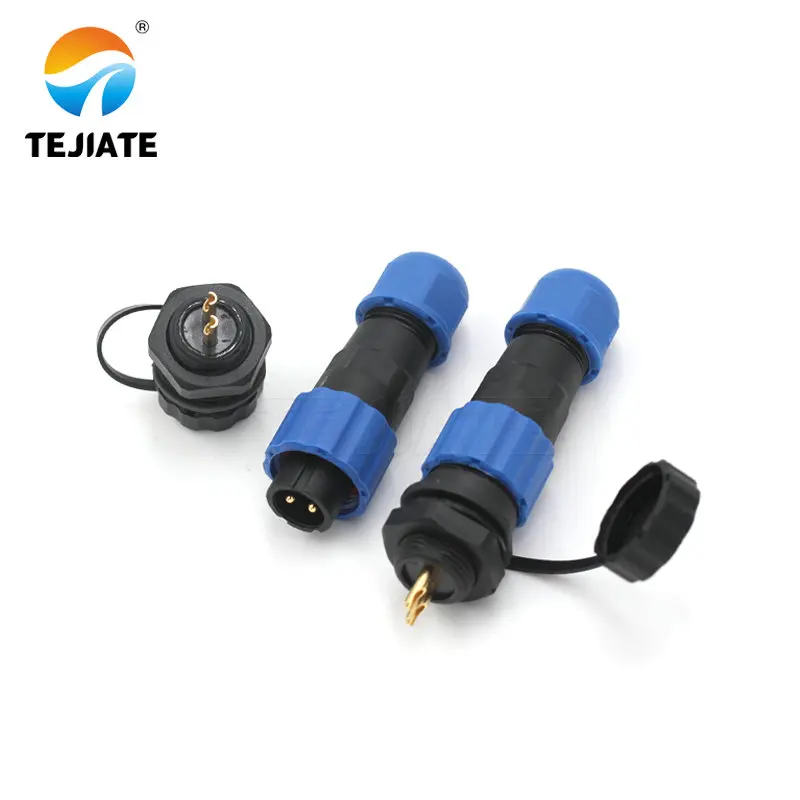

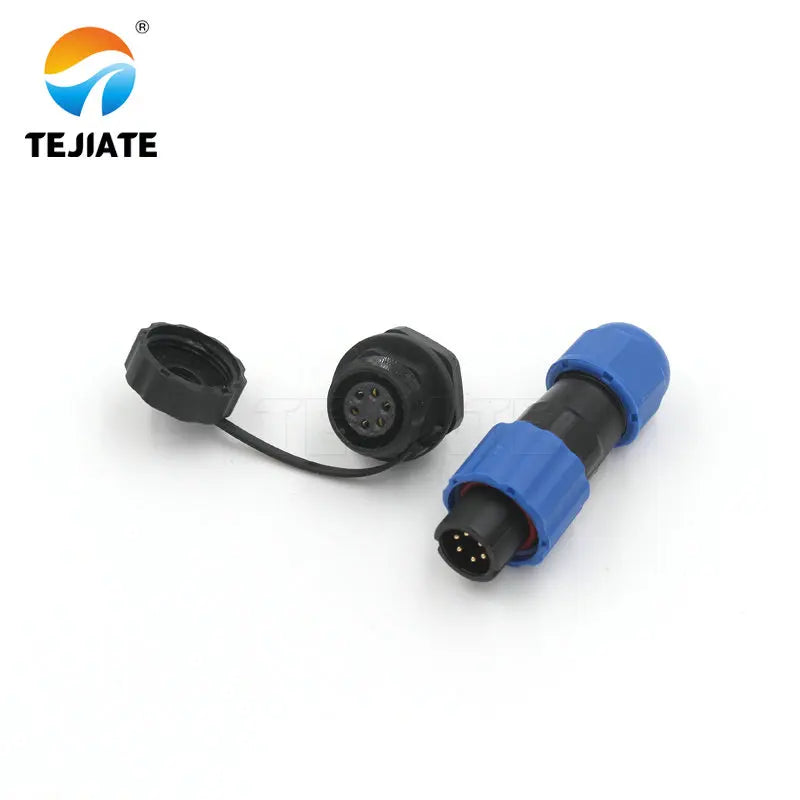

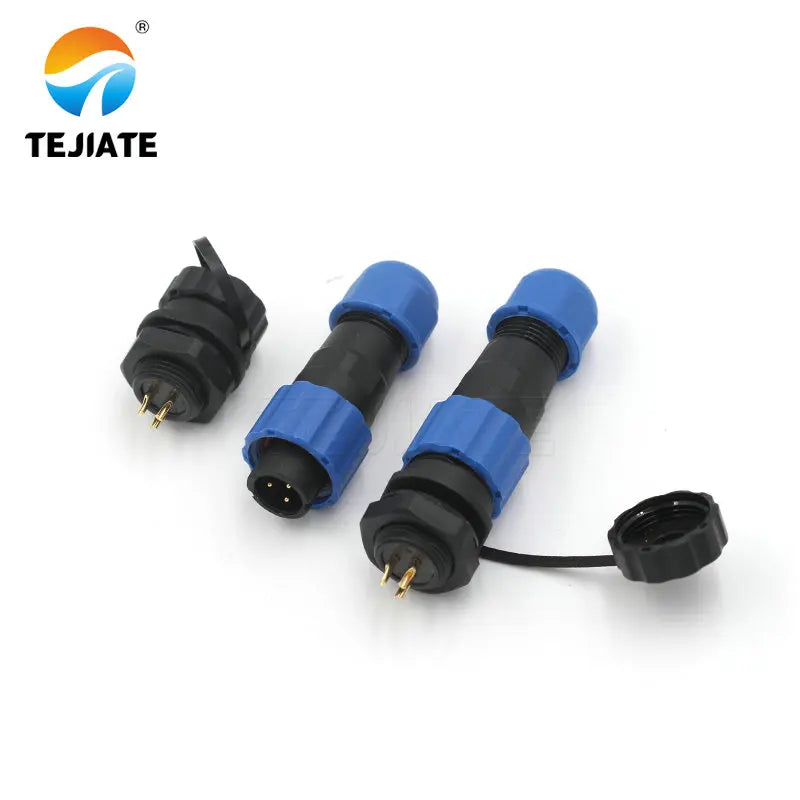

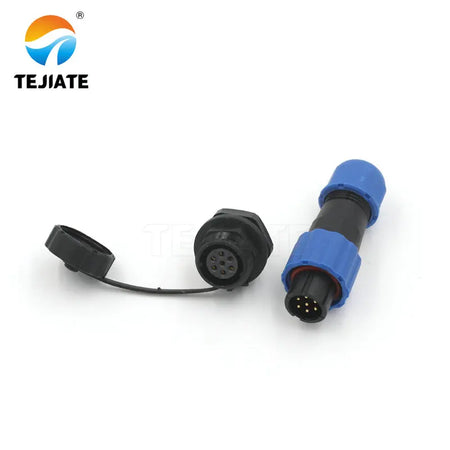

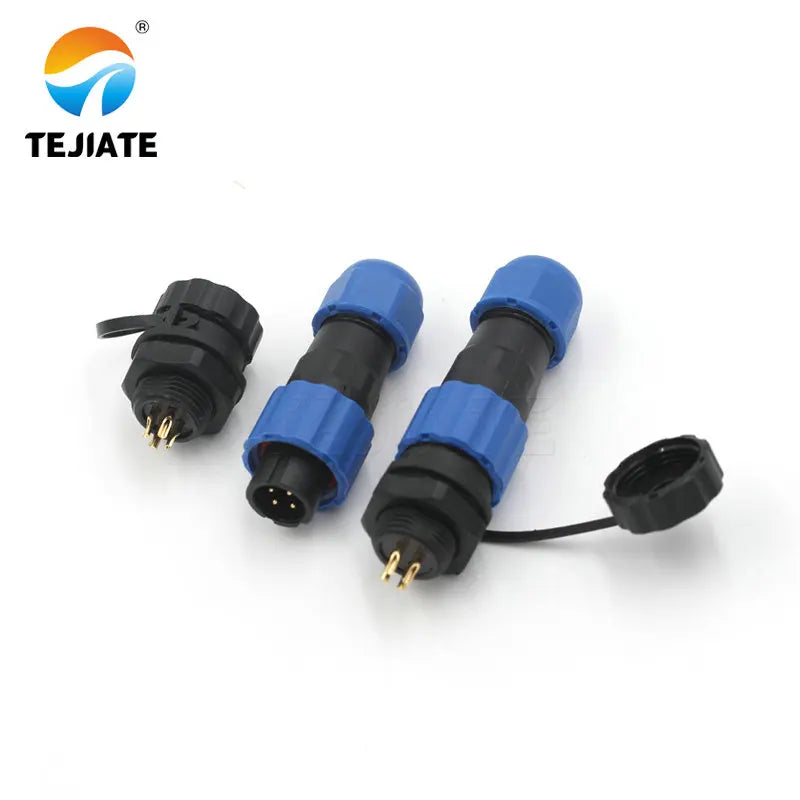

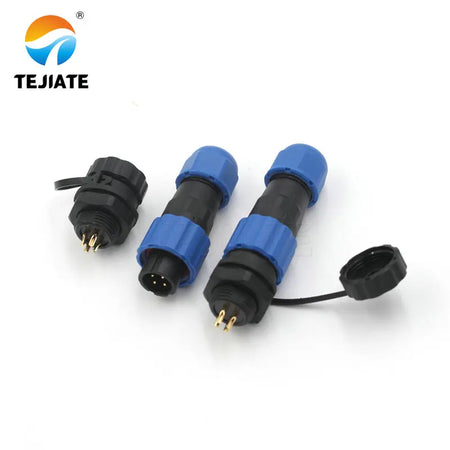

IP68 SP13 /2Pin/3Pin/4Pin/5Pin/6Pin/7Pin/9pin Waterproof Plug Socket Cable Connector

TEJIATE/特加特
In stock
¥2.45
Pins

Secure checkout

Friendly support

Hassle-free returns

Feature:
Aviation Connector Plug + Socket, SP13 Waterproof, Gold Plated Brass Conatct, Solder Termination
Feature with one side is pin aviation,the other side is cable gland, it with waterproof cap

Specification:
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Pins: 1Pin 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin
Contact Diameter: 2.8x2mm 1.8x2mm 1x3mm 1x4mm 1x5mm 1x6mm 1x7mm
Rated Current: 25A 10A 5A 5A 5A 5A 5A
Working Voltage: AC 250V
Withstand Voltage: AC 1500V
Contact Resistance: 2MΩ 2MΩ 5MΩ 5MΩ 5MΩ 5MΩ 5MΩ
Insulation Resistance: 2000MΩ
Waterproof Level: IP68
Operating temperature: -25 ~110°
Relative humidity: 90%~95% (40 + 2 °)
Applicable wire: 0.78mm⊃2; 2.54mm⊃2; 6.15mm⊃2; 10.17mm⊃2;
Mechanical life: more than 500 times
Mounting Hole Size: 12.2x13mm
Screw Diameter: 20mm
Connector Length: 50mm
Outlet Diameter: 6.5mm
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:
1 Pc x Waterproof Connector
