SKU: 00501-20
(0)

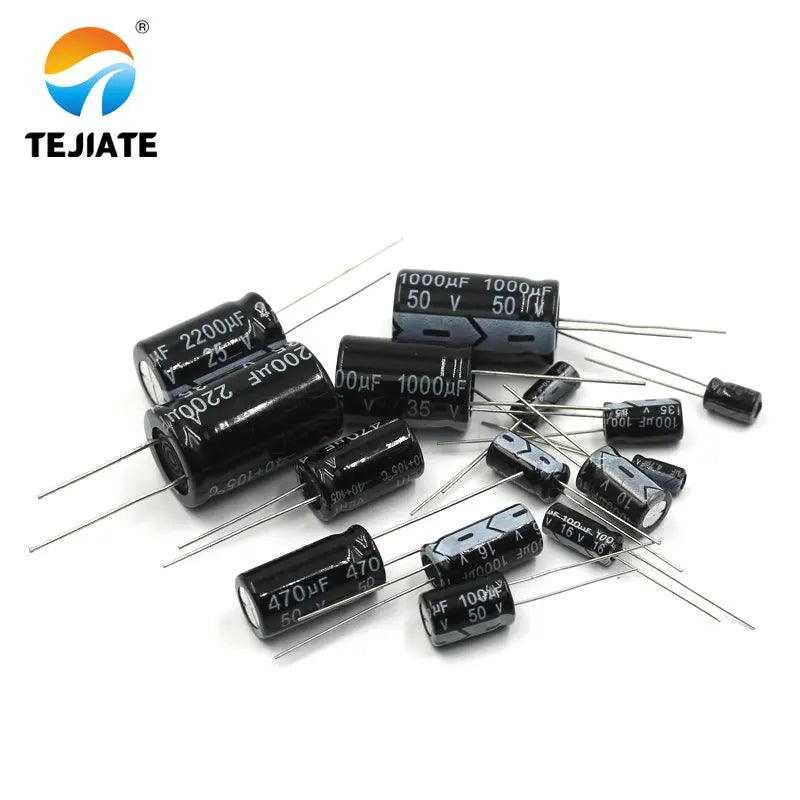

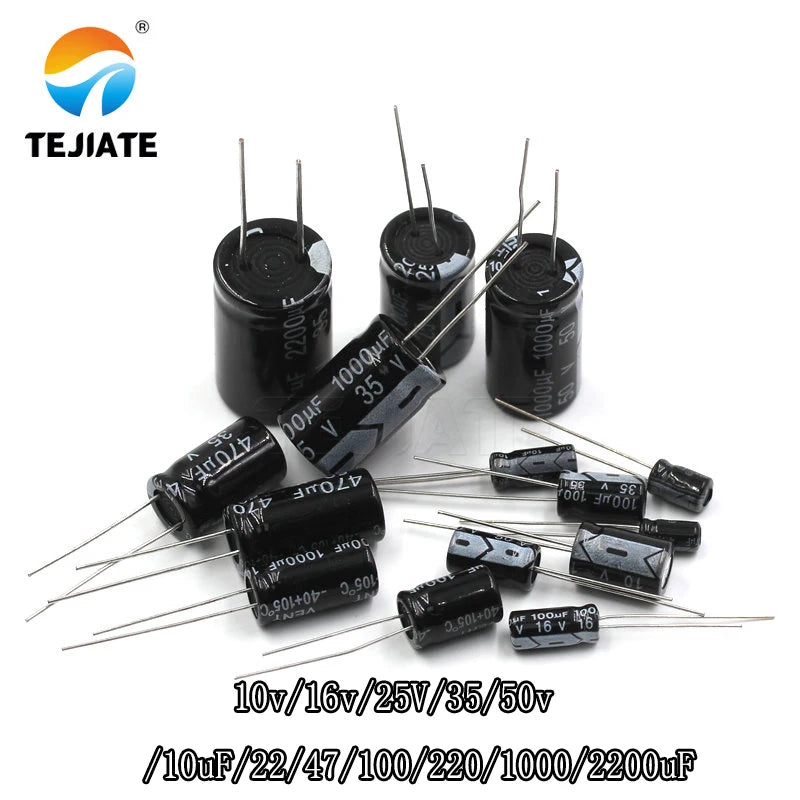

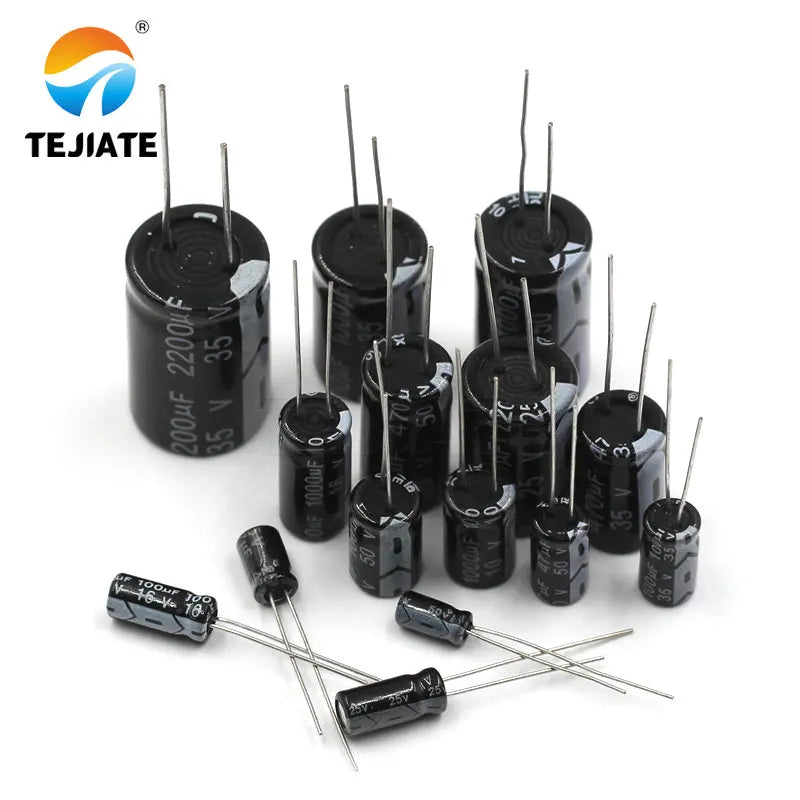

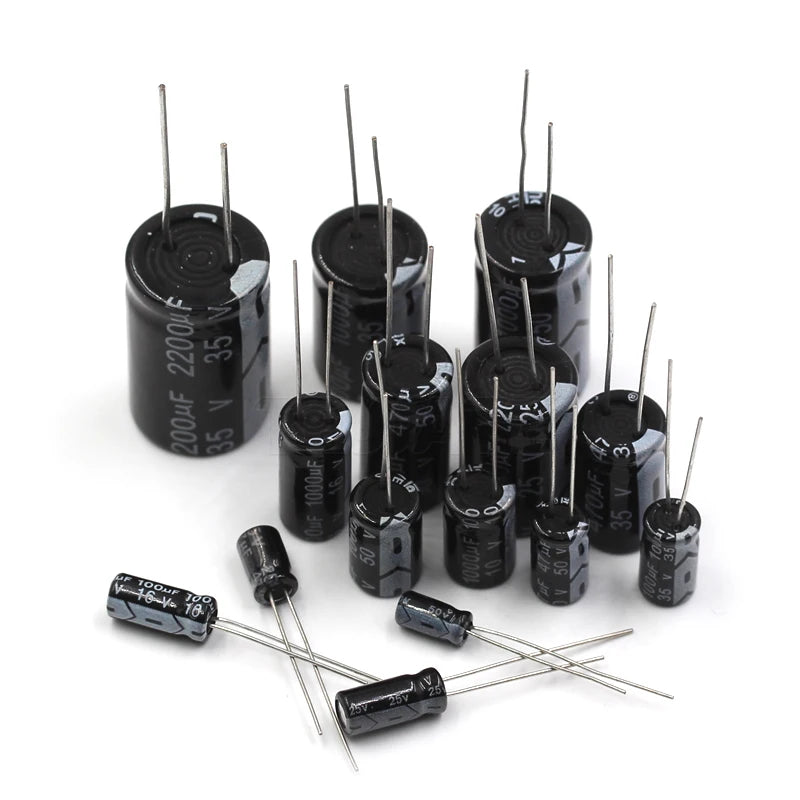

Directly inserted Aluminium Electrolytic Capacitor Kit DIY 10v/16v/25V/35/50v/10uF/22/47/100/220/1000/2200uF

特加特
In stock
¥0.78
Capacitance

Secure checkout

Friendly support

Hassle-free returns

Details

Electrolytic capacitor withstands high and low temperature, ripple current, small volume, aluminum material

Capacitance, Direct Insertion, Cylindrical, 10v/16v~1000

Multiple Model Selection of 12200uF

The functions of electrolytic capacitors in switching power supply include bypass, decoupling, filtering and energy storage. Generally, if the first foot is the negative pole, or the lead is the positive pole, the short lead is the negative pole.

In the power supply circuit, the rectifier converts AC into pulsating DC. After the rectifier circuit, an electrolytic capacitor with larger capacitance is connected, and the pulsating DC voltage after rectification becomes relatively stable DC voltage by utilizing its charging and discharging characteristics. In practice, in order to prevent the supply voltage of each part of the circuit from changing due to load raking, the output end of the power supply and the input end of the power supply of the load are usually connected with dozens to hundreds of micrometers of electrolytic capacitors.

Dielectric material aluminium electrolysis
Cylindrical product shape
Power in Power Characteristic
High Frequency Characteristic
Lead Type Radial Outlet
Allowable deviation 20%
Installation mode direct insertion
10V 1000UF size 8X12MM
10V 2200uF size 10*17mm
16V 100uF size 5x11mm
16V 220uF size 6X7MM
16V 470uF size 8X12MM
16V 1000UF size 8x16MM
25V 10uF size 5X11mm
25V 47uF size 5X7mm
25V 100uF size 6x11mm
25V 220uF size 8X12MM
25V 470UF size 8X12
25V 1000UF size 10X17mm

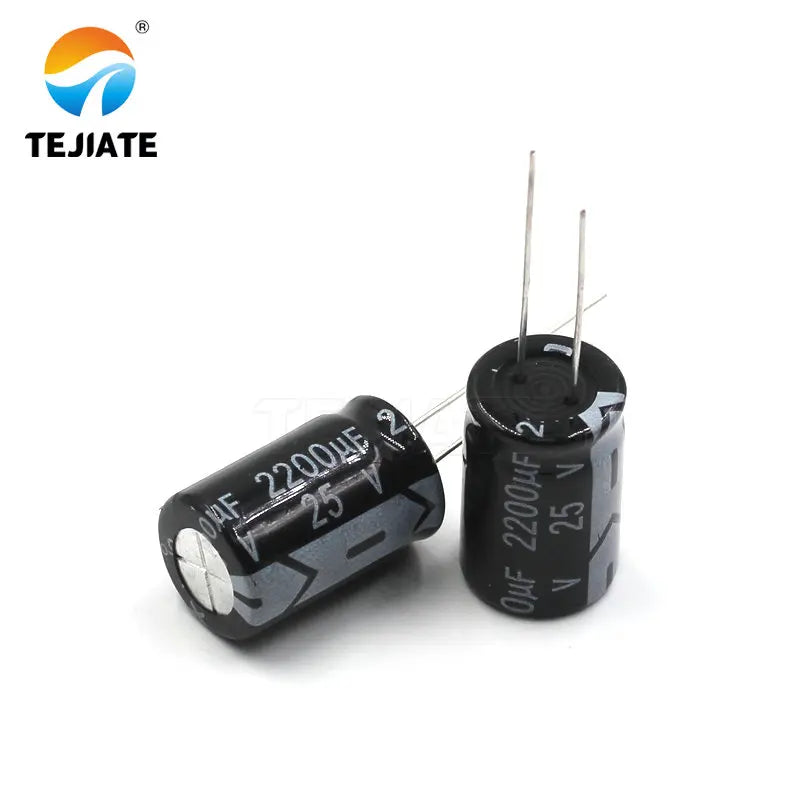

25V 2200uF size 13x21mm
35V 100uF size 6x12mm
35V 470uF size 10x17mm
35V 1000uF size 13x21mm
35V 2200uF size 16x25MM
50V 4.7uF size 4X7mm
50V 10uF size 5X11mm
50V 47uF size 6x11mm
50V 100UF size 8X12MM
50V 220uF size 8X12MM
50V 470uF size 10X17mm

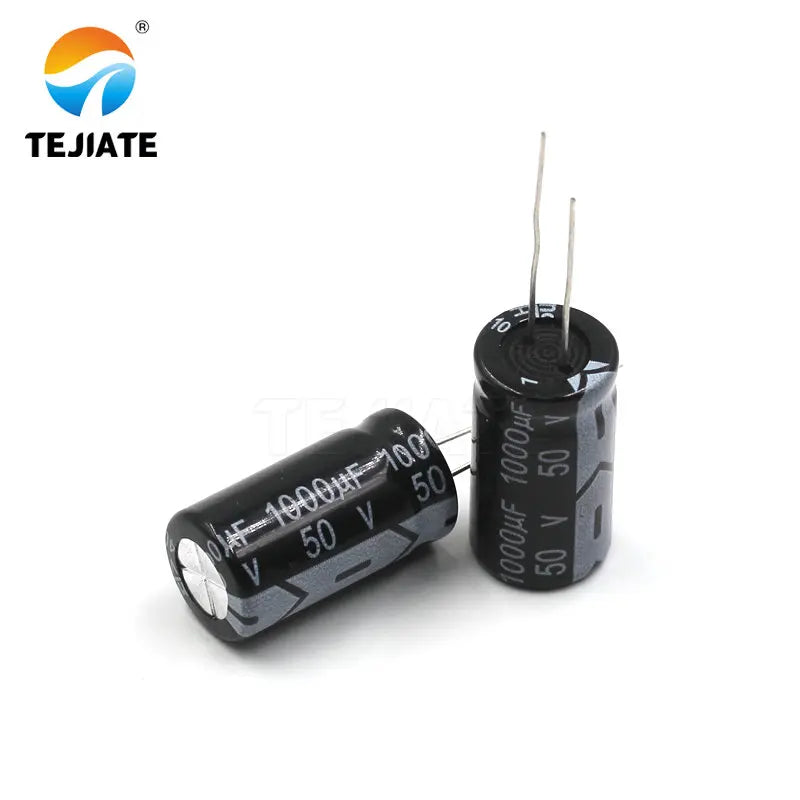

50V 1000uF size 13x25mm
