SKU: 00380-10
(0)

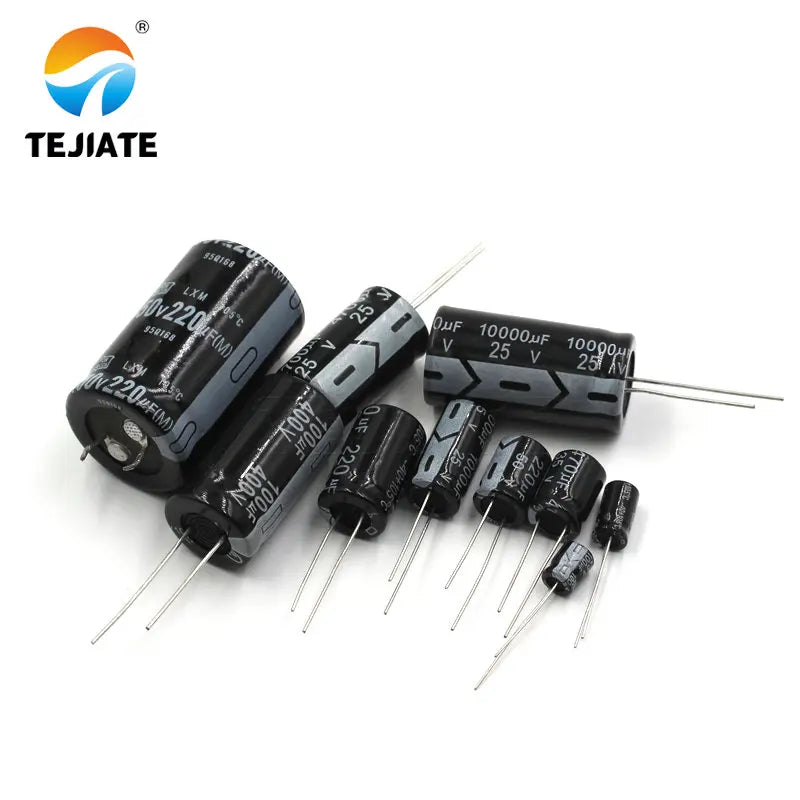

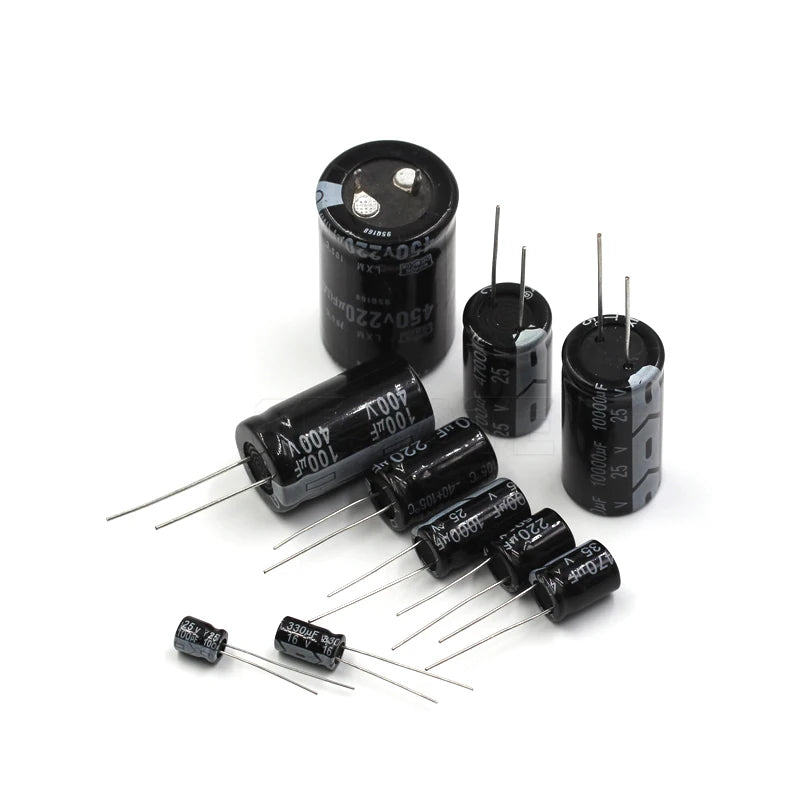

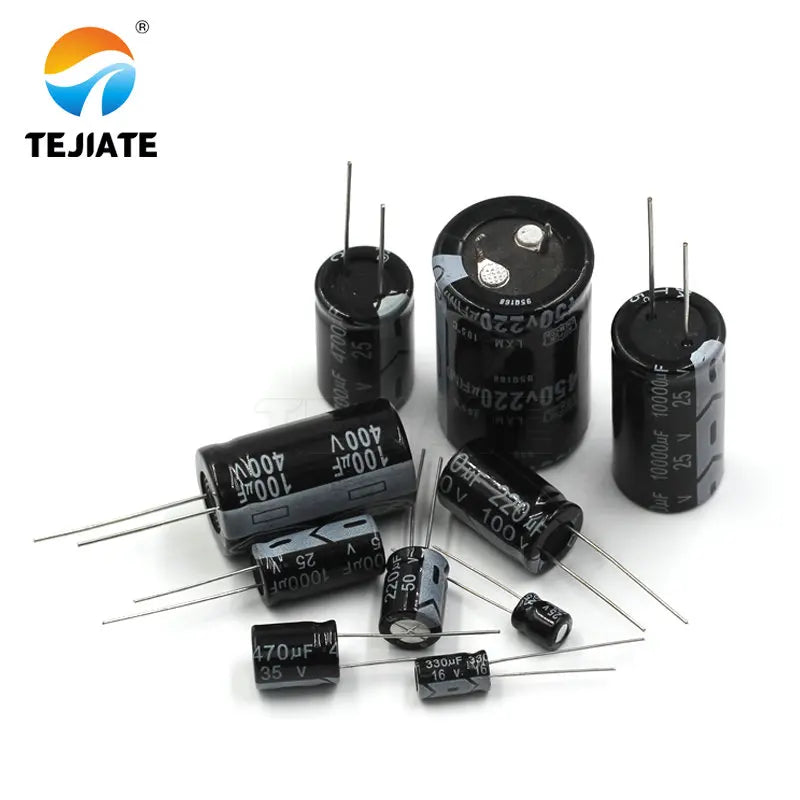

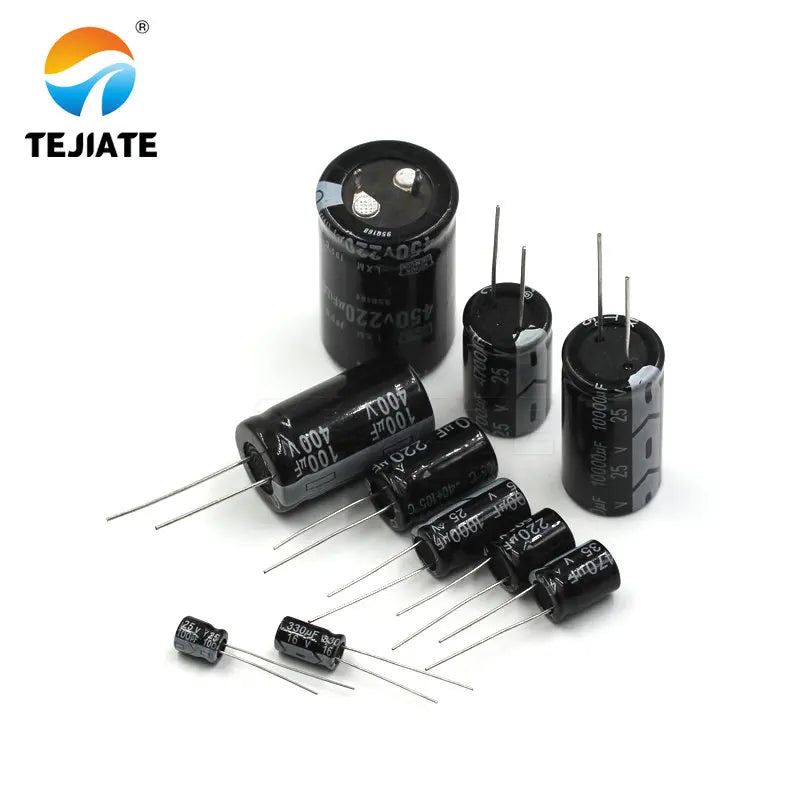

DIP Direct Inserted Aluminum Electrolytic Capacitor diy 16V 25V 35V 100V 470UF 100uf 1000uf 2200UF

特加特
In stock
¥0.68
Capacitance

Secure checkout

Friendly support

Hassle-free returns



Details

Electrolytic capacitor withstands high and low temperature, ripple current, small volume, aluminum material

Capacitance, Direct Insertion, Cylindrical, 10v/16v~1000

Multiple Model Selection of 12200uF

The functions of electrolytic capacitors in switching power supply include bypass, decoupling, filtering and energy storage. Generally, if the first foot is the negative pole, or the lead is the positive pole, the short lead is the negative pole.

In the power supply circuit, the rectifier converts AC into pulsating DC. After the rectifier circuit, an electrolytic capacitor with larger capacitance is connected, and the pulsating DC voltage after rectification becomes relatively stable DC voltage by utilizing its charging and discharging characteristics. In practice, in order to prevent the supply voltage of each part of the circuit from changing due to load raking, the output end of the power supply and the input end of the power supply of the load are usually connected with dozens to hundreds of micrometers of electrolytic capacitors.

Dielectric material aluminium electrolysis
Cylindrical product shape
Power in Power Characteristic
High Frequency Characteristic
Lead Type Radial Outlet
Allowable deviation 20%
Installation mode direct insertion
25V 680uF size 10x17mm
25V 1000UF size 10X20mm
35V 470uF size 10x17mm
16V 4700uF size 16x25mm
25V 3300uF size 16x25mm
25V 4700uF size 16x25mm
35V 3300uF size 16x25MM
63V 1000uF size 16x25mm
100V 470uF size 16x25mm
160V 100UF size 13x25mm

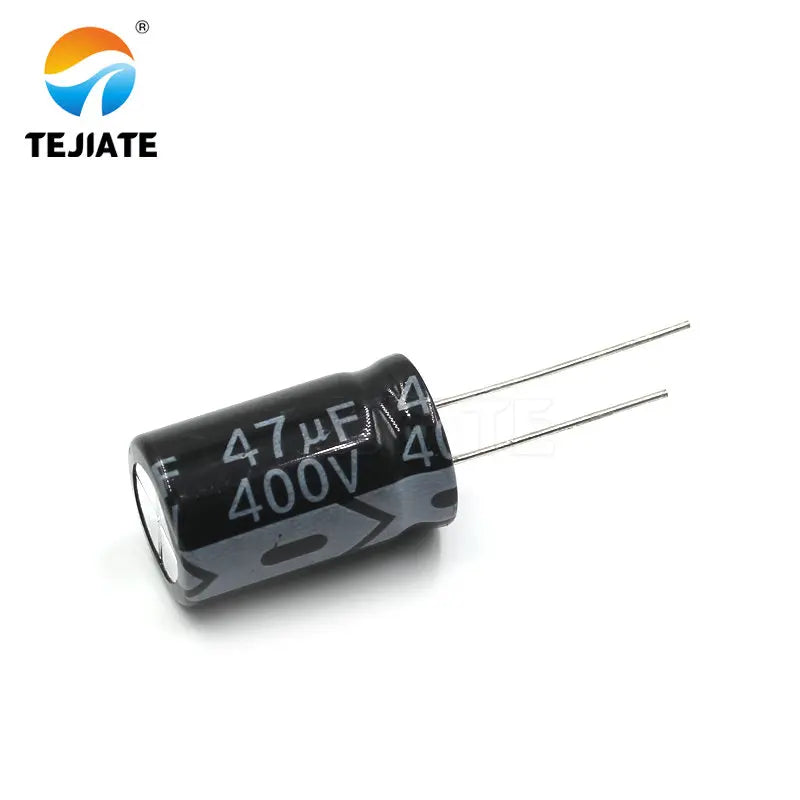

400V 47uF size 16x25mm
450V 22UF size 16x25mm
450V 47UF size 18x25mm
50V 2200UF size 16x30mm
50V 3300UF size 18X35
25V 6800UF size 18x30mm
25V 100UF size 6X7mm
25V 10000uF size 18x35mm
50V 220UF size 10X13mm
63V 2200uF size 18x35mm
100V 220UF size  13X21mm
16V 330UF size  6X12mm
400V 100uF size 18x30mm

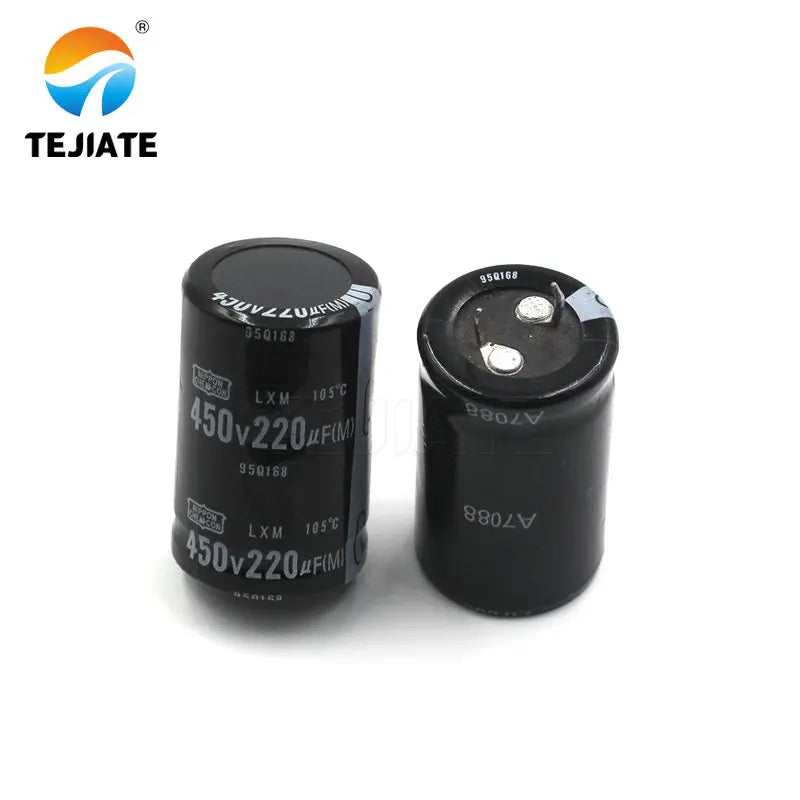

450V 220UF size  25X40mm未标题-1
