DC-DC Voltage stabilized power supply module Adjustable boost& buck voltage regulator module LM2596S-ADJ MT3608 MP1584EN

TEJIATE/特加特
In stock
¥0.82
Color

Secure checkout

Friendly support

Hassle-free returns

  • LM2596S-ADJ

  • Nombre: módulo DC-DC Buck LM2596

  • Voltaje de entrada: 4 V ~ 35 V

  • Voltaje de salida: 1,23 V ~ 30 V

  • Corriente de salida: 3 A (máx.)

  • Eficiencia de conversión: 92% (máx.)

  • Ondulación de salida: <30mV

  • Frecuencia de conmutación: 150 KHz

  • Temperatura de funcionamiento:-cuarenta y cinco ~ + 85

  • Tamaño: 43mm * 21mm * 14mm (largo * ancho * alto)

    Características:

    1. rango de Voltaje de entrada: 3,2 V a 40 V CC (El voltaje de entrada debe ser mayor que el voltaje de salida de 1,5 V por encima. No puedo de refuerzo)

    2. rango deVoltaje de salida: 1,25 V CC a 35 V voltaje ajustable,Alta eficiencia (92%)La mayor corriente de salida máxima es 3A.

    Instrucciones:

    1. Potencia (3-40 V), luz indicadora de alimentación, el módulo funciona correctamente.

    2 ajusta la perilla del potenciómetro azul (la rotación en el sentido de las agujas del reloj generalmente aumenta, la rotación hacia abajo en el sentido de las agujas del reloj) y alcanza con un multímetro para controlar el voltaje de salida requerido.

    Nota:

    Se recomienda utilizar horas largas de trabajo actuales en menos de 2.5A, mientras se añade volumen Disipador de calor (salida de 10 W arriba), porque es el módulo de reducción, para garantizar un conjunto de salida estable, mantén el diferencial mínimo de 1,5 V.

           -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

LM2596HVS-ADJ

It's LM2596HVS Not LM2596S Chip,please know it

Type /name:LM2596HVS DC-DCstep-down module
  • Input Voltage:4.5V ~ 50V
  • Output Voltage:3V ~ 40V
  • Output Current:3A (max)
  • Conversion efficiency:92%(the highest)
  • Output Ripple:<30mV
  • Switching frequency:150KHz
  • Operating Temperature:-45 ° ~ +85 °
  • Size:43mm * 21mm * 14mm (L * W* H)

Positive outputOUT +OUT-output negative

Input voltage range: DC4.5V to50V (inputvoltagemust be greater thanthe outputvoltageto1.5Vor morehigh.Could notboost)

Output voltage range: DC3Vto 40Vvoltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of3A.

Measured12V input, 5Voutputcurrent is 1Aload regulationrate of less than1%

Note: This is thestep-down module, the input voltagemust behigher than the outputvoltage.

Outputcurrent is greater than2.5A (or outputpower greater than10W)to work long hours, please addheat sink.

                 ---------------------------------------------------------------------------------------------------------------------------------

MT3608


MT3608 2A Max DC-DC Step Up Power Module Booster Power Module

Electrical Characteristics:

1. The Maximum Output Current: 2A.
2. The Input Voltage: 2V ~ 24V.
3. The Maximum Output Voltage: 28V.
4. Efficiency: Max 93%.
Mechanical Properties:
Product Size: 36 mm * 17 mm * 14 mm.
Method Of Use:
The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage.
Matters Needing Attention:
1. The input voltage should not exceed the maximum input voltage.
2. The peak current output current is no more than TV university.
When the module output voltage can not be adjusted, the output  voltage is always equal to the input voltage.Please adjust the potentiometer counterclockwise 20 laps or more. (Let potentiometer against your chest, counterclockwise turn boost)
 ---------------------------------------------------------------------------------------------------------------------------------
MP1584EN
Application

          DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply,  various right size and weight for demanding applications (such as aviation models, etc.).


1. Model Name:   Ultra-small DC-DC step-down module

2. Input voltage:  4.5-28V

3. Output Voltage:  0.8-20V

4. Output current:  rated current 3A(MAX).

5. Switching Frequency:  1.5MHz (highest), typical 1MHz

6. Output Ripple:  < 30mV

7. Efficiency:  96% (max)

8. Operating temperature:  -40 Celsius to +85 Celsius

9. Size:  22mm*17mm*4mm

 ---------------------------------------------------------------------------------------------------------------------------------

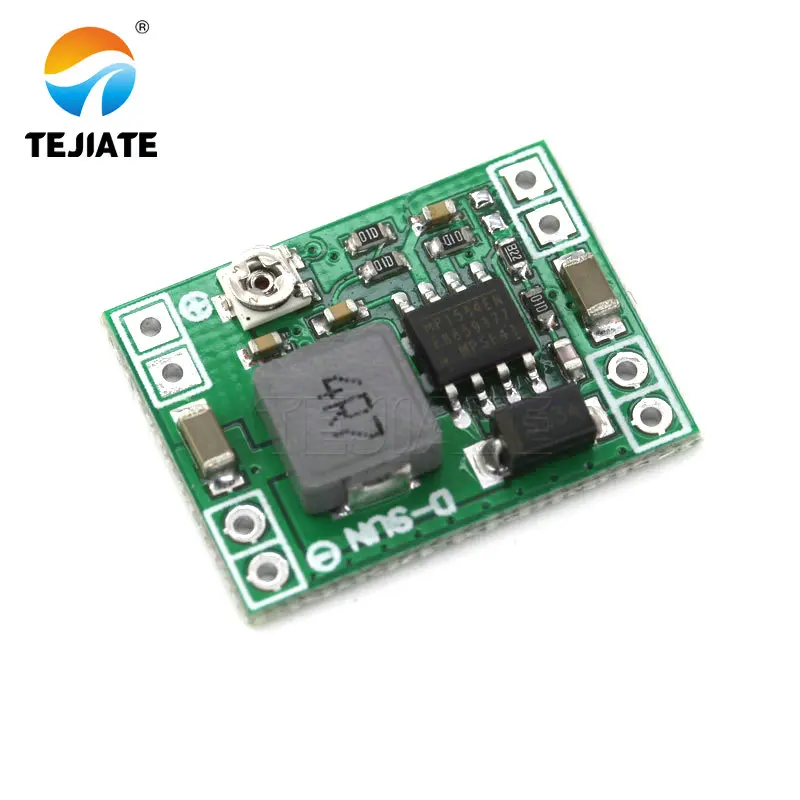

MP2307DN(MINI360)
Description

Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module

Module Properties: non-isolated buck

Rectification: synchronous rectification

Input voltage: 4.75V-23V

Output voltage: 1.0V-17V

Output Current: lowering the value of 3A, long 1.8A

Conversion efficiency: 96% (maximum)

Switching Frequency: 340KHz

Output ripple: 30mV (no-load)

Load regulation: ±0.5%

Voltage regulation: ±2.5%

Working temperature: -40 Centigrade to +85 Centigrade

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.

Package Include:

1 pcs Mini-360 DC-DC HM Buck Converter Step Down Power Supply Module

---------------------------------------------------------------------------------------------------------------------------------

XL4005 DC-DC Step Down Buck Power Supply Module Adjustable 5A LED Lithium Charger Original XL4005E1 24V 12V 9V 5V

Description

1.Input voltage: 5-32V

2.Output voltage: 1.25-30V adjustable

3.Output current: 0-5A, 0-3.5A recommended

4.Output power: 75W maximum, please add heat sink ifmore than 50W.

5.Working temperature: -40~+85 degrees

6.Operating frequency: 300KHz

7.Efficiency:92%(max)

8.Short circuit protection: yes(limit current 8A).

9.Over temperature protection

10.Input reverse polarity protection: None (if required, high current diode in series with the input).

11.L x W x H = 45 * 21 * 14mm

----------------------------------------------------------------------------------------------------------------------

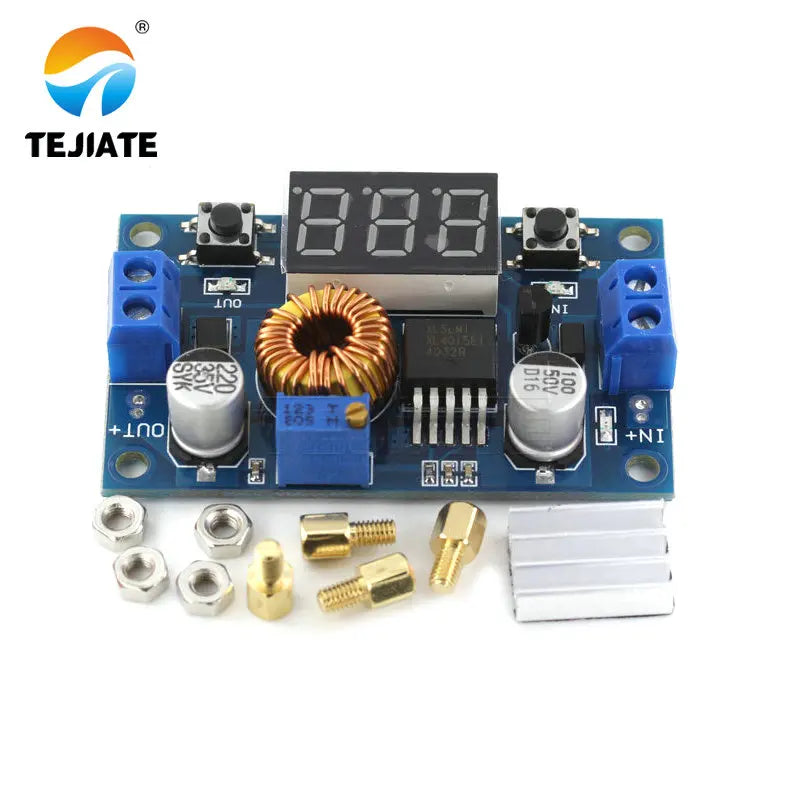

XL4015 5A DC-DC adjustable step-down module with a voltmeter
One: Product Description
This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter.
Features:
1. LED power indicator.
2. Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turned off by another button. Mentioned states are able to be memorized, is not lost even if the power is disconnected. (On-board marked "IN" LED is turned on, the nixie tube display input voltage value, "OUT" LED bright display is the output voltage value).
3. Special launch, the voltmeter calibration function, will never exist voltmeter inaccurate!
Voltmeter calibration method:
(1) Output voltage calibration steps
Step 1, adjust the right button so that "OUT" LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and "OUT" LED flashes in synchronization so that you enter the output voltage calibration mode.
Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.
Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.
(2) Input voltage calibration steps
Step 1, adjust the right button so that "IN" LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and "IN" LED flashes in synchronization so that you enter the input voltage calibration mode.
Steps 2 and 3, consistent with the output voltage calibration method.
Two: Performance parameters
1.Input voltage range:4~38VDC(Note:input voltage not exceeding 38V)
2.Output voltage range:1.25-36VDC adjustable
3.Output current: 0-5A
4.Output power: 75W
5.voltmeter range: 4 to 40V, error ±0.1V
6.Operating frequency: 180KHz
7.High efficiency up to 96%
8.Built in thermal shutdown function
9.Built in current limit function
10.Built in output short protection function
11.Input reverse polarity protection: None (if required, high current diode in series with the input).
12.L x W x H =6.6*3.9*1.8CM
Three: application
The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV,portable instrument power supply,telecom/networking equipment,24V vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.

----------------------------------------------------------------------------------------------------------------------
