SKU: 00220

(0)

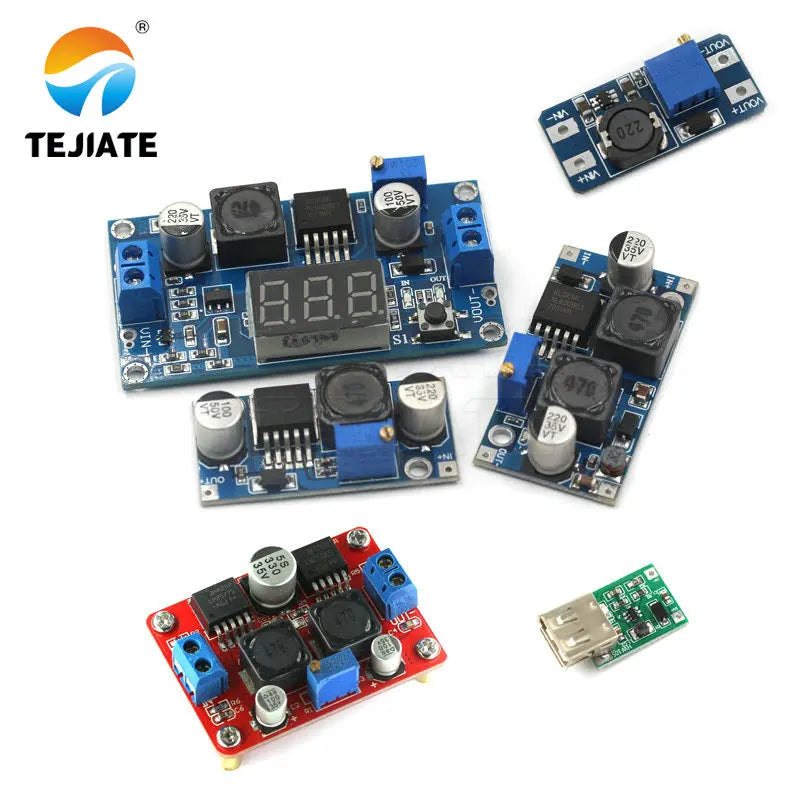

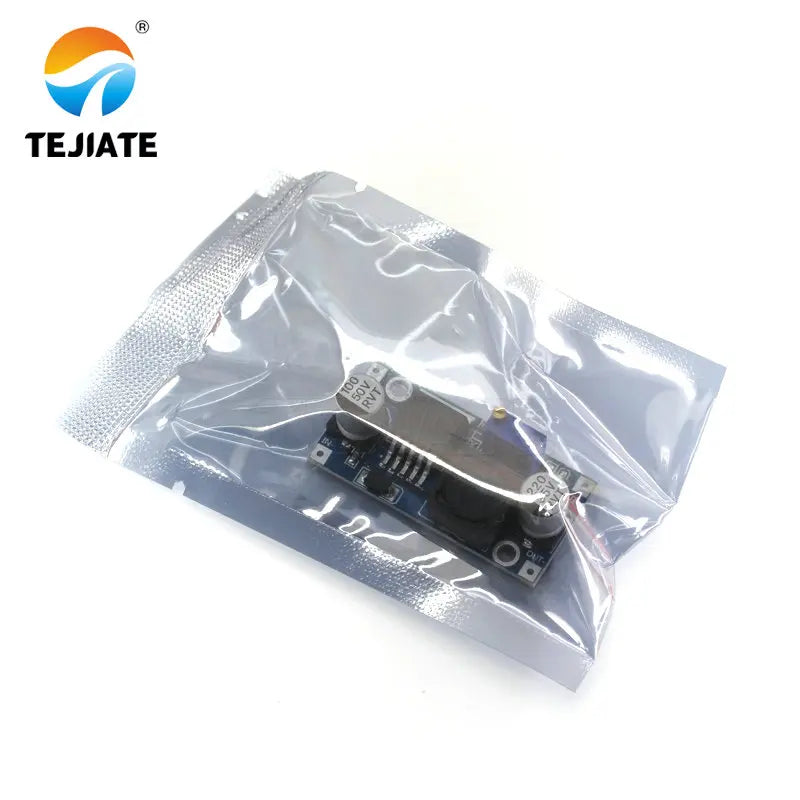

DC-DC Boost Buck Adjustable Step Up Down Converter XL6009 Power Supply Module 20W 5-32V to 1.2-35V USB diy kit MT3608

TEJIATE/特加特

In stock

¥0.80

Color

MT3608 LM2596S LM2577S USB XL6009 XL6009 With display Automatic voltage

Secure checkout

Friendly support

Hassle-free returns

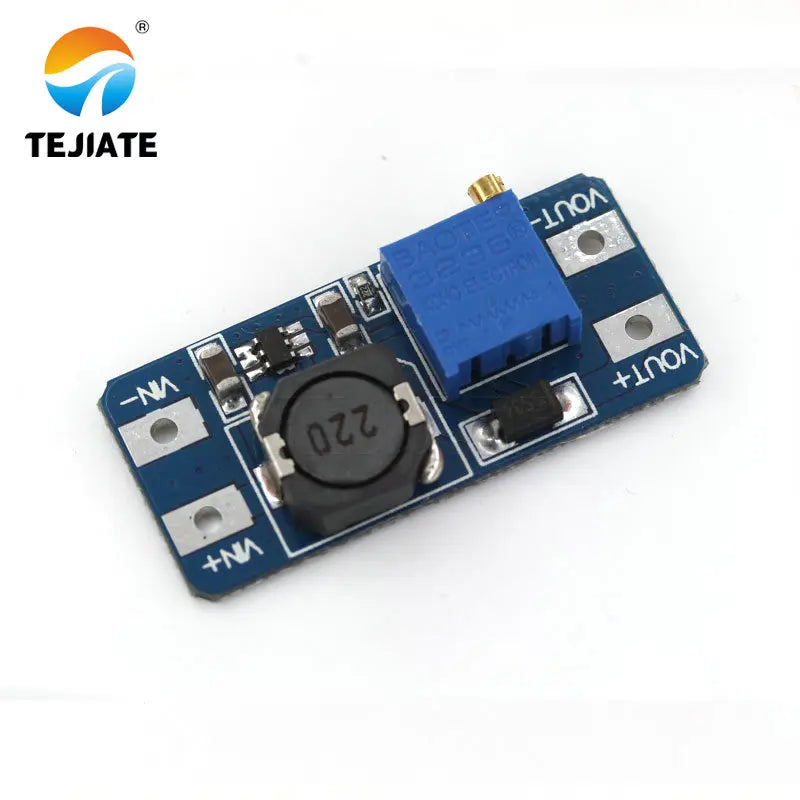

1.Electrical characteristics
1). The maximum output current: 2 a
2). The input voltage: 2 v ~ 24 v
3). The maximum output voltage: 28 v
4). Efficiency: ＞93%

2.Mechanical properties
1). product size: 36 mm X 17 mm X 14 mm

3.Method of use
The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage

4.Matters needing attention
1). The input voltage should not exceed the maximum input voltage
2). The peak current output current is no more than TV university

-------------------------------------------------------------------------------------------------------------------------------------------------------

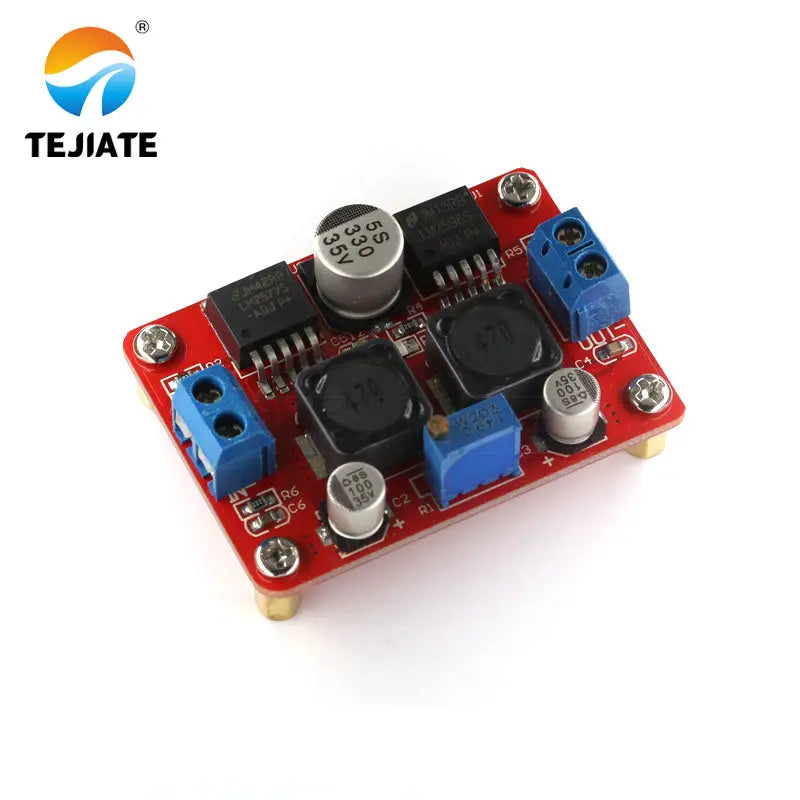

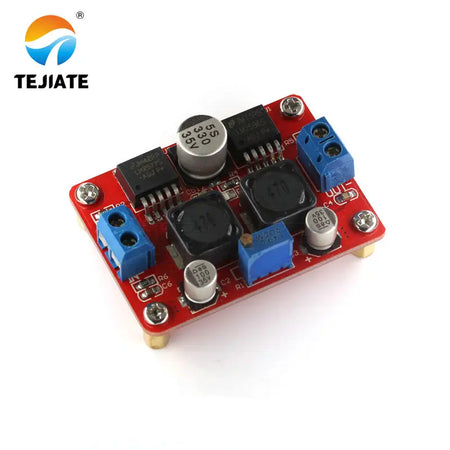

NOTE: This module isstep-up andstep-downconverter and integrates LM2596 and LM2577.

Features:

In+:Input positive
In-: Input negative
Out+: Output positive
Out-:Output negative
Size:53x38x21 (length*width*height)(mm)
Color: As the picture sho
Input voltage: 3.5-28V
LED Indicator :YES
Output voltage: 1.25-26V(Adjustable)
Input current: Rated current is 1A
Output current: Rated current is 1A
----------------------------------------------------------------------------------------------------------------------------------------------------

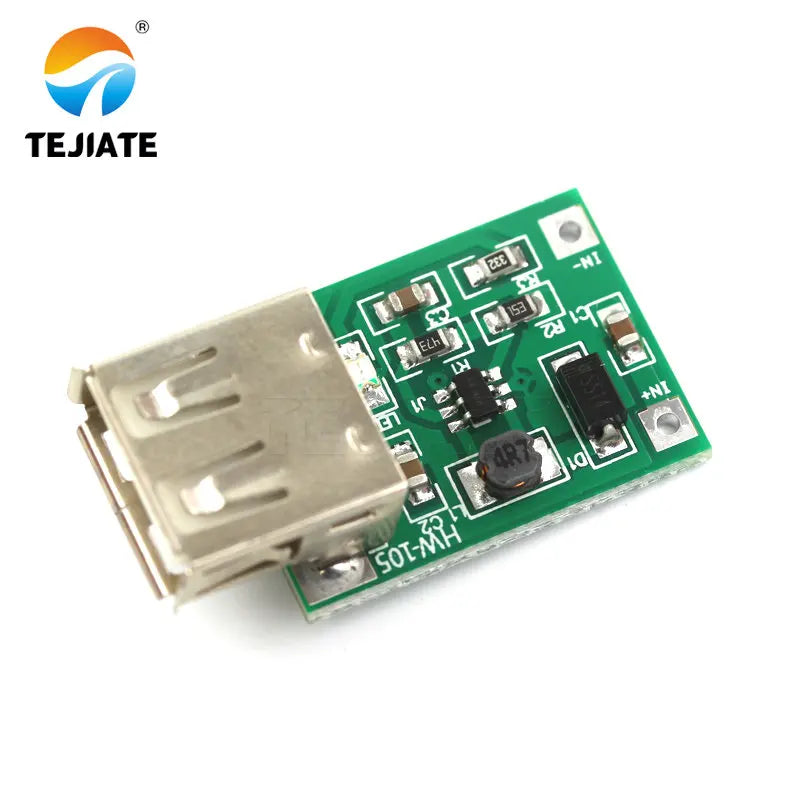

Characteristic 1. This module adopts high performance imported chips. Its performance is better than that of general module 2. It can input 0.9_5V arbitrary DC voltage. It can stably transmit 5_DC voltage. It can output up to 200300MA current with a single AA battery, and 500-600MA current with two A battery. It can be used for your mobile phone, camera and single chip computer. Power supply for digital products

3. Industrial-grade temperature range: - 40 ~85

4. Conversion efficiency, up to 96%.

5. USB base, widely used

6. Small volume (PCB board 25mm*18mm), for installation in various small equipment

7. Working indicator
------------------------------------------------------------------------------------------------------------------------------------------------------------------
XL6009

IN-IN + input Positive Input Negative!
Positive output OUT + OUT-output negative

Test comparison sample reference:
Input 3V Output 12V 0.4A 4.8W
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W

Vin * Iin * Efficiency = Vout * Iout

Vin: Input Voltage
Iin: input current
Vout: Output Voltage
Iout: output current

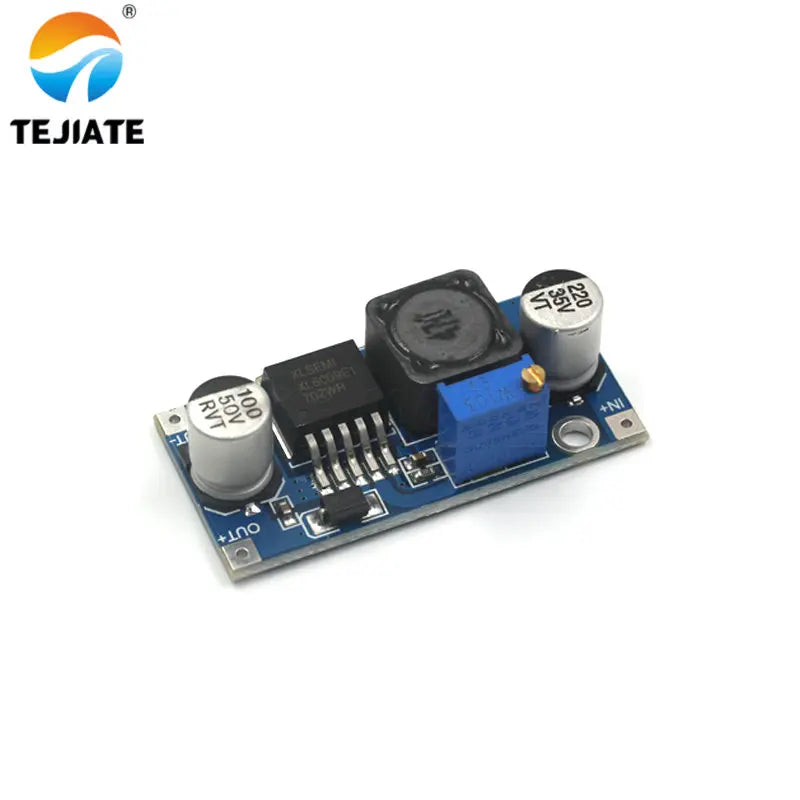

DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance, LM2577 module is about to be eliminated.

● Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
● Wide Output voltage 5V ~ 35V;
● Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
● high switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz)

Technical parameters:

Model Specification
DSN6009 boost module
Module Properties
Non-isolated boost (BOOST)
Rectification
Non-Synchronous Rectification
Input Range
3V ~ 32V
Output Range
5V ~ 35V
Input Current
4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
Conversion efficiency
<94% (greater the pressure, the lower the efficiency)
Switching frequency
400KHz
Output Ripple
50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation
± 0.5%
Voltage Regulation
± 0.5%
Operating Temperature
-40 ° ~ +85 °
Dimensions
43mm * 21mm * 14mm (L * W * H)
--------------------------------------------------------------------------------------------------------

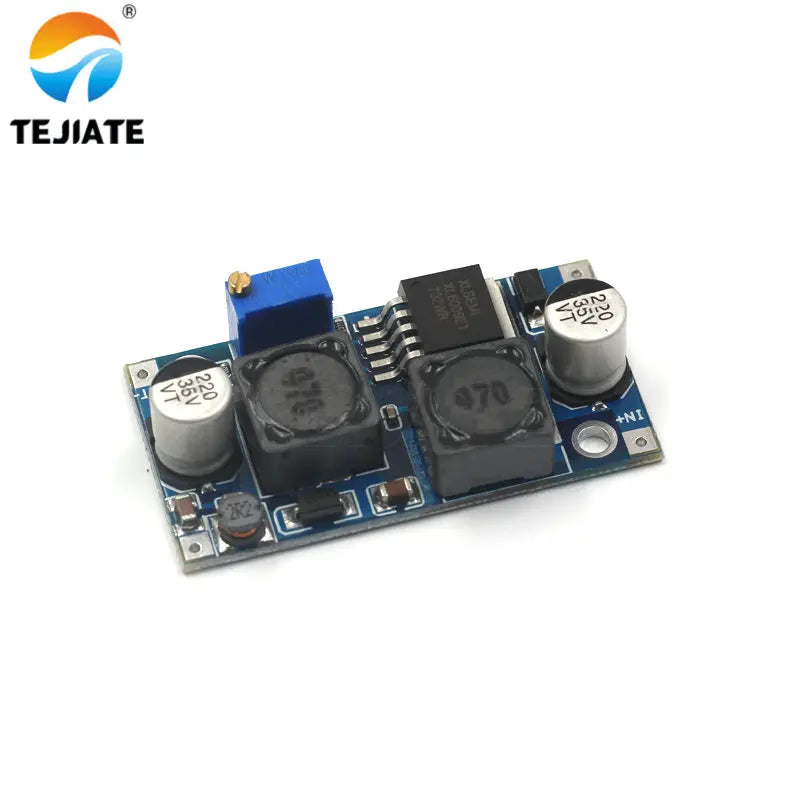

Automatic Buck module

Technical parameters

Model Specification:Automatic Buck module

Module Properties:Non- isolated boost (BOOST)

Rectification:Non- Synchronous Rectification

Input Range:3.8V- 32V

Output Range:1.25V-35V

Input Current:3A ( max ),no-load 18mA (5V input , 8V output, no-load is less than 18mA. Higher the voltage , the greater the load current . )

Conversion efficiency:<94% ( greater the pressure, the lower the efficiency)

Switching frequency:400KHz

Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )

Load Regulation:± 0.5%

Voltage Regulation:± 0.5%

Operating Temperature:-40 -+85

Dimensions:48mm * 25mm * 14mm ( L * W * H )
-----------------------------------------------------------------------------------------------------------------------------------------------------------------

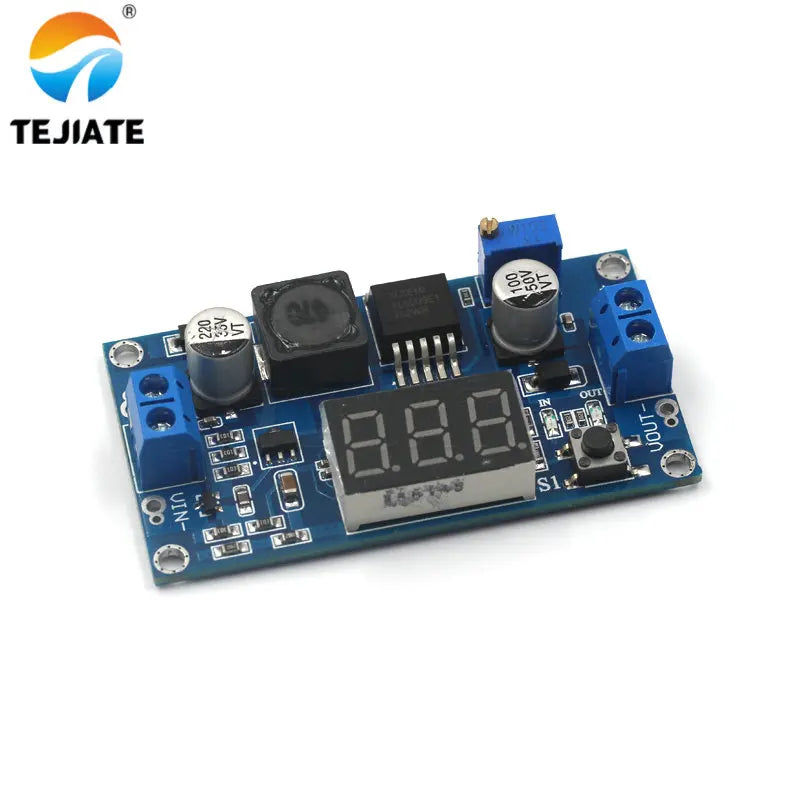

XL6009 With display
Description:
- Module Feature: Non-isolation booster
- - Mode of rectification: non-synchronous rectifier
- - Input voltage: 4.3V-32V
- - Output voltage: 5V-52V
- - Input current: 4A(maximum)
- - Transfer efficiency: 94% (The highest), Normal efficiency: 85%
- - Switching frequency: 400KHz
- - Output ripple: 50mV
- - Load regulation:± 0.5%
- - Voltage regulation:± 0.5%
- - Operating temperature: -40 Centigrade ~ +85 Centigrade
- - Size:6.98mm (L) *3.80mm (W)
