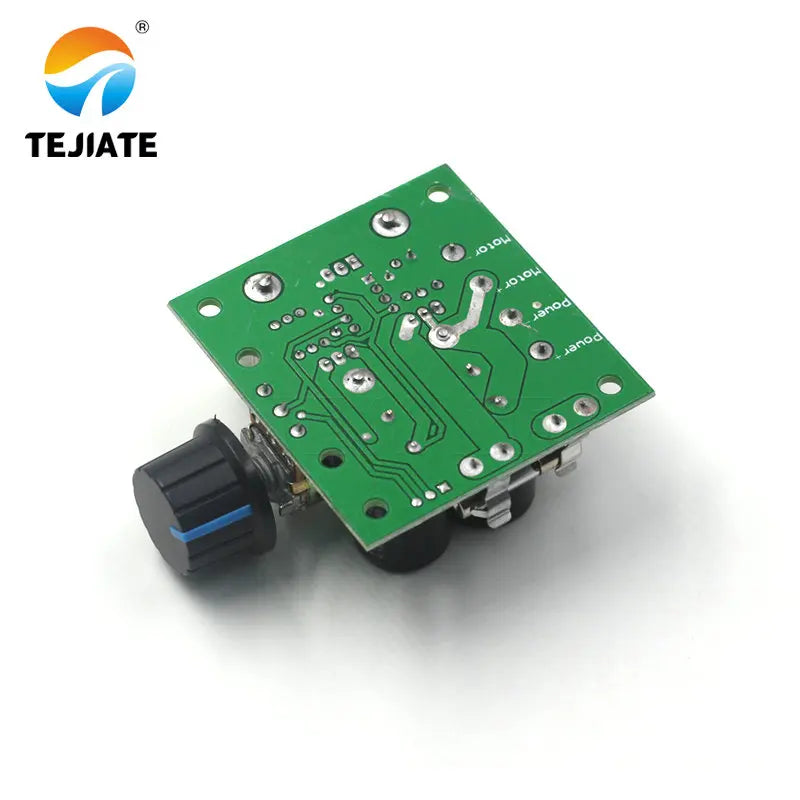

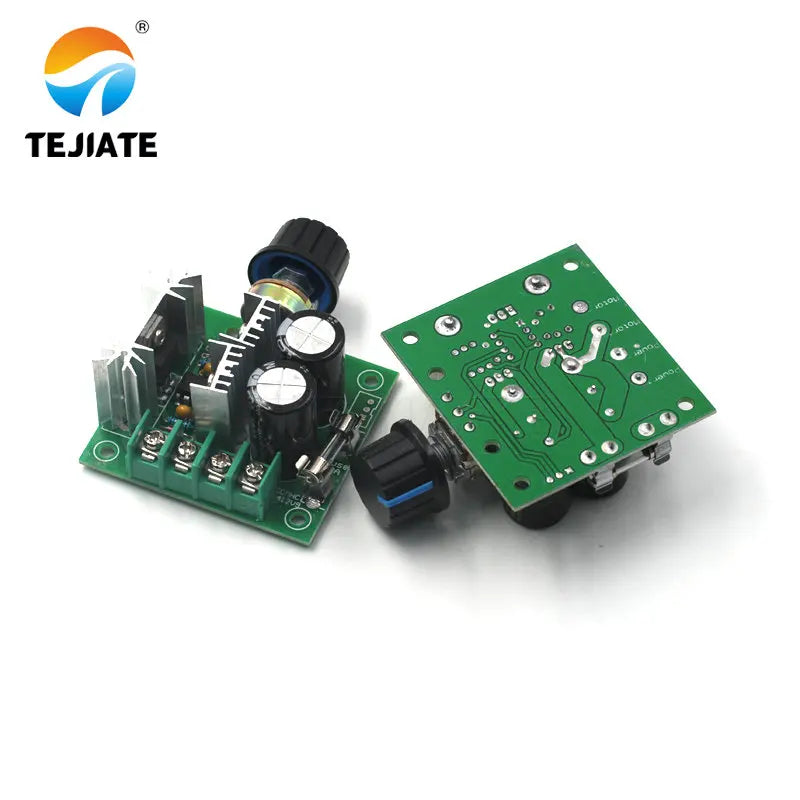

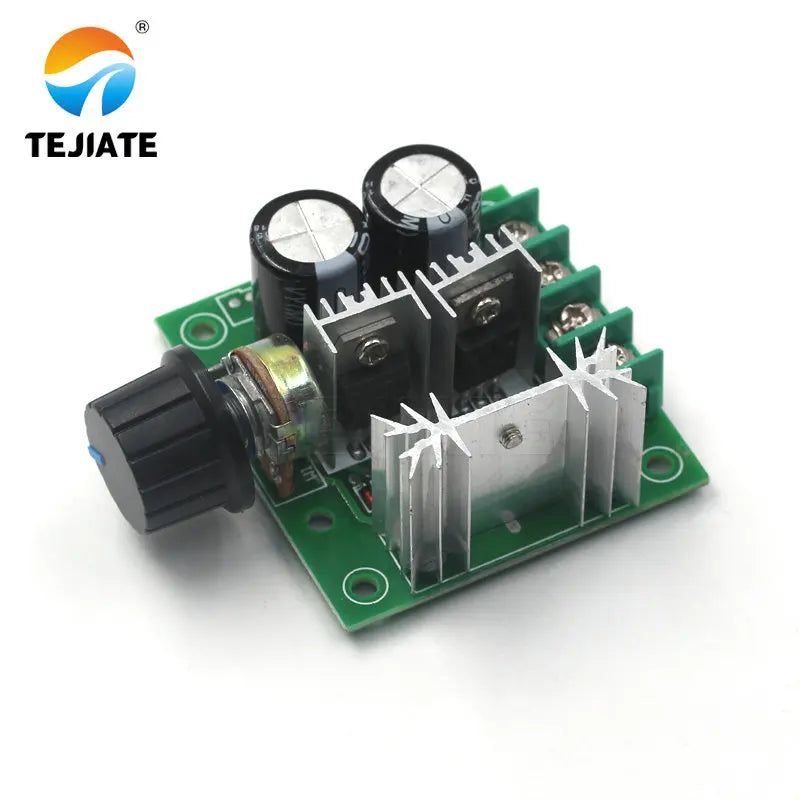

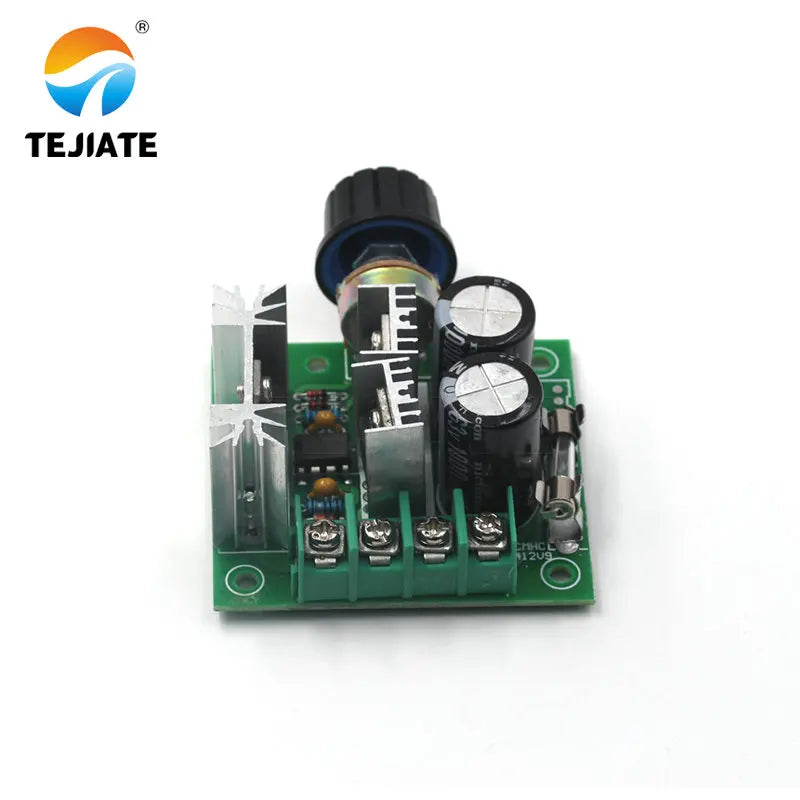

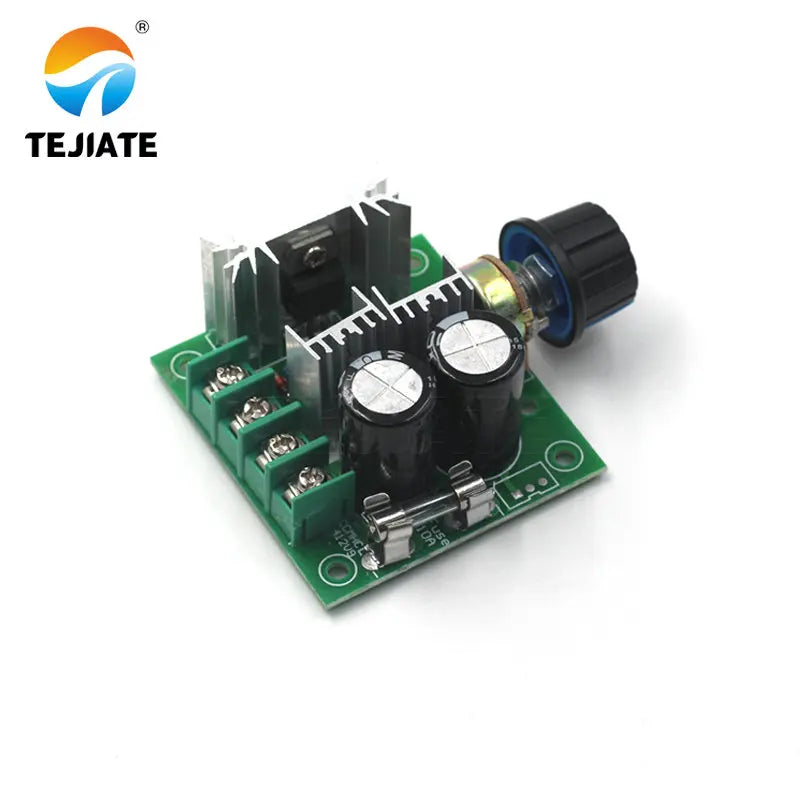

DC 12V~40V 10A 13kHz PWM Motor Speed Control Switch Controller Volt Regulator Dimmer Electrical PCBA Assembly DC Motor Boards

• Feature:
• The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load.
• The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.
• Specifications:
• 100% brand new and high quality.
• Input supply voltage: DC 12V-40V
• The maximum output power: 400W
• The maximum continuous output current :8A
• The overload and short circuit protecting current is 10A
• Static Current:0.02 A ( Standby )
• PWM frequency: 13kHz
• Duty Cycle adjustable: 10%-100%
• The operation environment temperature:-20-40℃
• The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function
• Size: (L*W*H): 6*5.5*2.8cm(approx)
• Net weight: 69g
• Package Include:
• 1 * 12V - 40V 10A DC Motor Speed Controller
• NOTE:
• This can NOT be used to the BRUSHLESS motor.
• The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with wrong polarity.
• Double check all connections before applying power and always turn off the power supply before making any wiring changes.
• Please allow slight deviation for the measurement data
