SKU: 01158
(0)

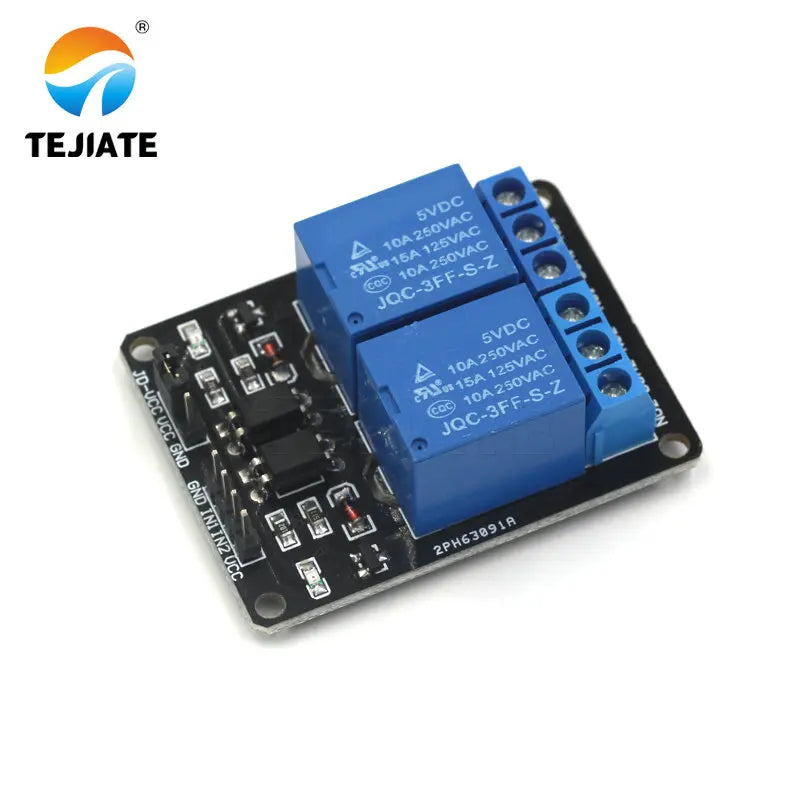

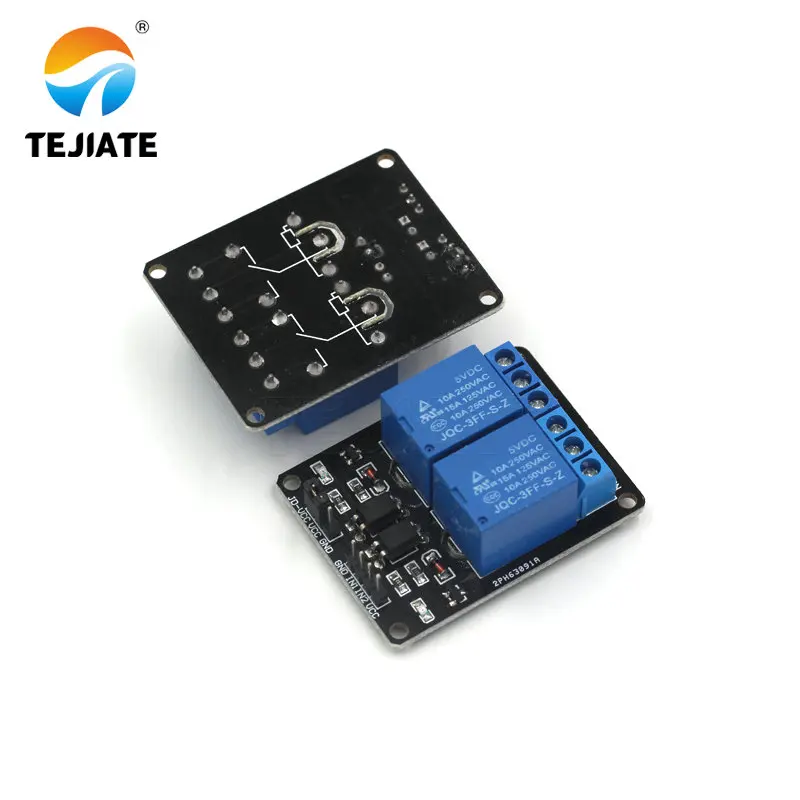

5V12V24V 2 Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic .We are the manufacturer 2-way relay module

TEJIATE/特加特
In stock
¥1.49
Size

Secure checkout

Friendly support

Hassle-free returns

2-way relay module with opto

Module Parameters:

1 Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)

2 Weight:. 31g

3.PCB Color: Black

4 board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed

5 relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal

6 optocoupler isolation, good anti-jamming


7 low pull, high release. Energisation status indicator light, release status LED is off

8.VCC of system power, JD_VCC relay power. You can plug in jumpers

Electrical parameters:
Supply voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC


Wiring:

VCC: positive power supply system

GND: System power negative

IN1 - IN2: relay control ports
