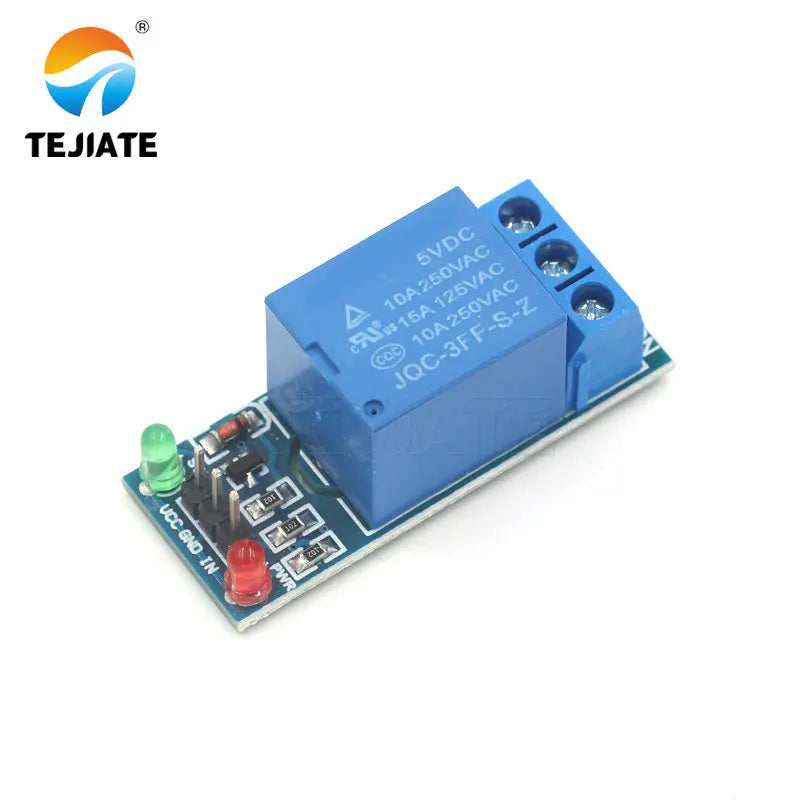

5V/12V/24V low level trigger One 1 Channel Relay Module interface Board Shield Blue

TEJIATE/特加特
In stock
¥0.64
Size

Secure checkout

Friendly support

Hassle-free returns

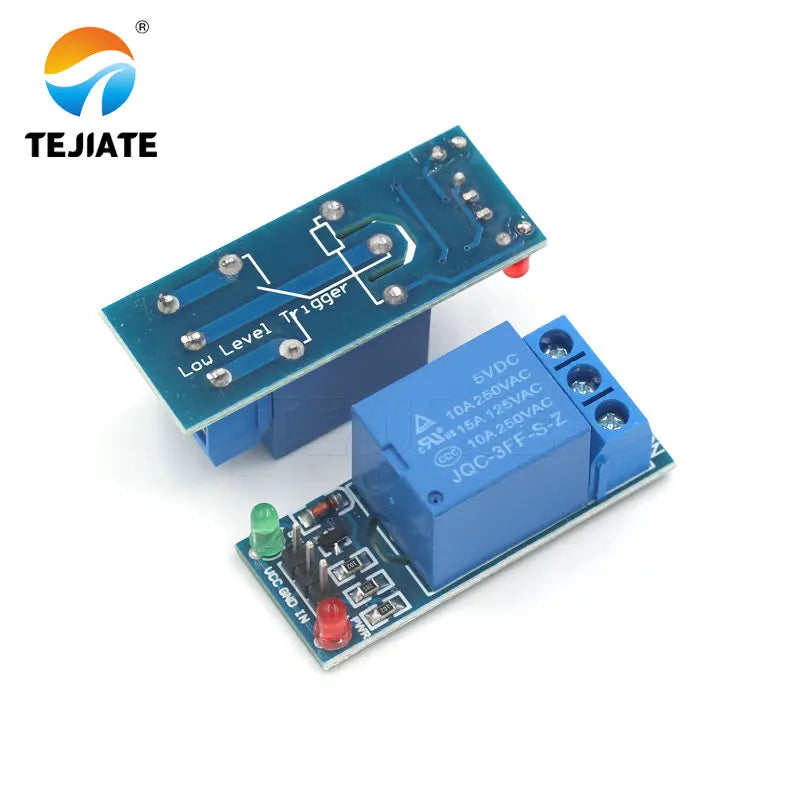

1 Channel Low level trigger：

The module uses genuine quality relay, normally open interfaces

Using SMD optocoupler isolation, driving ability, stable performance

The module can be high or low by a jumper setting trigger

Fault-tolerant design, even if the control line is broken, the relay will not operate

The power indicator (green), the relay status indicator (red)

The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient


Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA

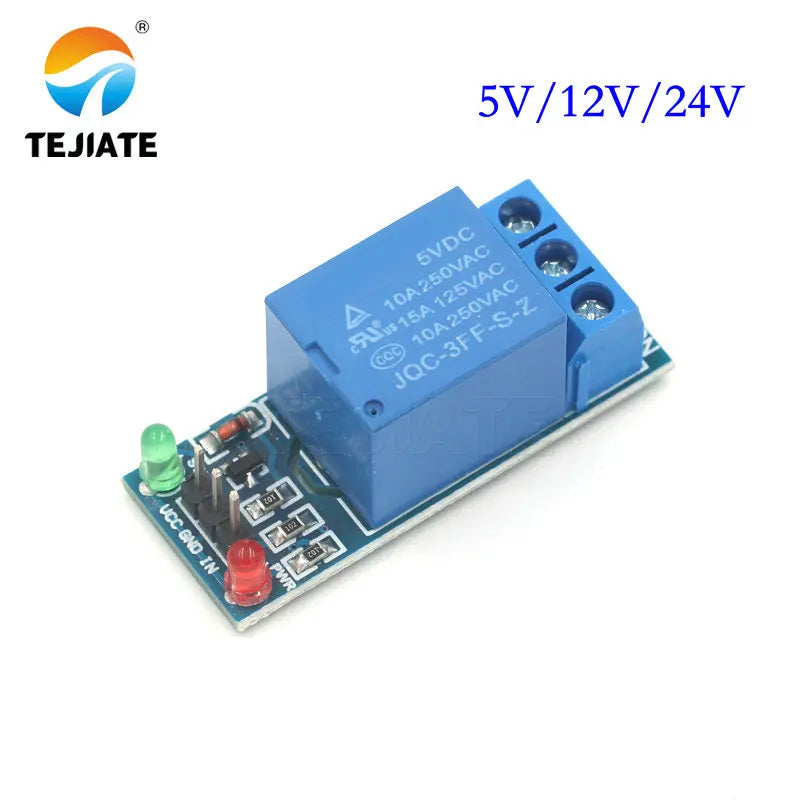

Working voltage: 5V/12V/24V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
