SKU: 06189-5
(0)

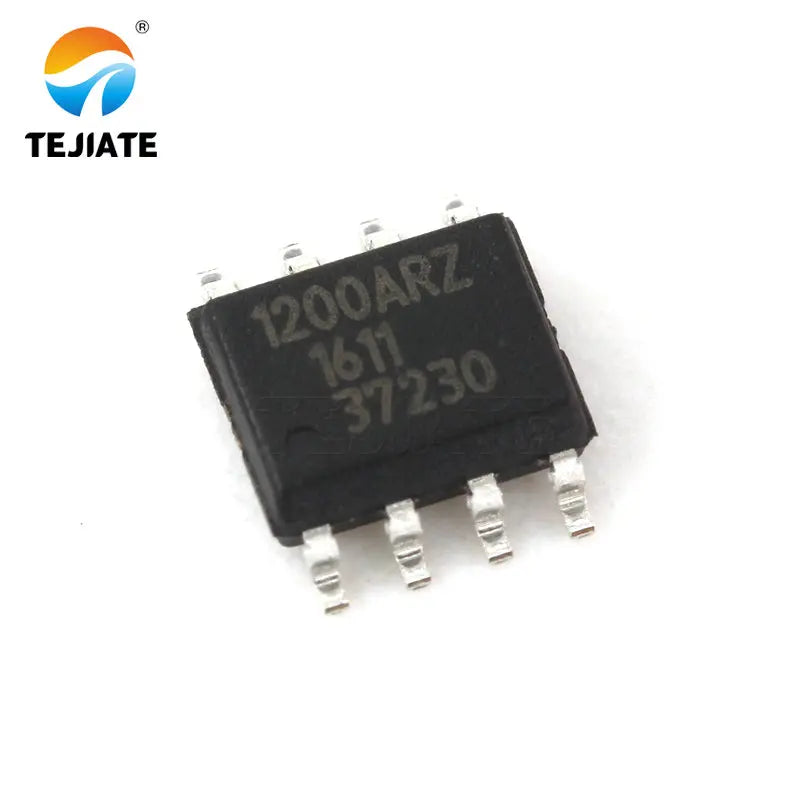

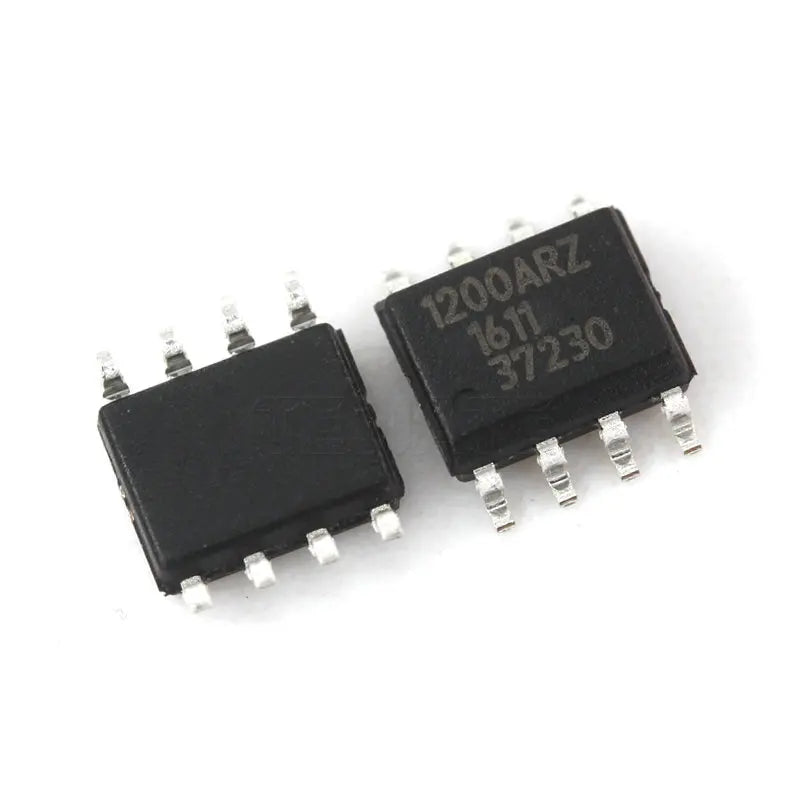

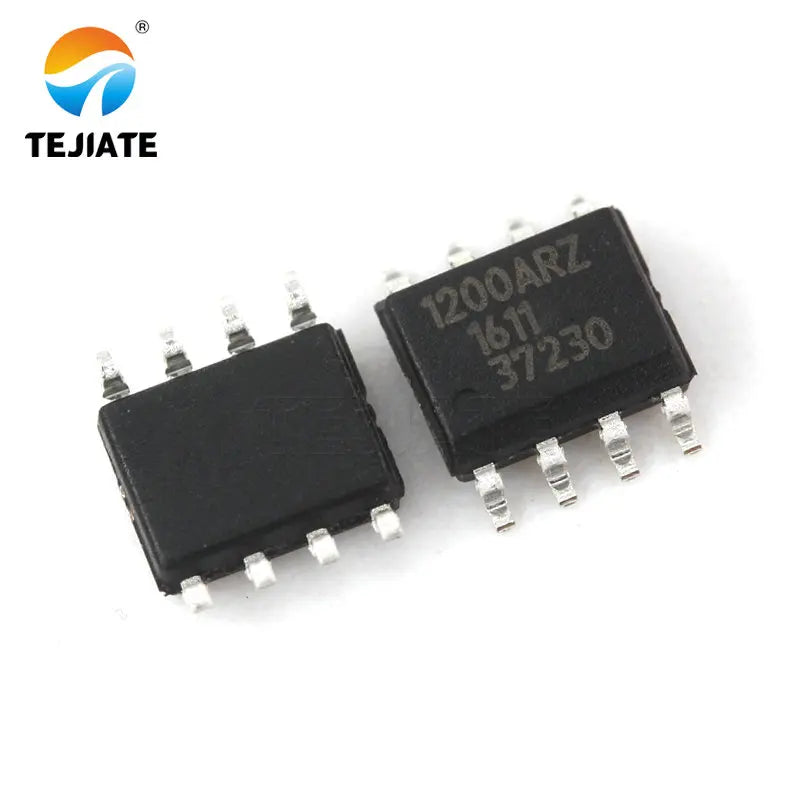

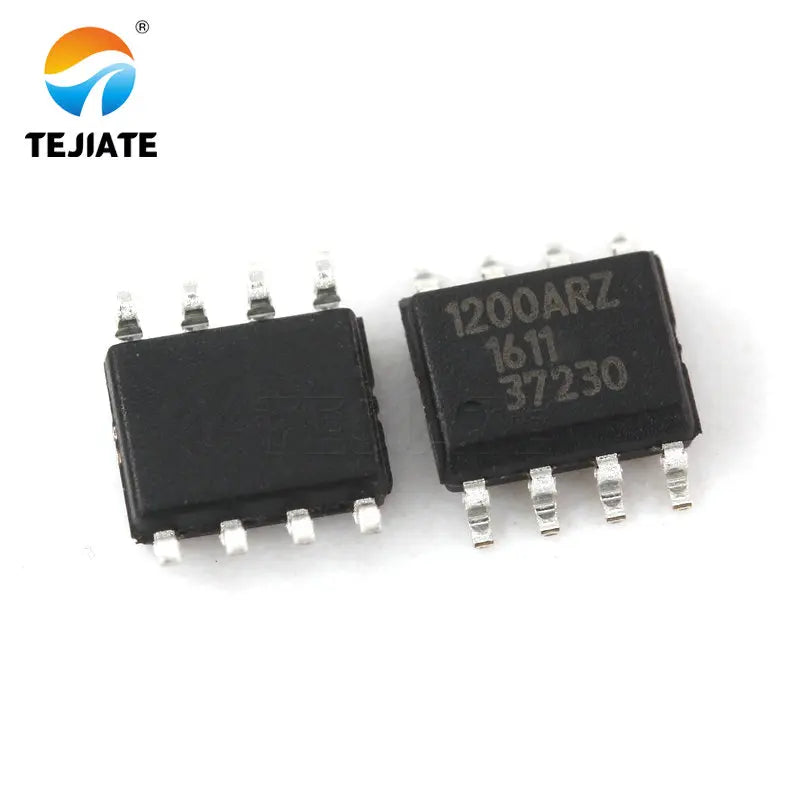

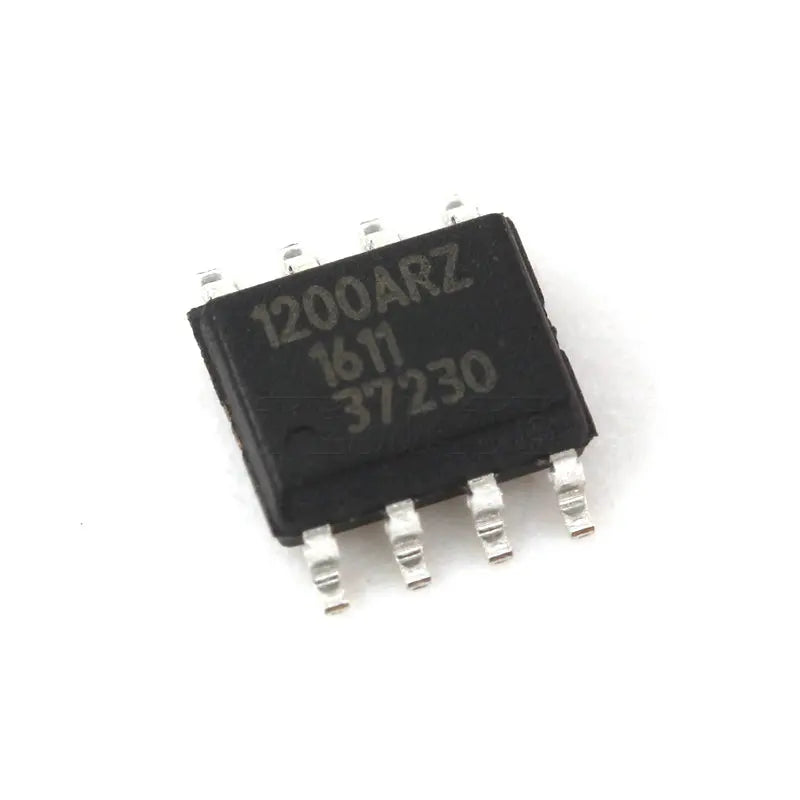

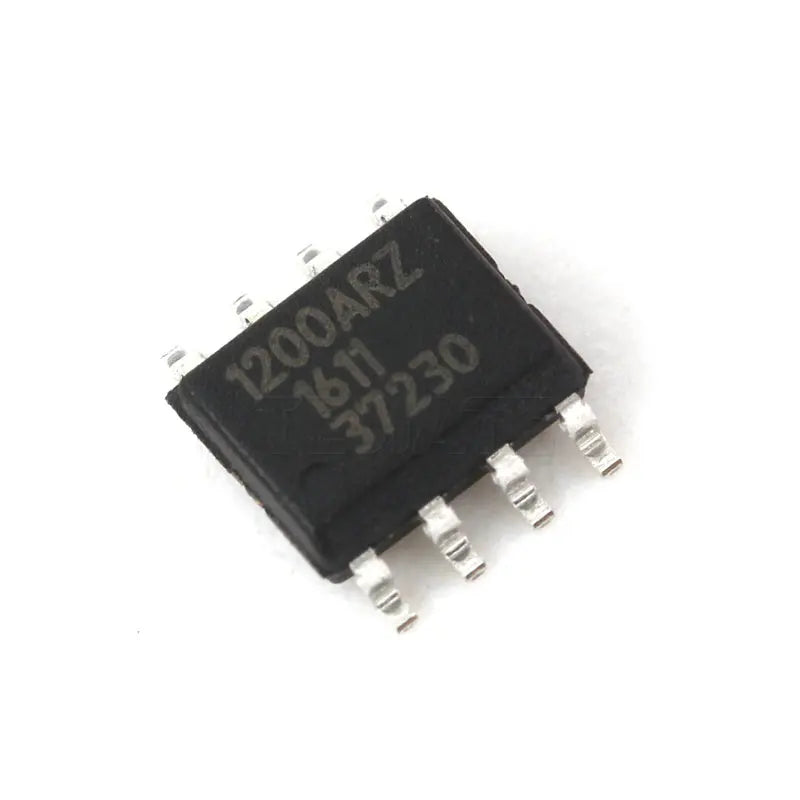

5PC/lot ADUM1200ARZ-RL7 1200arz sop-8 Dual Channel Digital Isolator

TEJIATE/特加特
In stock
¥3.85

Secure checkout

Friendly support

Hassle-free returns

Parameter specification of adum120oarz-rl7
Data list adum1200,01
Standard package 1000
Packaging standard tape
Part status active
Category isolator
Product family Digital Isolator
Series icoupler
Other name:
ADUMI200ARZ-RL7-ND
ADUMI200ARZ-RL7-TR
ADUMI200ARZRL7
Technical magnetic coupling
General type
Isolated power supply none
Number of channels 2
On input side 1 / input side 2 2 / 0
Channel type unidirectional
Voltage isolation 2500vrms
Common mode transient immunity (minimum 25kV / HS)
Data rate 1Mbps
Propagation delay tPLH / tPHL
(max. 150ns, 150ns)
Pulse width distortion (maximum) 40ns
Rise / fall time typical value 10ns, 10ns voltage - power supply 2.7v5.5v
Operating temperature - 40 ° c105 ° C
Installation type surface mount type
Package / enclosure
8-s0ic (0.154 ", 3.90mm wide)
Supplier device package 8-s0ic
.06189.ADUM1200ARZ-RL7
ADUM1200ARZ（2）._1 ADUM1200ARZ（1）._1
