SKU: 14510
(0)

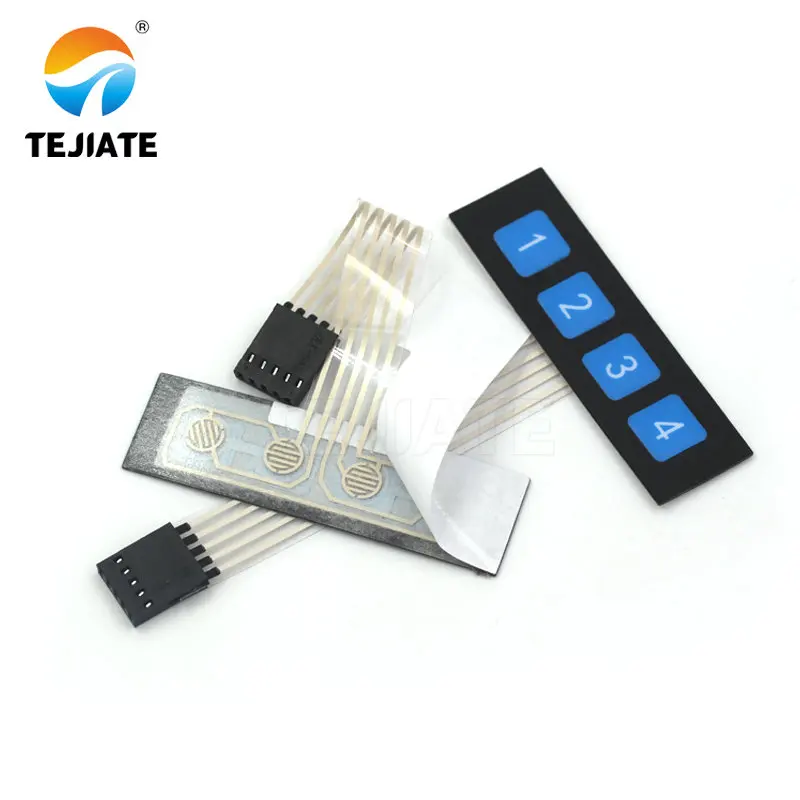

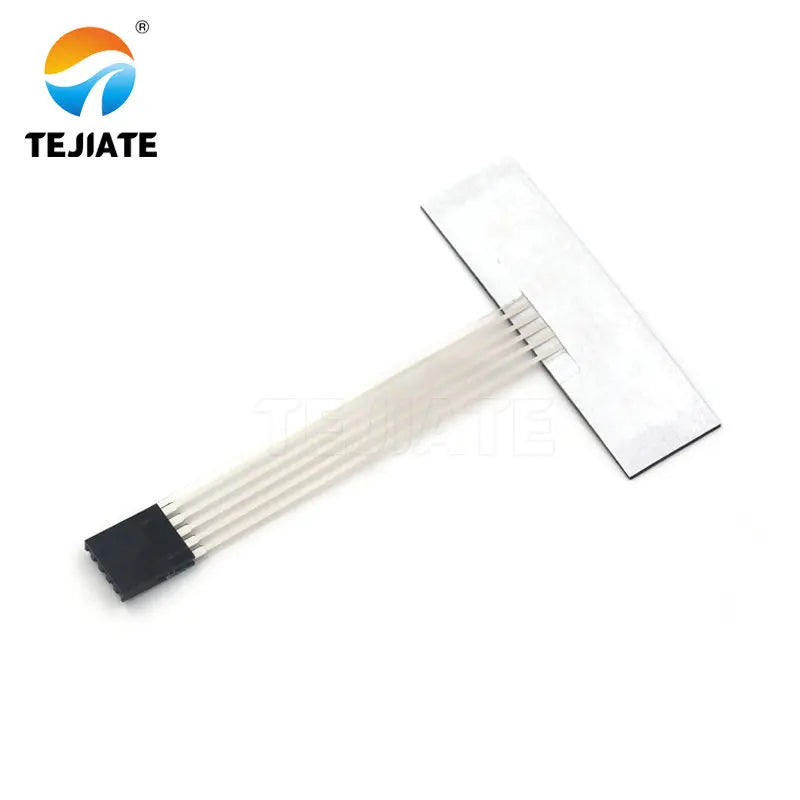

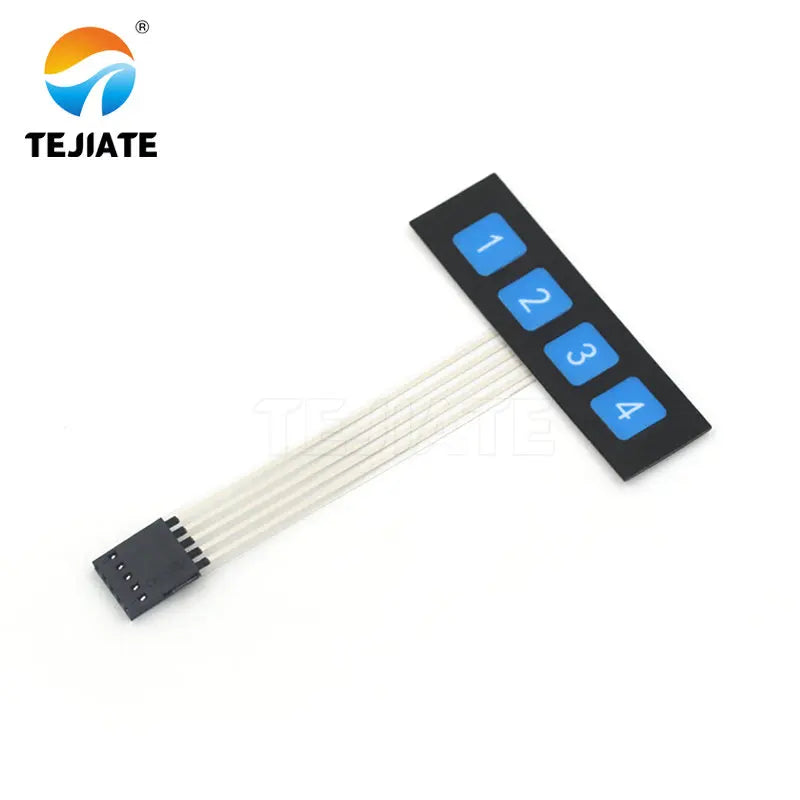

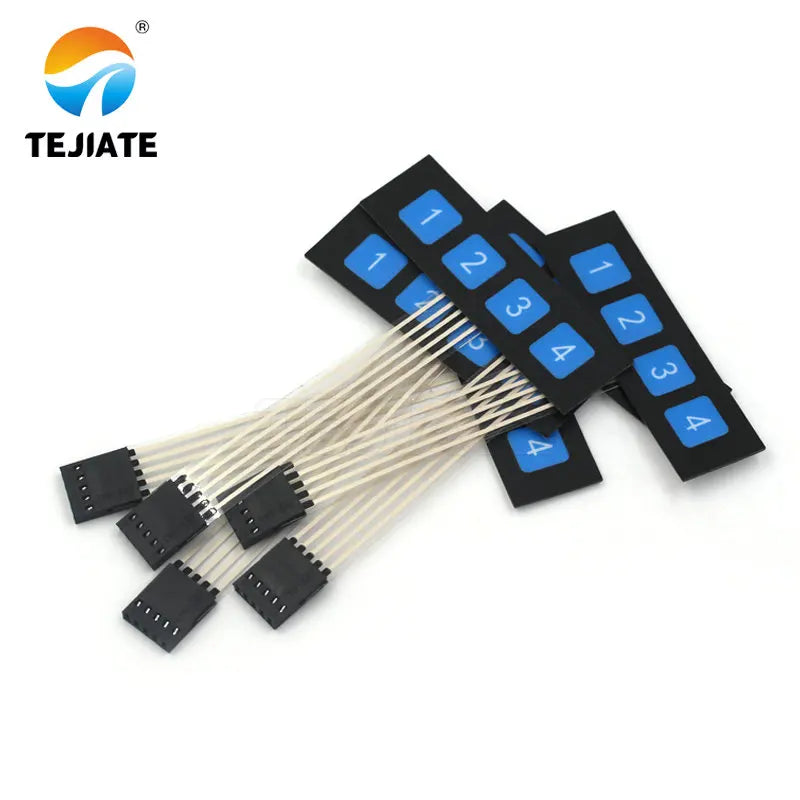

4 Key Matrix Membrane Switch Keypad Keyboard Control Panel SCM Extended Keyboard 1x4

TEJIATE/特加特
In stock
¥0.64
Color

Secure checkout

Friendly support

Hassle-free returns

2. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Standard square resistance: ≤ 50 mΩ / mouth / mil
Contact resistance: 10Ω-500Ω (with lead length and material change)
Insulation resistance: 100MΩ 100V
Dielectric withstand voltage: 250V Rms (50-60Hz 1min)
Contact jitter time: ≤ 5ms

3. Mechanical properties
Operating pressure: metal shrapnel type 220-350g
Switch travel: metal shrapnel type 0.6-0.8mm

4. Environmental parameters
Storage temperature: +15 Celsius - +35 Celsius
Storage Humidity: 70% -90%
Test temperature: - - 0 Celsius - + 60 Celsius 16H
Test humidity: 90% 16H
Vibration: 20G's msx. (10-200Hz, MIL -STD-202, M204, Condition B)

5. Material properties
Line thickness: ≤ 0.13MM
Life: Metal shrapnel type less than 100,000 times
Flat touch-type less than 30 million times
Film button type less than 500,000 times
