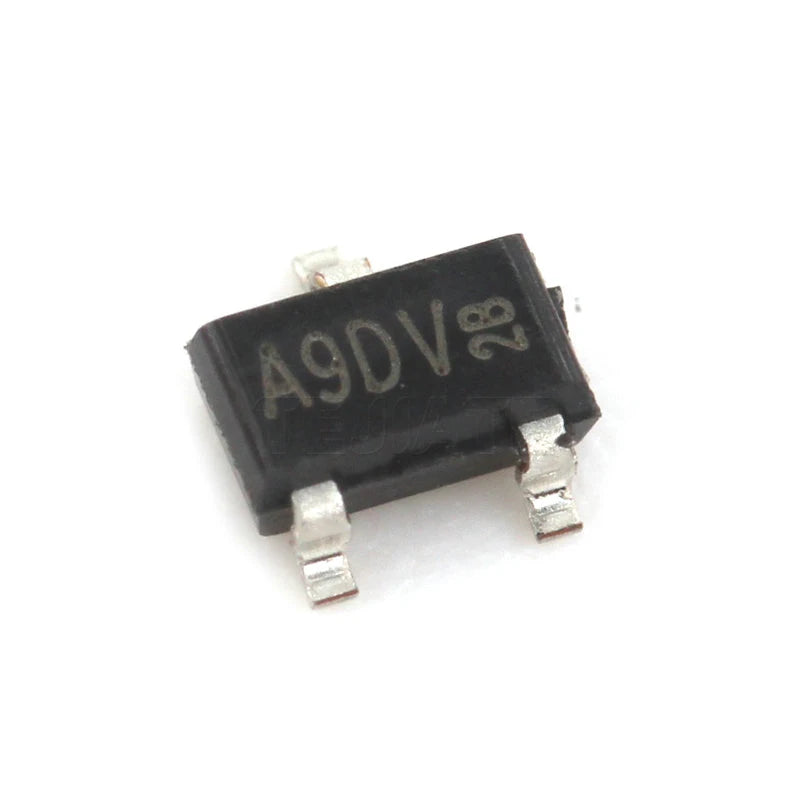

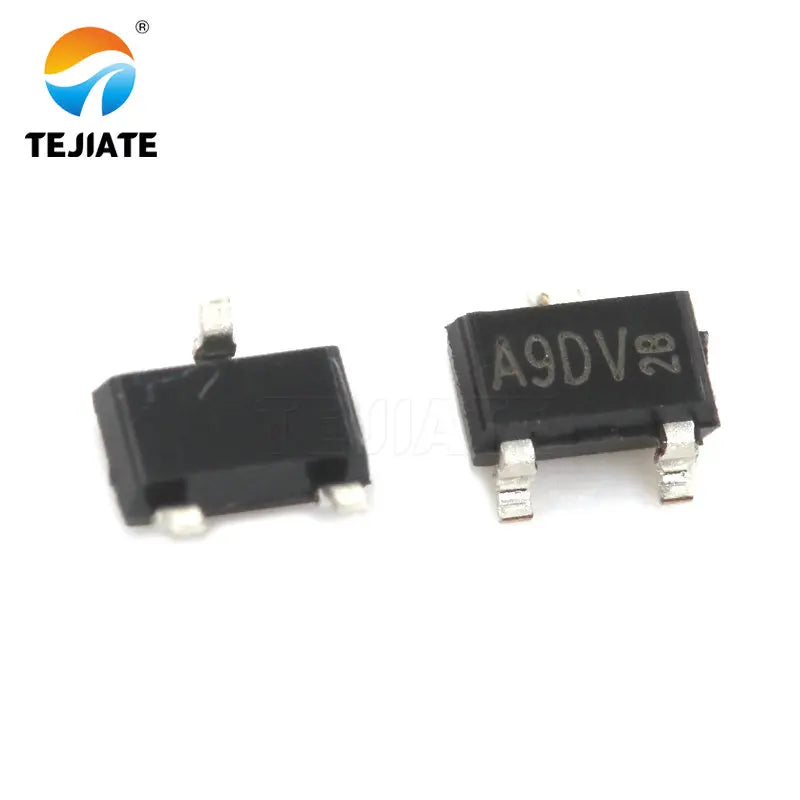

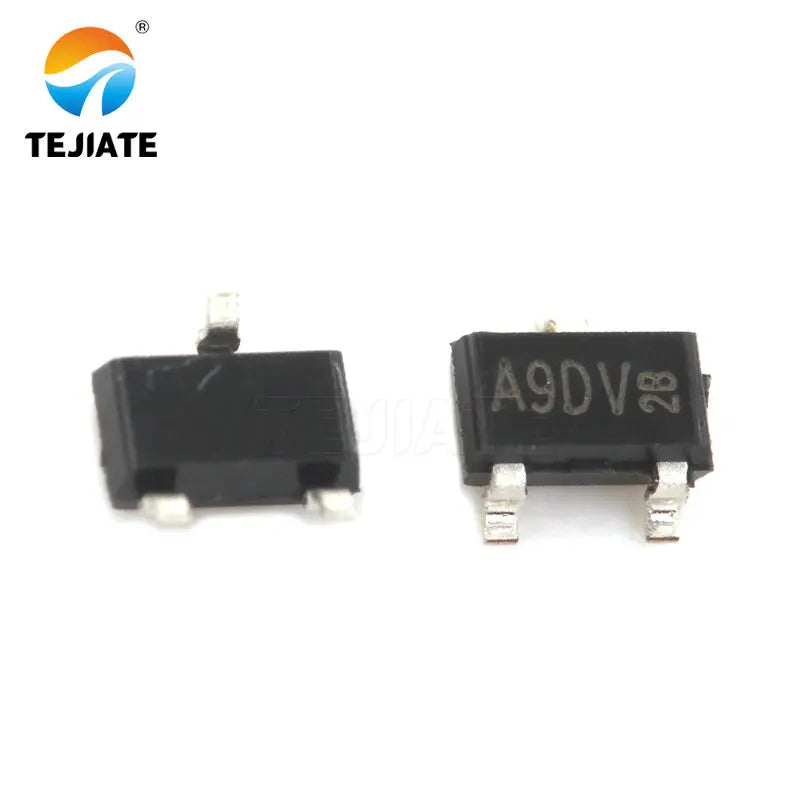

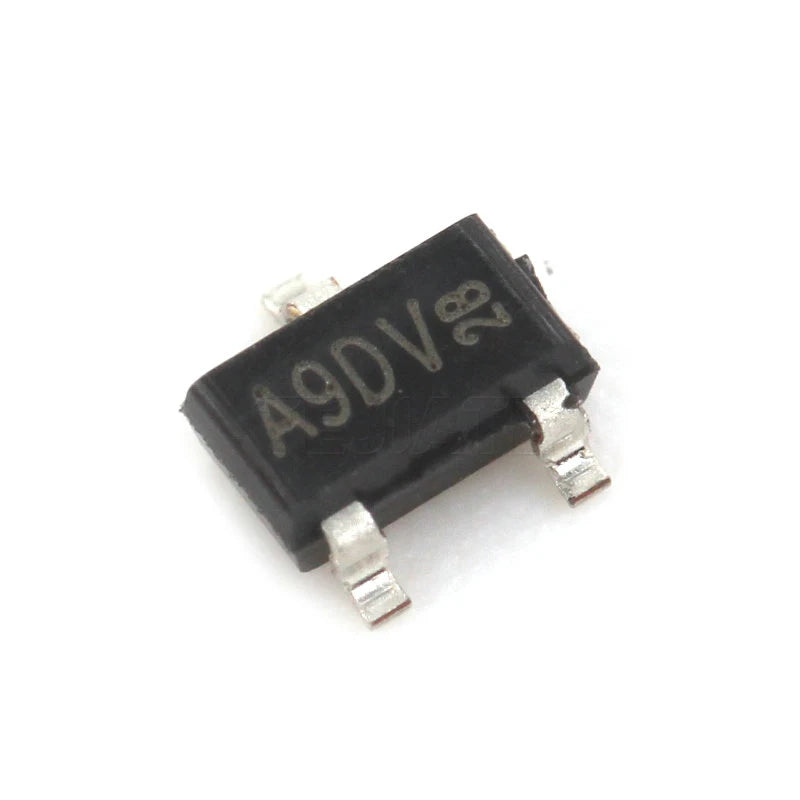

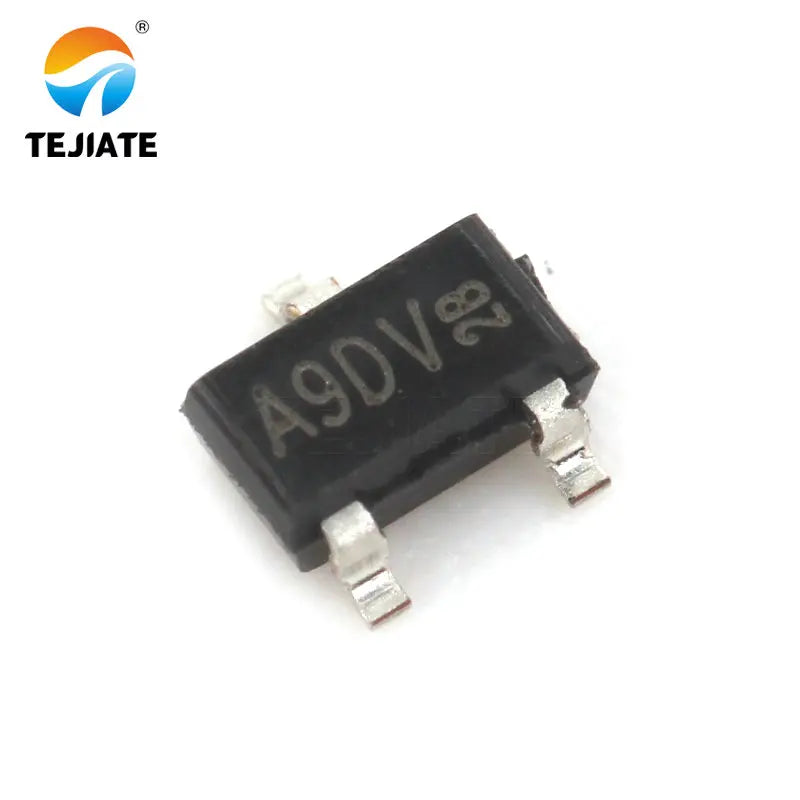

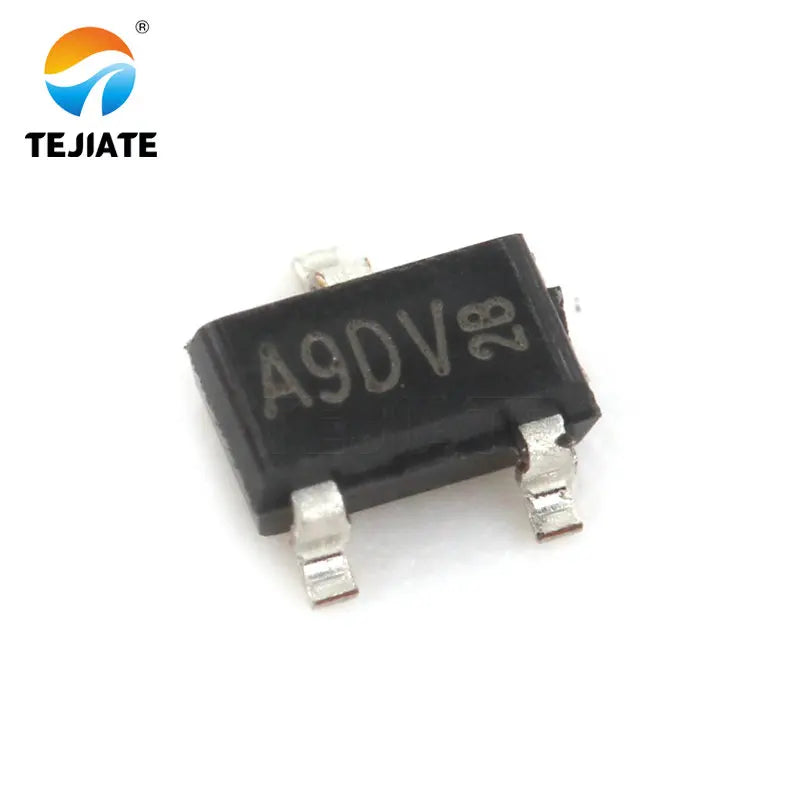

AO3409 Parameter specification:

Lead free compliance / RoHS compliance: lead free / RoHS compliance

Moisture sensitivity level (MSL): 1 (unlimited)

Manufacturer's standard lead time: 16 weeks

Series: -

Packaging: shear band (CT), roll (TR)

Part status: on sale

FET type: P channel

Technology: MOSFET (metal oxide)

Drain source voltage (VDSS): 30V

Current - continuous drain (ID) (at 25 ° C): 2.6a (TA)

Driving voltage (maximum RDSON, minimum RDSON): 4.5V, 10V

VGS (th) with different ID (maximum): 3V @ 250 μ a

Gate charge (QG) at different VGS (maximum): 9NC @ 10V

Input capacitance (CISS) at different VDS (maximum): 370pf @ 15V

Gate source voltage vgss: ± 20V

FET function:-

Power dissipation (maximum): 1.4W (TA)

RDSON at different ID and VGS (maximum): 130 milliohm @ 2.6a, 10V

Working temperature: - 55 ° C ~ 150 ° C (TJ)

Mounting type: SMT
