20PCS 74HC595D 74HC595 SOP16 SOP SN74HC595DR SMD New original

TEJIATE/特加特
In stock
¥2.90

Secure checkout

Friendly support

Hassle-free returns

39479

Electronic Components


Overview sM74HC595 is a high speed CMOS device, 74Hc595 pin compatible low power Schottky TTL (LSTTL) series.
SM74HC595 is an 8-bit serial shift register with storage register and three-state output. The shift register and the storage register use separate clocks.
In the ascending edge of SCK, data shifts, while in the ascending edge of RCK, data is transferred from each register to the storage register. If two clock signals are bound together, the shift register will always lead the memory register by one clock pulse.
The shift register has a serial input (SER) terminal and a serial standard output (Q7") terminal for cascading. SM74HC595 also provides asynchronous reset (low efficiency) for eight orders of shift registers. The storage register has eight three-state bus-driven outputs. When the output enabler (G) is low, the data in the storage register can be output normally.
Characteristic description
Adopting CMOS Technology
Working Voltage Range: 3.0V-5.0V
High-speed shift clock frequency Fmax > 25MHz
Serial output, which can be used in cascade of multiple devices
Packaging Form: SOP16
ESD HBM > 4KV
application area
LED monochrome and bicolor display screen
STB Display

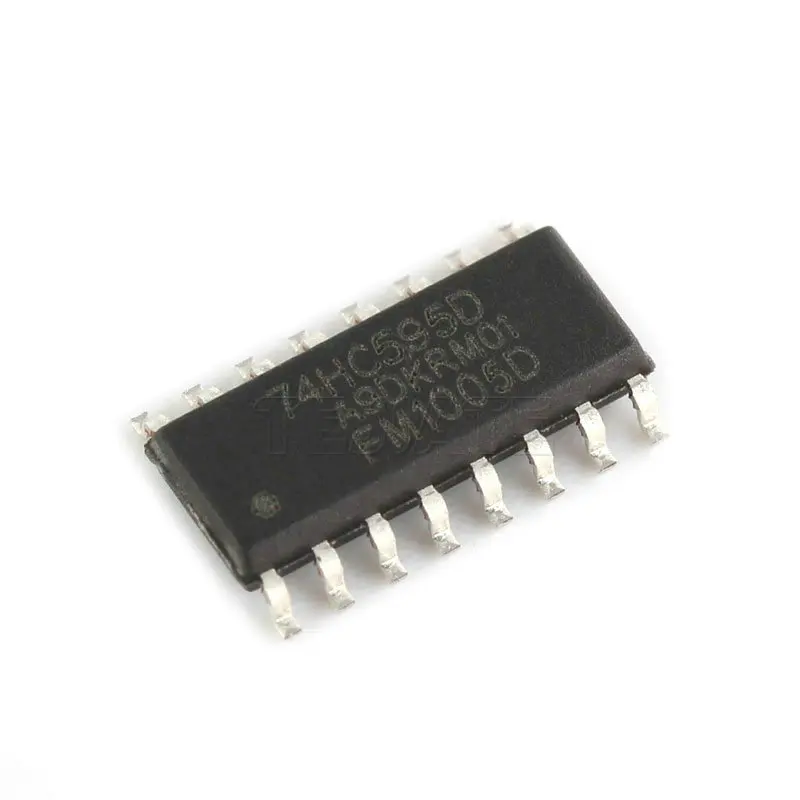

Small household appliances display panel74HC595D-SOP-16 (2)_174HC595D-SOP-16 (2)
