1PCS Tracking/Avoiding Obstacle Sensor Module Four Way Infrared Patrol Modular Unit Robot Intelligent Toy Car

TEJIATE/特加特
In stock
¥1.30
Color

Secure checkout

Friendly support

Hassle-free returns

Product parameters

Working voltage: DC 3.3V ~ 5V
The working current shall be more than 1A as far as possible
Working temperature ~ - 10 ℃ + 50 ℃
Mounting hole diameter m3 screw
The detection distance is adjustable from 1mm to 30cm, the closer the distance, the more stable the performance, and the longer the white reflection distance
Size "center control board 42mm * 38mm * 12mm (L * w * h)
Small plate forward 25mm * 12mm * 12mm (L * w * h)“
Output interface: 6-wire interface (1234 is 4-channel signal output terminal, + is positive power supply, - is negative power supply, that is, ground wire
TTL level of output signal (can be directly connected to MCU 1 / 0, when sensing the infrared light reflected by the sensor, the red indicator light is on, and the output is low level; when there is no infrared light, the indicator light is not on, and the output is high level

Application scope
1. Intelligent car or robot line finding (including black line and white line), along. Walking along the black line is also called tracing.
2. The intelligent car shall avoid cliff and fall.
3. Intelligent car avoids obstacles. It can be used in other automatic photoelectric reflection applications

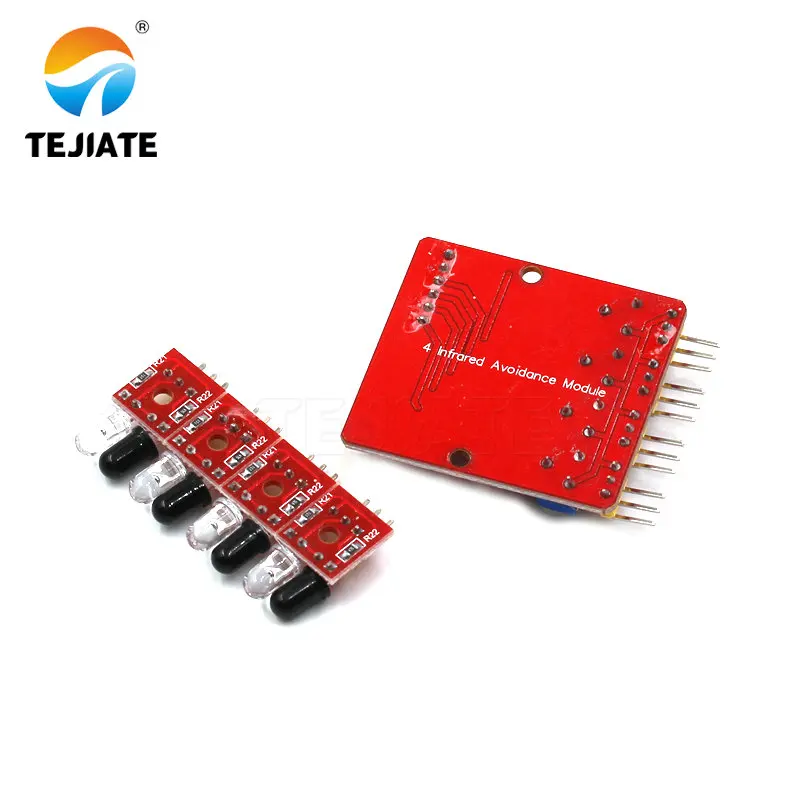

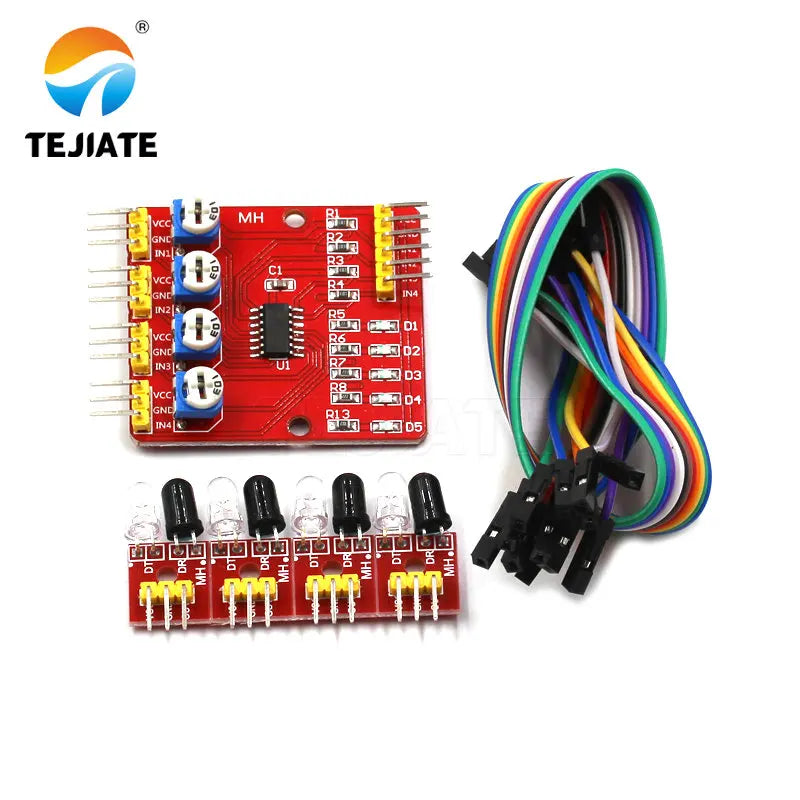

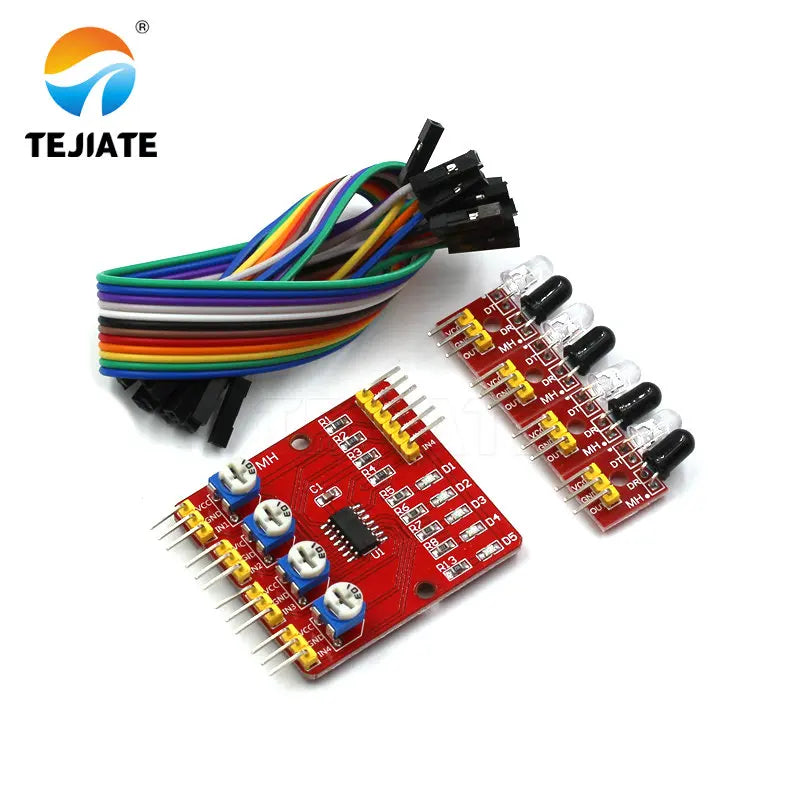

12157-4路避障传感器模块-(1)12157-4路避障传感器模块-(5)12157-4路避障传感器模块-(3)
Tracking/Avoiding Obstacle Sensor Module Four Way Infrared Patrol Modular Device Robot Intelligent Toy Car

Product characteristics

The infrared emission tube of each sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back, but the intensity is not enough, the infrared receiver tube is always in the off state. At this time, the TTL output terminal of the module is high level, and the corresponding indicator diode is always in the off state. When the detected object appears in the detection range, the infrared rays are reflected back and the intensity is high Large enough, the infrared receiving tube is on, at this time, the TTL output terminal of the module is low level, and the indicator diode is on.

1. test:
Test probe: remove all objects in front of the probe, and do not point the probe in the direction of sunlight. Connect the probe board to the power supply and measure the output voltage with a multimeter. The voltage should be about 1 volt. Block in front of the probe with white paper. The output voltage measured with a multimeter should be close to the supply voltage. Test probe board: press the tested probe on the board. For the marked access input terminal, remove all objects in front of the probe, and the probe shall not point to the direction of sunlight, connect the middle probe board to the power supply, and then use a multimeter to measure the output terminal. At this time, the output voltage of the output terminal shall be close to the power supply voltage, block it in front of the probe with white paper, and the output voltage measured by the multimeter shall be close to 0 V. adjust the potentiometer in the channel to change the detection distance.

2. Test middle probe board:
Connect the tested probe to the input terminal as indicated on the board, remove all objects in front of the probe, and do not point the probe to the direction of sunlight, connect the middle probe board to the power supply, and then use the multimeter to measure the output terminal. At this time, the output voltage of the output terminal should be close to the power supply voltage. Block it in front of the probe with white paper, and the output voltage of the multimeter should be close to the voltage. Adjust the potentiometer in the channel Change the detection distance.

3, regulation:
When the module detects the front obstacle signal, the green indicator light on the circuit board lights up the level, and at the same time, the oaut port continuously outputs the low-level signal. The detection distance of the module is 2'30cm, and the detection angle is 35. The detection distance can be adjusted by the potentiometer. Adjust the potentiometer clockwise, and the detection distance increases; adjust the potentiometer anticlockwise, and the detection distance decreases.
