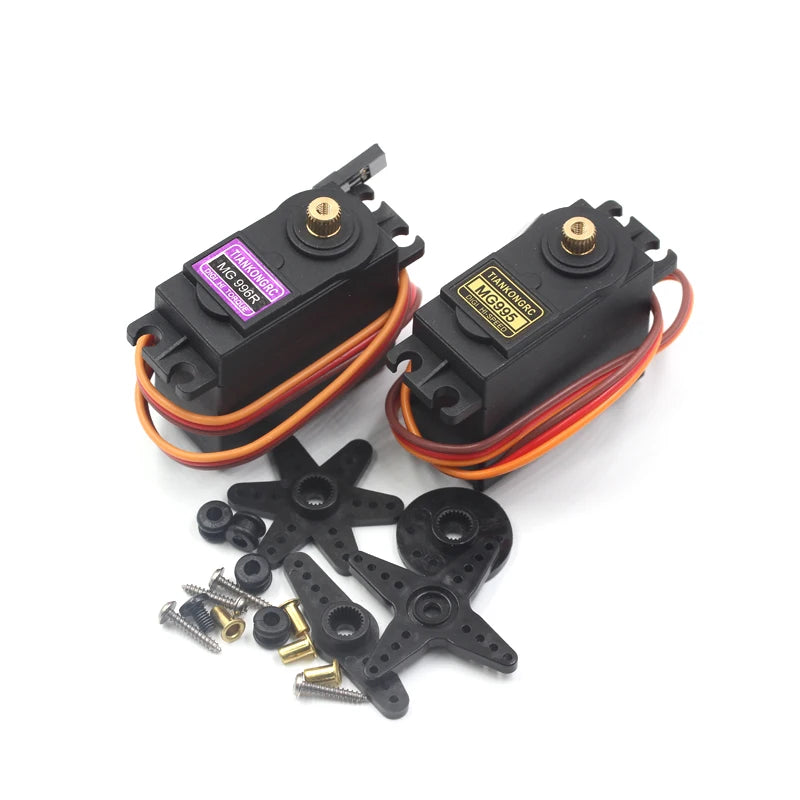

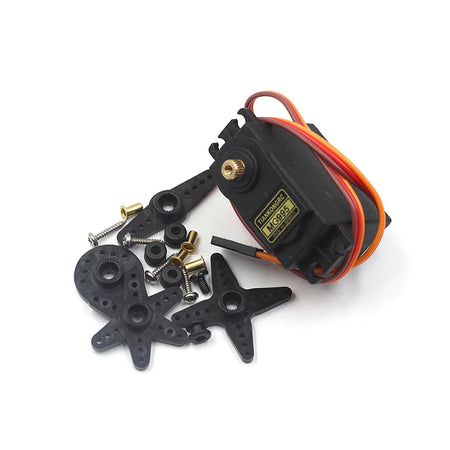

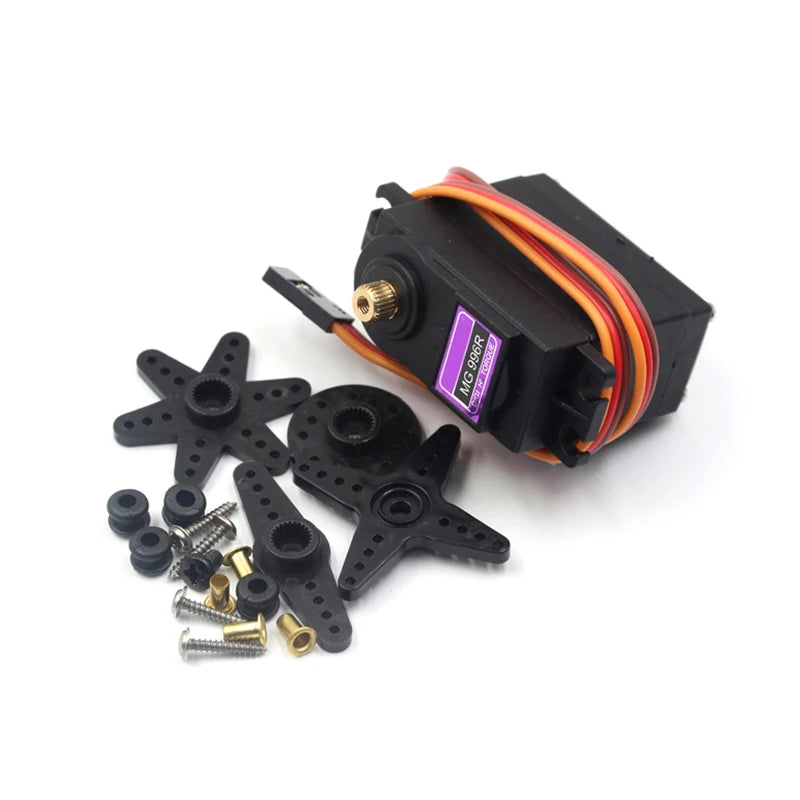

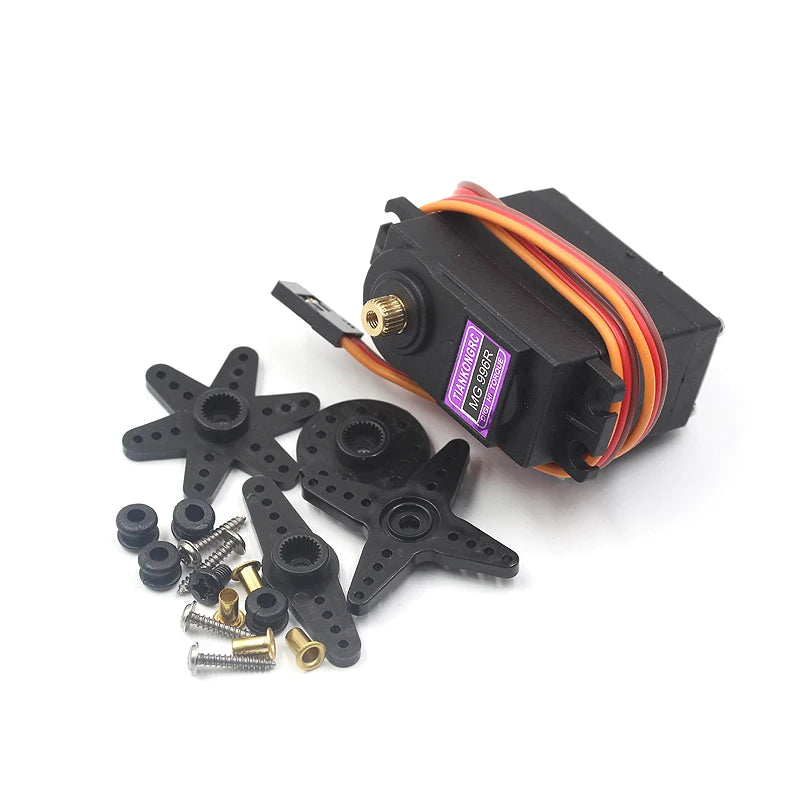

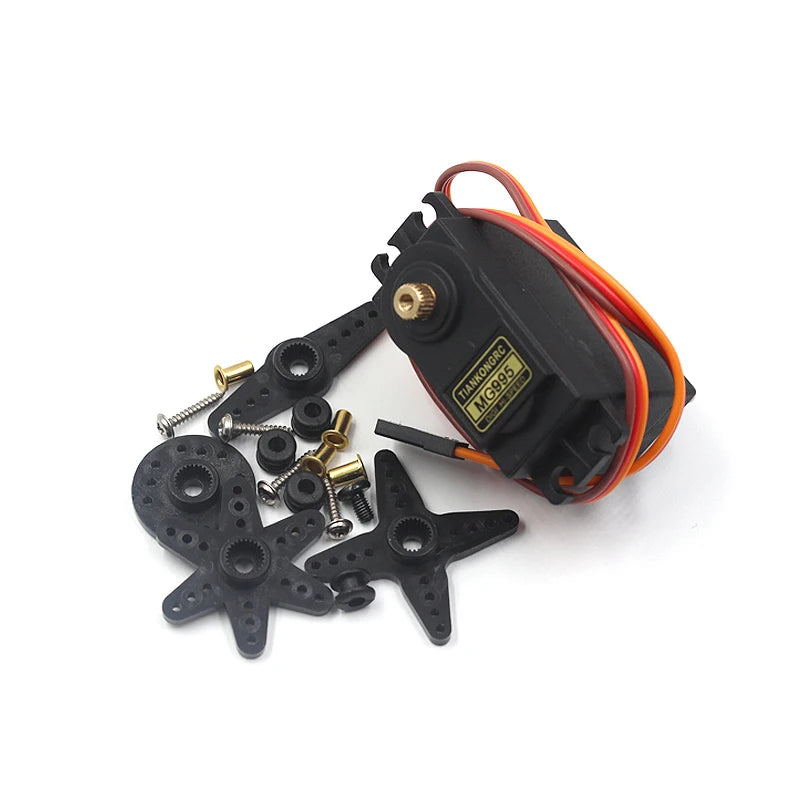

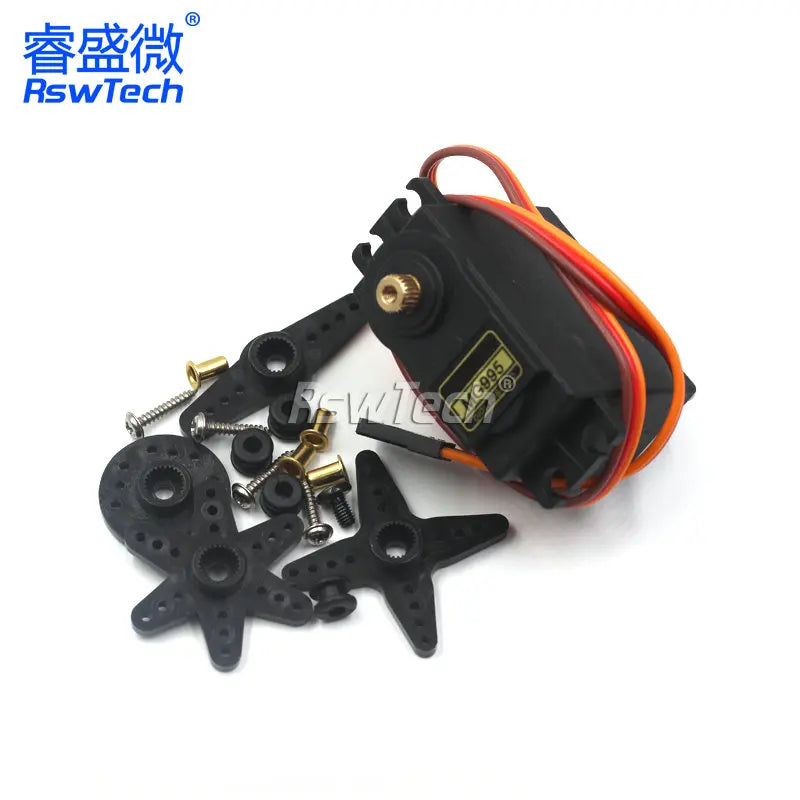

1PCS Steering gear module SG90 MG90S MG995 MG996 Servo Metal Gear for Model Helicopter Boat DIY
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns

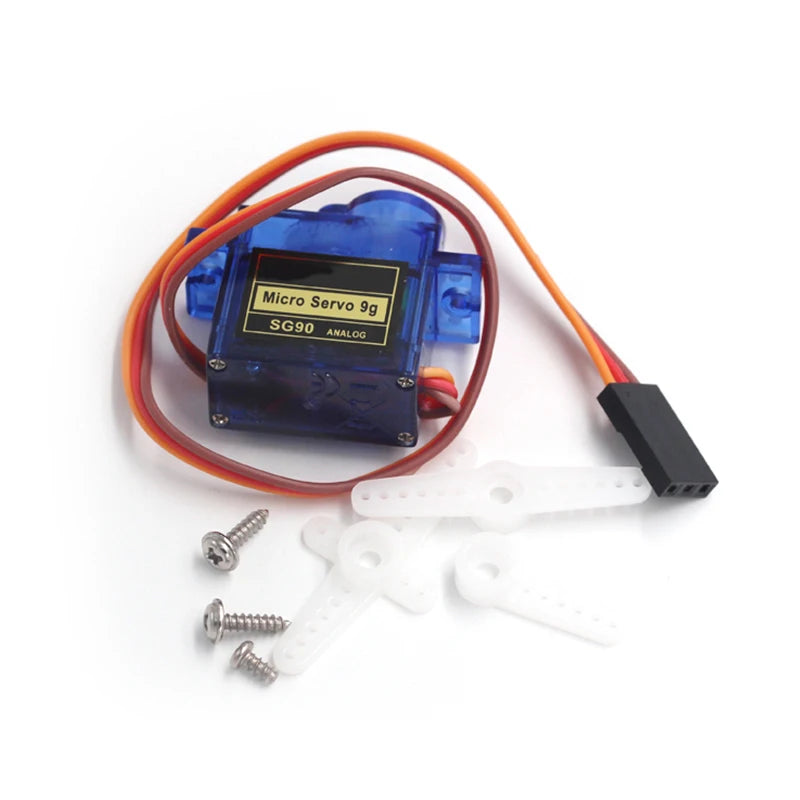

Model: SG90
Technical data given by the manufacturers:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No-load speed: 0.12 seconds / 60 degrees (4.8V)
Stall torque of 1.2 - 1.4 kg / cm (4.8V)
Operating temperature: -30 to +60 degrees Celsius
Dead-set: 7 microseconds
Operating voltage: 4.8V-6V

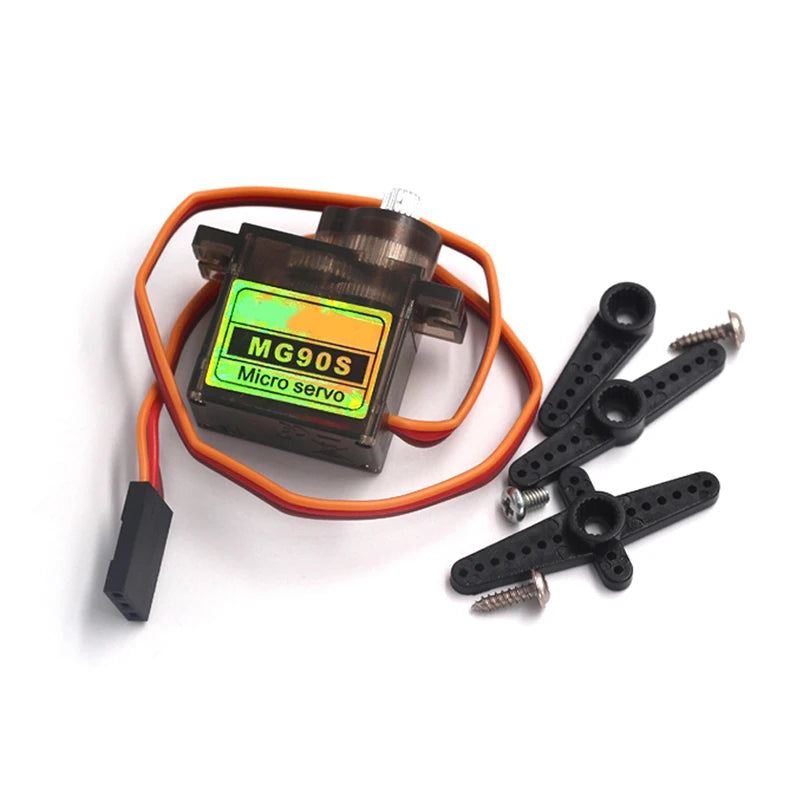

Product Model: MG90S
Working torque: 2KG/cm
Reaction speed: 0.11 seconds / 60 degrees (4.8V
Operating temperature: 0 -55
The dead band setting: 5 microseconds
Plug Type: JR, FUTABA General
Rotation angle: 180 degrees
Servo: analog Servo
Operating voltage: 4.8V
Structural Material: copper metal teeth, coreless motor, double ball bearing
Scope: small and medium-sized electric model aircraft and model.
The attachment contains: helm, the line is long 30CM, fixing screws, damping pouches and aluminum sets and other accessories (see really making plans)
Color: As the picture
Product size: approx. 23 x 12 x 29mm (L*W*H)(each)
Features:
Gear Type: All Metal Gears
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0'C to 55‘C
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Stable and Shock Proof. - Metal Gear - Double Ball Bearing - Connector Wire
Length 300mm
Great for truck, Boat, Racing Car, Helicopter and Airplane
Specifications:
Connector wire length:300 mm
Package Dimension: 54 x 38 x 20 mm
Net weight:61 g
Package weight:71 g
Color: Black
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Stable and Shock Proof. - Coreless Motor - Metal Gear - Double Ball Bearing -
Connector Wire Length 300mm
Dimension : 40mm x 19mm x 43mm
Original box: NO
Net weight: 69g
Package weight: 75g
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Gear Type: All Metal Gears
Connector Wire: Heavy Duty, 11.81" (300mm)
