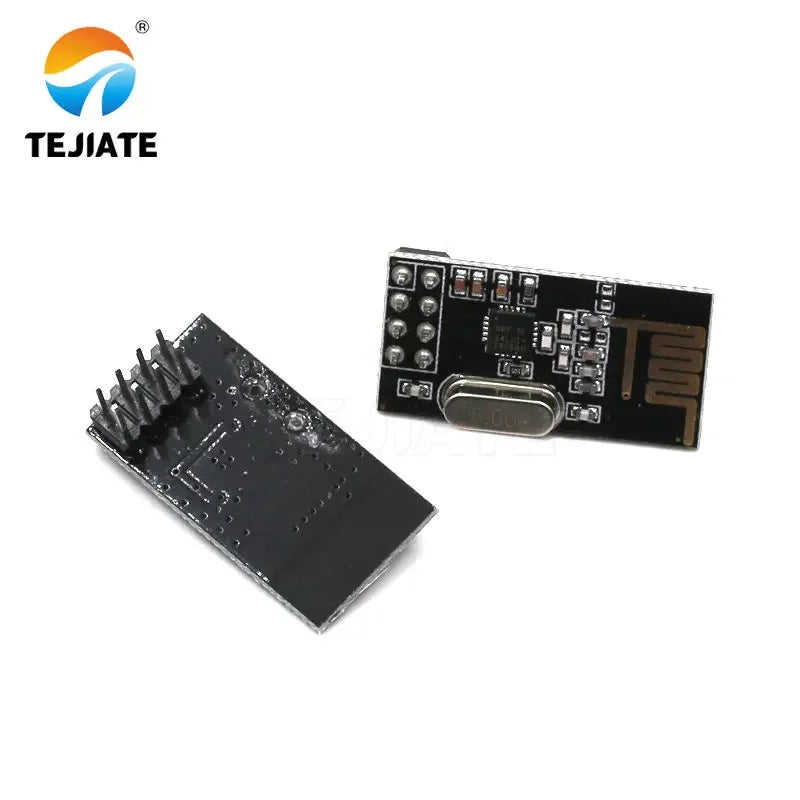

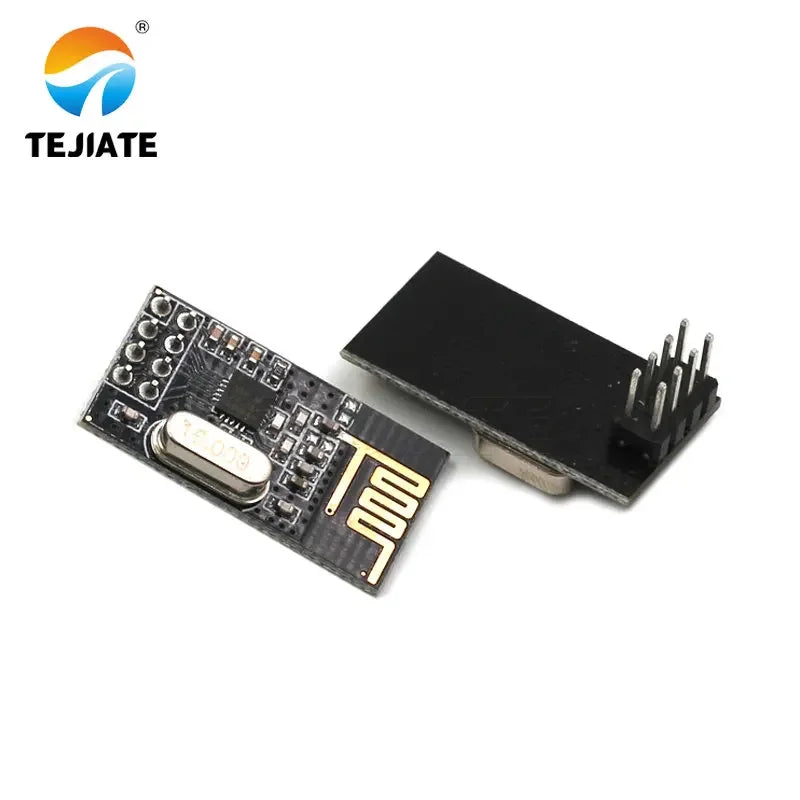

1PCS NRF24L01 + Wireless Module Power-enhanced Type SI24R1 2.4G WIFI Receiving Communication Modular Unit

特加特
In stock
¥0.82
Color

Secure checkout

Friendly support

Hassle-free returns

Product features:

This module uses the domestic RF chip si24r1, which integrates all the high-speed signal processing parts related to RF protocol. Because the link layer is completely integrated in the module, it is very easy to develop. Automatic detection and automatic retransmission of lost packets, retransmission time and times can be controlled by software, and data packets without receiving response signals are automatically stored; after receiving effective data, the module automatically sends response signals without additional programming; carrier detection fixed frequency detection, built-in hardware CRC error detection and point to multipoint communication address control data packet transmission error counter and carrier The wave detection function can be used for frequency hopping setting, which can set the address of six receiving channels at the same time, and can selectively open the receiving channels. The SPI interface of si24r1 can be connected with the hardware SPI port of SCM or simulated with the I / O port of SCM. FIFO can be connected with various high-speed and low-speed microprocessors, which is convenient to use low-cost SCM.
NRF24L01 + Wireless Module Power-enhanced Type SI24R1 2.4G WIFI Receiving Communication Modular Unit

Product parameters:

On board 2.4G PCB antenna, ISM frequency band, standard pin dip 2.54mm spacing interface, small size, convenient for embedded application.
Support six channel data reception (one to six)
Support general modulation methods such as GFSK / FSK
Support 2Mbps / 1Mbps / 250kbps data rate, and can set different transmission power
Multi frequency point: 126 frequency points, meeting the needs of multi-point communication and frequency hopping communication, 2400mhz ~ 2525mhz, 1MHz frequency hopping step by step
LDO with internal integration of high PSRR
Wide power supply voltage range: 1.9 ~ 3.6V, typical 3.3V
Average emission current as low as 25mA (7dBm)
Receiving sensitivity: - 96dbm @ 250kbps
Transmit power up to + 7 ± 1dbm
Four line SPI interface, up to 10MHz
Internal integrated intelligent ARQ baseband protocol engine
Receiving and sending data hardware interrupt output
Support 1 bit RSSI output
Working temperature: - 20 ℃ ~ 85 ℃
The best transmission distance: less than 240m (250kbp open environment without shielding and electromagnetic interference) reliable distance is recommended to be used within 30% - 50%.

Parameter introduction

1 VCC - power supply, must be between 2.0 and 3.6V
2 GND - ground connection to power reference
3. CSN input module chip selection pin, used to start a SPI communication
4 CE input module control pin
5. SPI data input pin of MoSi input module
6. SPI bus clock of SCK input module
7. IRQ output module interrupt signal output, effective at low level
8. Miso output module SPI data output pin

The voltage range of VCC pin connection is between 2.0V and 3.6V, which cannot be outside this range. If the voltage exceeds 3.6V, the module will be destroyed. The recommended voltage is about 3.3V. Except for power supply VCC and grounding terminal, other pins can be directly connected with ordinary 5V MCU IO port without level conversion. Of course, it is more suitable for 3V MCU.
