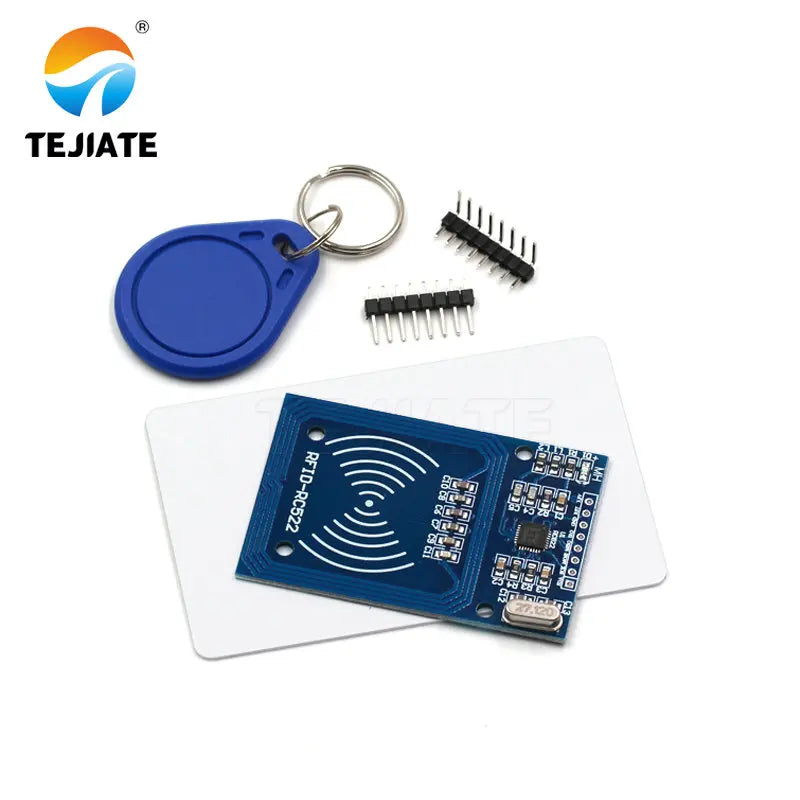

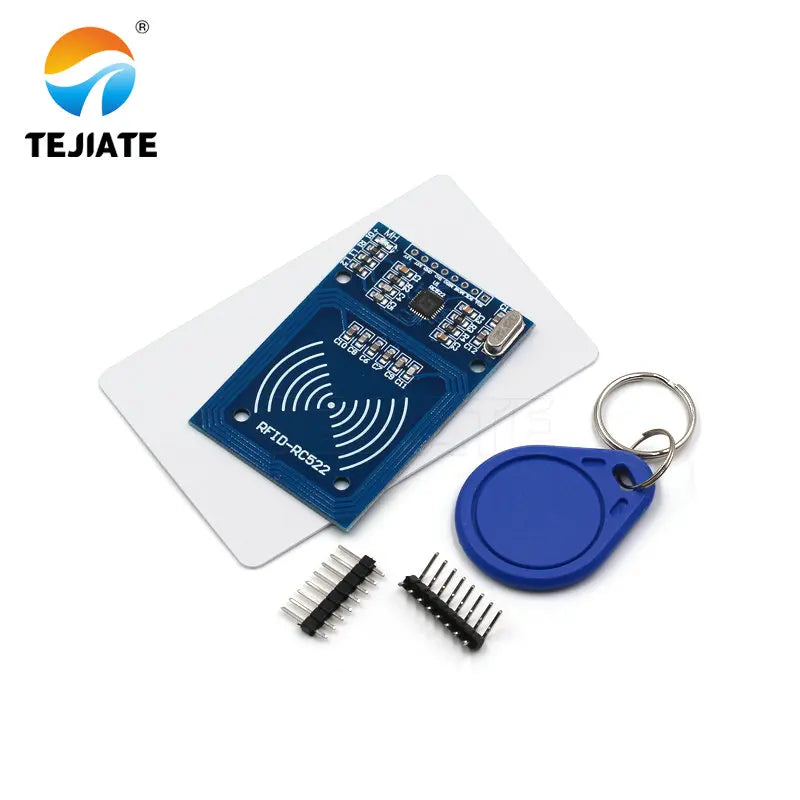

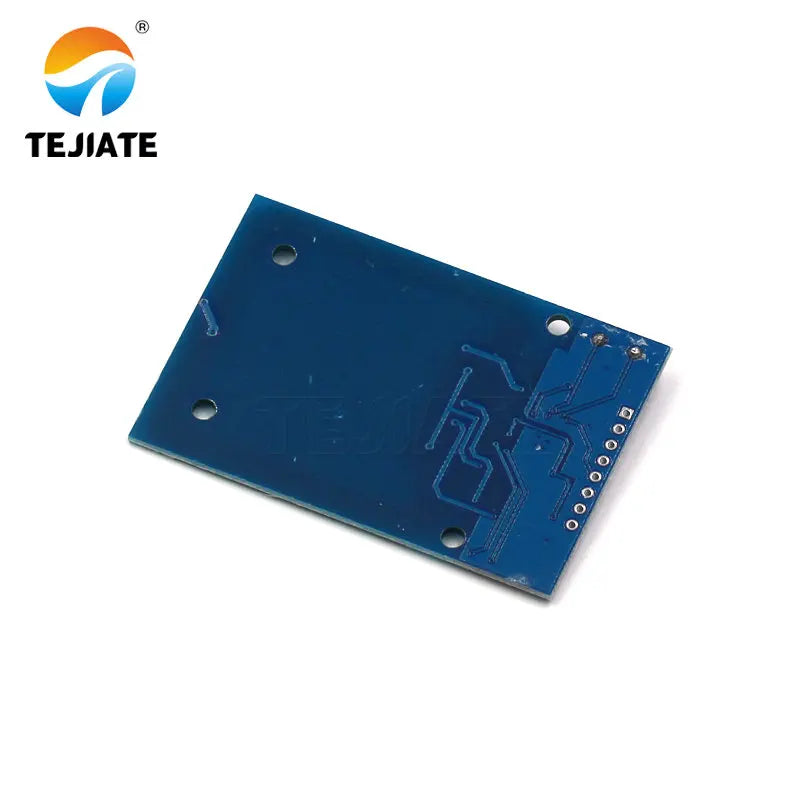

1PCS MFRC-522 RF IC Card Sensor Module RC522RFID Card-reader With S50 Fudan-card + Key Ring

TEJIATE/特加特
In stock
¥1.60
Color

Secure checkout

Friendly support

Hassle-free returns

Product parameters

Working current: 13-26ma / DC 3.3V
Idle current: 18-13ma / DC 3.3V
Sleep current < 80mA
Peak current < 30mA
Operating frequency: 13.56MHz
Supported card types: Mifare1 S50, Mifare1 S70, mifar eultralight, Mifare pro, Mifare decide
Operating temperature - 20 ℃ to + 80 ℃
Storage temperature - 40 ℃ to + 85 ℃
Relative temperature 5% - 95%
Module interface SPI parameters Data transmission rate: 10mbit / S
04843-IC卡感应模块-(1)04843-IC卡感应模块-(5)04843-IC卡感应模块-(3)
MFRC-522 RF IC Card Sensor Module RC522RFID Card-reader With S50 Fudan-card + Key Ring

Product Brief
Mfrc522 is a high integrated read-write card chip used in 13.56MHz contactless communication. It is a low-voltage, low-cost, small size contactless read-write card chip for "three meters" application, which is a better choice for the research and development of intelligent instruments and portable handheld devices. Mfrc522 utilizes advanced modulation and demodulation concepts, integrating all types of passive contactless communication modes and protocols at 13.56MHz. Support 14443a compatible transponder signal. The digital part processes 1s014443a frame and error detection. In addition, it also supports the fast crypt01 encryption algorithm, and validates the Mifare series of products. Mfrc522 supports higher speed contactless communication of Mifare series, and the bidirectional data transmission rate is up to 424kbit / s. As a new member of 13.56hz high integration read-write card family, mfrc522 has many similarities with MFRC500 and mfrc530, but also has many characteristics and differences. The SPI mode is adopted for communication between it and the host, which is beneficial to reduce the connection, the volume of PCB and the cost

RFID module introduction:
The mf522-an module uses Philips mfrc522 original chip to design the card reading circuit, which is convenient to use and low in cost. It is suitable for high application users such as equipment development and card reader development, and users who need to design / produce the RF card terminal. The module can be directly installed into various card reader dies. The module adopts a voltage of 3.3V. It can directly communicate with any Pu main board of the user through a few lines with simple SPI interface, which can ensure the stable and reliable operation of the module and a long card reading distance.

Product application
Mfrc522 is suitable for a variety of non-contact communication applications based on ISO / IEC 14443a standard and requiring low cost, small size, high performance and single power supply
2. On board unit
3. Public transport terminal
4. Portable handset;
5. Contactless public telephone.
Serial port supply voltage (VCC): 5V
RX serial port receiving TX serial port sending
GND power supply ground VCC 5V power supply positive
