1PCS JDY-08 Pass Through Transmission Module Blue/tooth 4.0 BLE CC2541 Welding Needle Type WIFI Unit

TEJIATE/特加特
In stock
¥4.90
Color

Secure checkout

Friendly support

Hassle-free returns

Product introduction
JDY-08 transparent transmission module is based on Bluetooth 4.0 protocol standard, working frequency range is 2.4GHz, modulation mode is GFSK, high transmission power is 0dB, large transmission distance is 80m, adopting ticc2541 chip design, supporting users to modify device name, service UUID, transmission power, matching password and other instructions through at command, convenient, quick and flexible.

14431-JDY-08模块-(3)14431-JDY-08模块-(5)14431-JDY-08模块-(1)

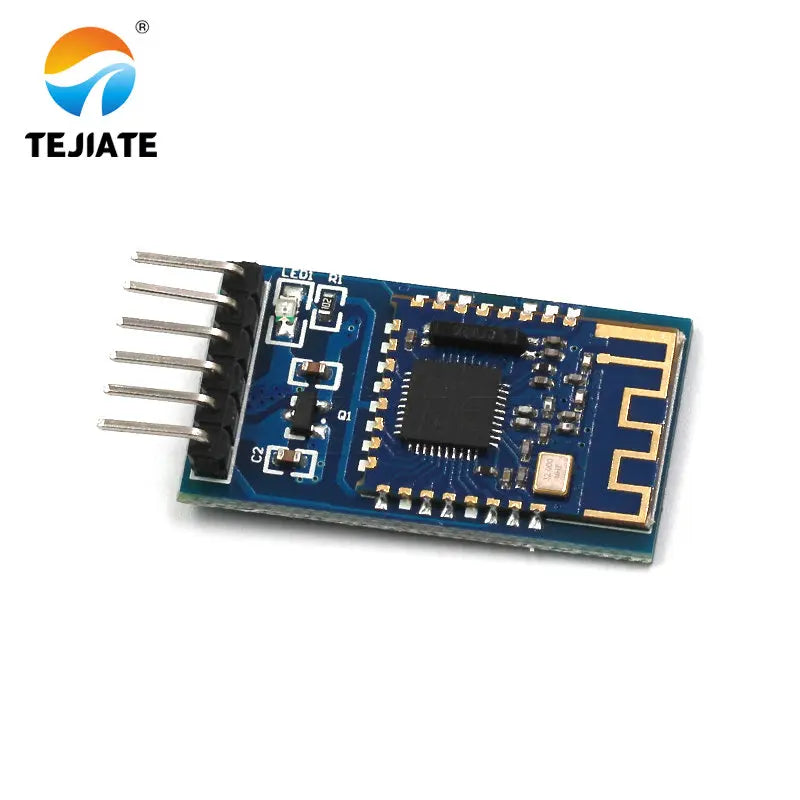

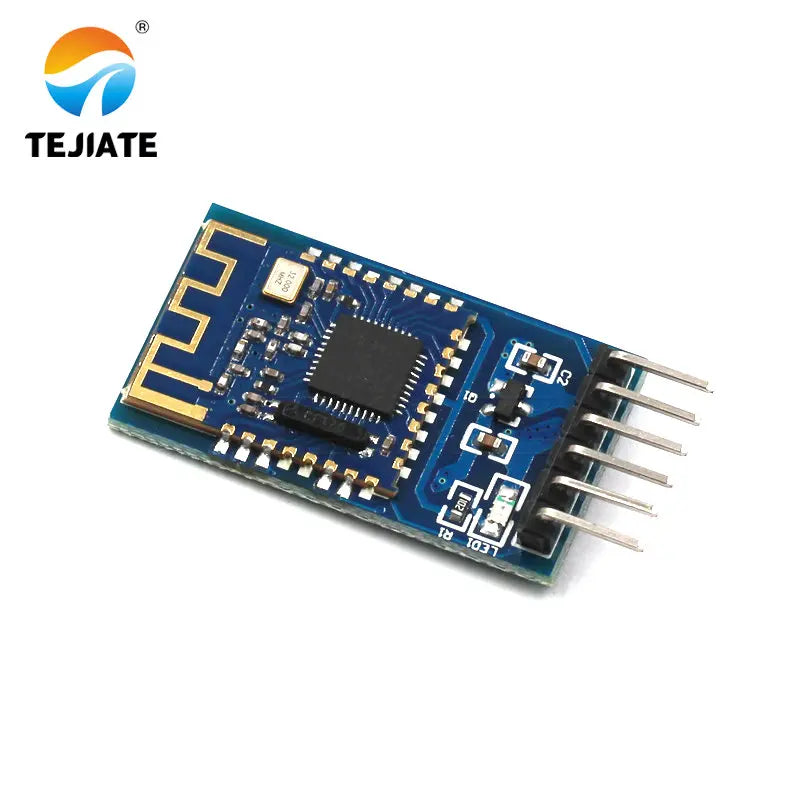

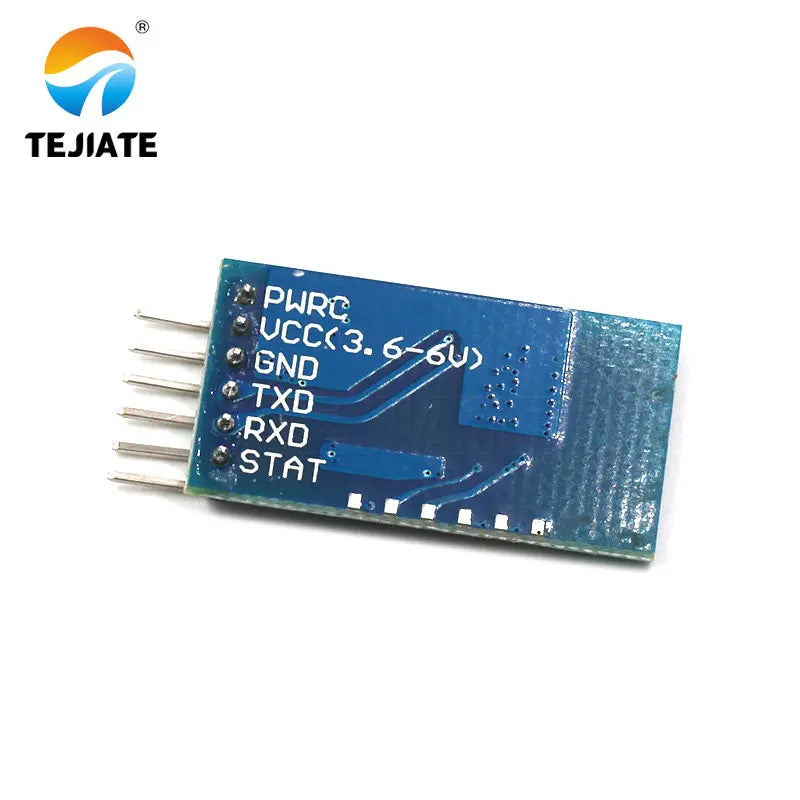

 JDY-08 Pass through transmission module

Product function
1. App passthrough (supports Android and 10s data passthrough)
2. Ibeacon mode (supports micro Xin shake protocol and apple ibeacon protocol)
3. Sensor mode (temperature, humidity and many other sensor data acquisition applications)
4. Host transparent transmission mode (data transparent transmission between application modules, host and slave communication)
5. Host observer mode (application sensor, indoor positioning)
6. PWM mode (applied to motor speed regulation and LED light brightness regulation
7.10 mode (applied to mobile phone control relay or LED on / off)
8. Indoor room location application (use ibeacon data acquisition to achieve range positioning)
9.RTC mode
10. RTG alarm mode: the alarm time of RTC can be set to control 10 ports, and two alarm time settings are supported





Electrical characteristics
Working mode
Slave transmission mode connected / not connected / standby 0.8ma/300ua/1ua
Slave broadcast mode (ibeacon, sensor) connected / not connected / standby 0.5ma/300ua/1ua
Host transmission mode connected / not connected / standby 20mA / 9ua / 1uA
Host observer mode (sensor) connected / not connected / standby 25mA
The above test power supply voltage is 3.3V
