SKU: 00225
(0)

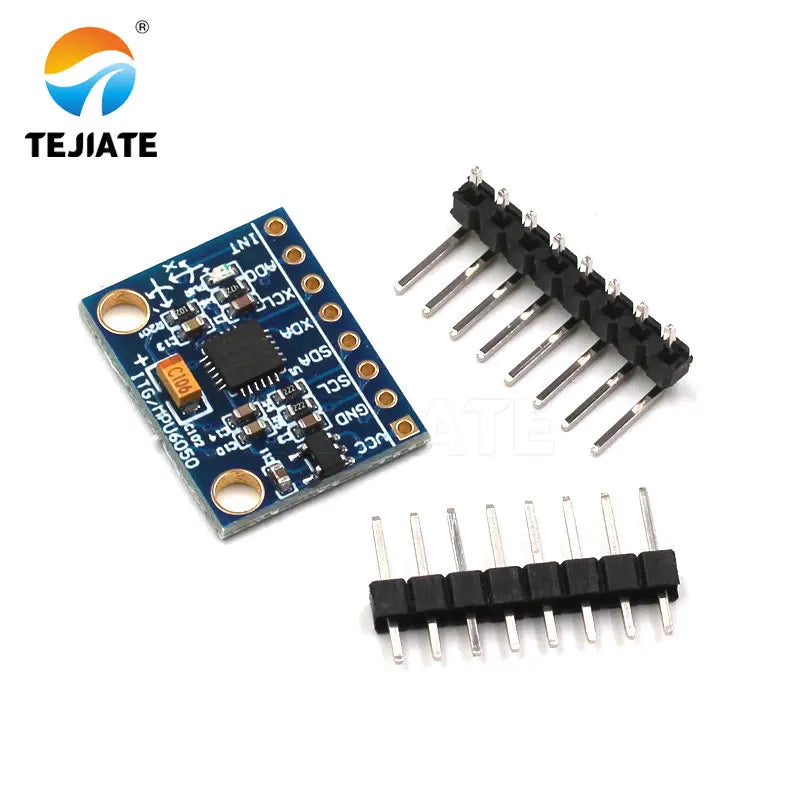

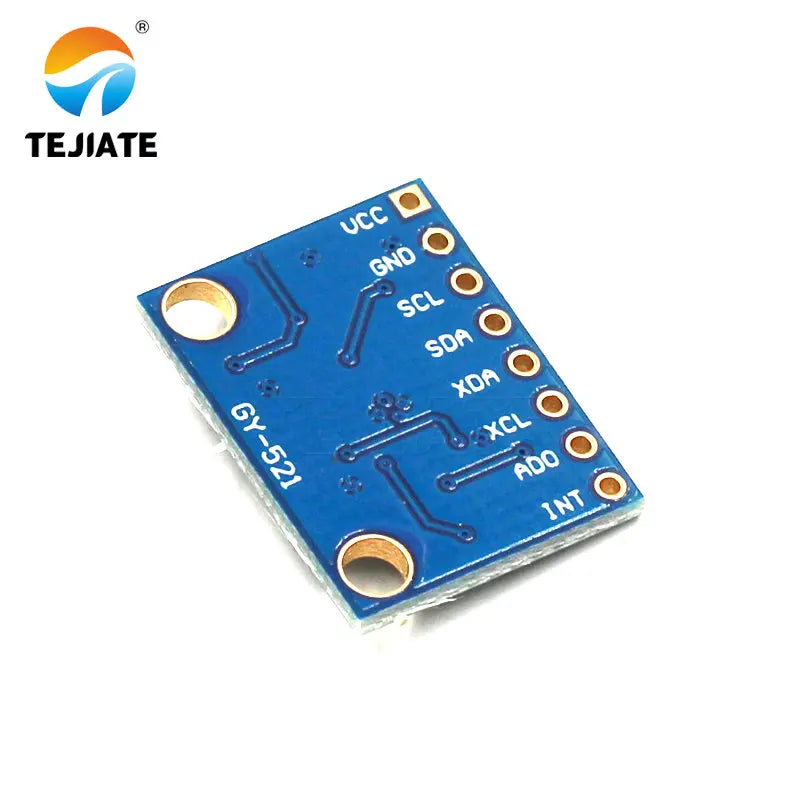

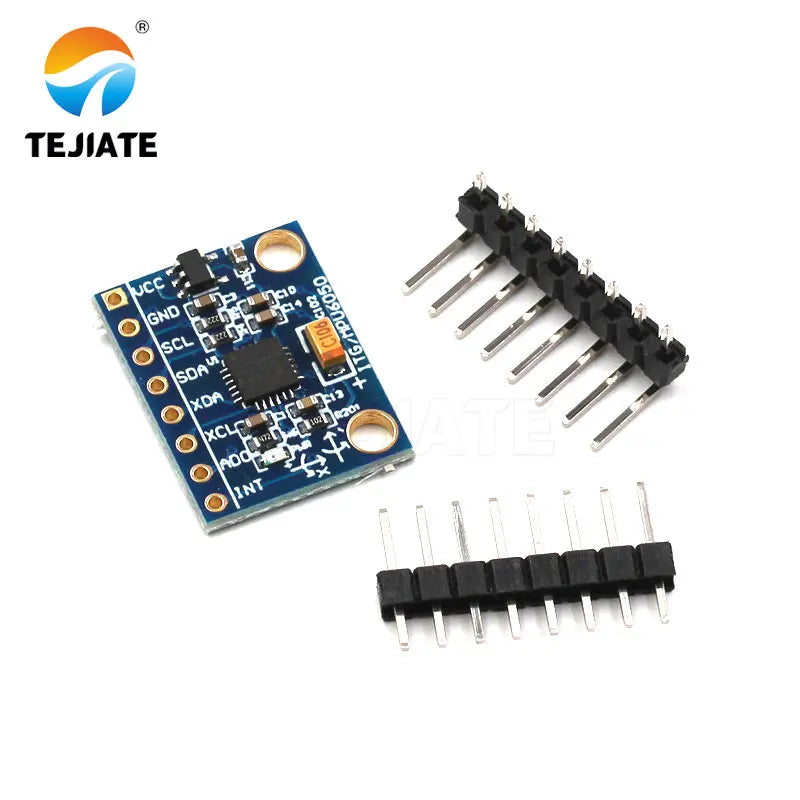

1PCS GY-521 MPU-6050 Triaxial Acceleration Sensor Module Gyroscope 6DOFModular Device With Code Schematic

TEJIATE/特加特
In stock
¥2.50
Color

Secure checkout

Friendly support

Hassle-free returns

Product parameters

Using chip mpu-6050
Power supply 3-5v (internal low-voltage differential voltage stabilization)
Standard IIC communication protocol
On chip 16 bit AD converter 16 bit data output
Gyroscope range 250 500 1000 2000 ° / S
Acceleration range: 2 ± 4 ± 8 ± 16g
Pin spacing: 2.54mm
Adopt sinking gold PCB, machine welding process to ensure quality
00225-加速度传感器模块-(1)00225-加速度传感器模块-(3)00225-加速度传感器模块-(2)
GY-521 MPU-6050 Triaxial Acceleration Sensor Module Gyroscope 6DOFModular Unit With Code Schematic

Product characteristics

1. Mpu-6000 is an integrated 6-axis motion processing component. Compared with the multi-component scheme, it avoids the problem of axis difference between the combined gyroscope and the accelerator, and reduces a lot of packaging space. Mpu-6000 integrates 3-axis gyroscope and 3-axis accelerator, and includes DMP (digital motion processor) hardware acceleration which can connect other brands of accelerators, magnetic sensors or other sensors through the second I2C port. The main 12C port outputs a complete 9-axis fusion algorithm technology to the application end in the form of a single data flow
2. Invensense's motion processing database can process the complex data of motion sensing, reduce the load of motion processing operation on the operating system, and provide an architectural API for application development.
3. Mpu-6000's angular velocity full scale sensing range is ± 250, ± 500, ± 1000 and ± 2000 ° / sec (DPS), which can accurately track fast and slow motion. Moreover, the user programmable accelerator full scale sensing range is ± 2G, ± 4G, ± 8g and ± 16g. The product can be transmitted through I2C up to 400kHz or SPI up to 20MHz.
4. Mpu-6000 can work under different voltages. The VDD power supply voltage is 2.5V ± 5% 3.0V ± 5% or 3.3V ± 5%, and the logic interface vvdi0 power supply is 1.8V ± 5%. The packaging size of mpu-6000 is 4 × 4 × 0.9mm (QFN), which is revolutionary in the industry. Other features include built-in temperature sensors and oscillators with only ± 1% variation in operating environment in China.

Product application:

Smart phones, tablet devices, handheld game products, cochlear square 3D remote control, portable navigation equipment
1. Sports sense games
2. Reality enhancement
3. EIS: electronic image stabilization
4. OIS: optical image stabilization
5. Pedestrian navigator
6. "Zero touch" gesture user interface
7. Pose shortcuts
8. Authentication

Product advantage

1. Digital output of 6-axis or 9-axis rotation matrix, quaternion, Euler angle forma fusion algorithm data.
2. 3-axis angular velocity sensor (gyroscope) with 131lsbs / ° / sec sensitivity and full cell sensing range of ± 250, ± 500, ± 1000 and ± 2000 ° / sec
3. 3-axis accelerator with programmable control range of ± 2G, ± 4G, ± 8g and ± 16g
4. Remove the sensitivity between the accelerator and the gyroscope axis, reduce the influence given by the setting and the drift of the sensor.
5. Digital motion processing (DMP) can reduce the load of complex computation data, sensor synchronization, pose sensing and so on.
6. Motion processing database supports Android, Linux and windows
7. The built-in operation time deviation and magnetic sensor correction algorithm technology can eliminate the need of customers for additional correction.
8. Temperature sensor with digital output
9. Digital input sync pin supports video electronic phase stabilization technology and GPS
10. Programmable interrupt supports gesture recognition, panning, zooming in and out of the picture, scrolling, fast descent interrupt, high-G interrupt, zero motion sensing, touch sensing and shake sensing.
11. VDD supply voltage is 2.5V ± 5%, 3.0V ± 5%, 3.3V ± 5%; vdd10 is 1.8V ± 5%
12. Gyroscope operating current: 350A, accelerator power saving mode current 20A 10Hz
13. 12C in fast mode up to 400kHz or SPI serial host interface up to 20MHz
14. The built-in frequency generator has only ± 1% frequency variation in all temperature ranges.
15. Test by user
16. 10000g collision tolerance
17. Small and thin limit packaging (4 × 4 × 0.9mmqfn) tailored for portable products
18. Comply with RoHS and environmental standards
