1PCS Flame Sensor Module Fire Source Detection Modular Device Infrared Reception Fire Light Alarm

TEJIATE/特加特
In stock
¥0.46
Color

Secure checkout

Friendly support

Hassle-free returns

Product introduction

1. The flame can be detected or the light source with wavelength of 760 nm and 1100 nm can be detected. The flame distance of lighter is 80cm. The larger the flame is, the farther the test distance is
2. Detection angle is about 60 degrees, especially sensitive to flame spectrum
3. Adjustable sensitivity (blue digital potentiometer in the figure)
4. Comparator output, clean signal, good waveform, strong driving capacity, over 15mA
5. With adjustable precision potentiometer to adjust sensitivity
6. Working voltage 3.3-5v
7. Output form: d0 digital switch output (0 and 1)
8. Fixed bolt hole for easy installation
9. Small PCB size: 32mm * 14mm
10. Using a wide voltage LM393 comparator

Product characteristics

1. The fire sensor is sensitive to the flame and also has response to ordinary light. It is generally used as a flame alarm lamp.
2. Output interface of small board can be directly connected with IO port of single chip microcomputer
3. Keep a certain distance between the sensor and the flame to avoid high temperature damaging the sensor. The test flame distance of the lighter is 80cm. The larger the flame is, the farther the test distance is

Special description

VCC - connected to positive pole of power supply (3.3-5v)

GND - connected to negative pole of power supply

DO-TTL digital signal output

The polarity of the power supply cannot be reversed, otherwise the chip may be burnt out. When the switch signal indicator is on, the low level will be output. When it is not on, the high level will be output. The level of the signal output is close to the power supply voltage

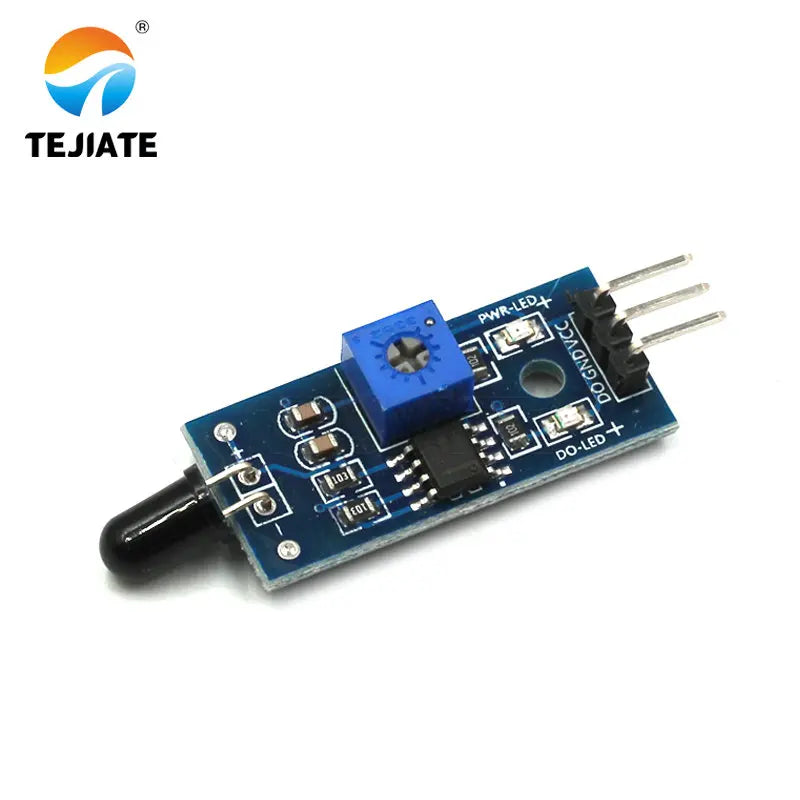

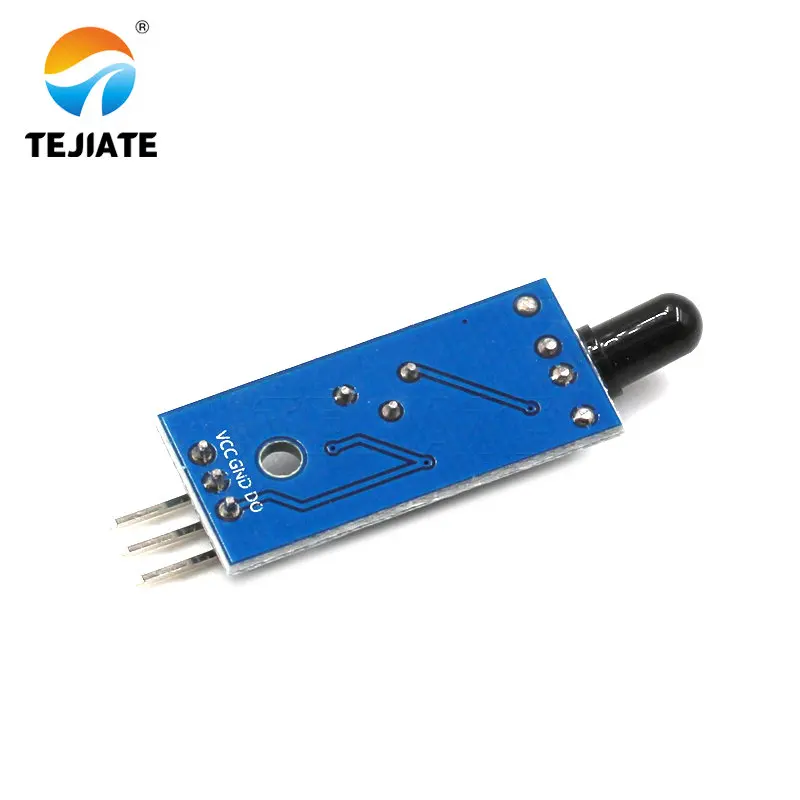

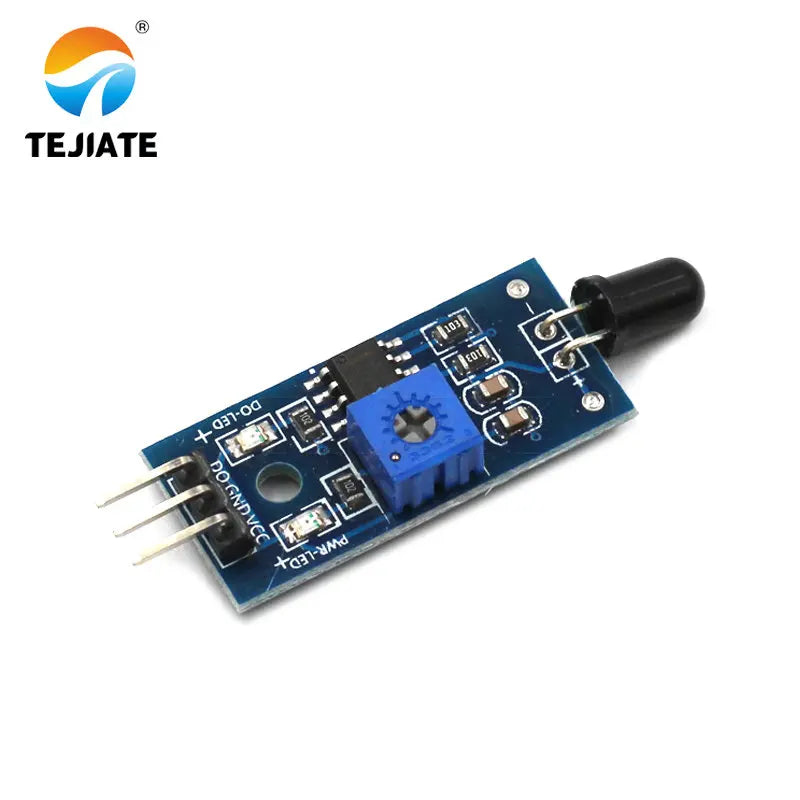

12140-火焰传感器模块-(1)12140-火焰传感器模块-(3)12140-火焰传感器模块-(2)
Flame Sensor Module Fire Source Detection Modular Device Infrared Reception Fire Light  Alarm
