1PCS DC-DC LM2596HVS-ADJ 48V Step-down Module 4.5-60V Adjustable Voltage Stabilizing Modular Unit

TEJIATE/特加特
In stock
¥1.06
Color

Secure checkout

Friendly support

Hassle-free returns

Product features:

Using chip aluminum electrolytic capacitor, high Q value and high power inductor. After strict technical test, the independent protective bag is used for packaging after the test.

Specially designed 2 screw fixing holes. Four pads of input and output are provided with row pin fixing holes, and the spacing is 100 Mil integer times, which is convenient for batch application in products;

Be careful:
When the resistance value of the original blue potentiometer is at the maximum position, turn the knob anticlockwise after the input is turned on, and the output voltage will not change until the figure is about 7-8.

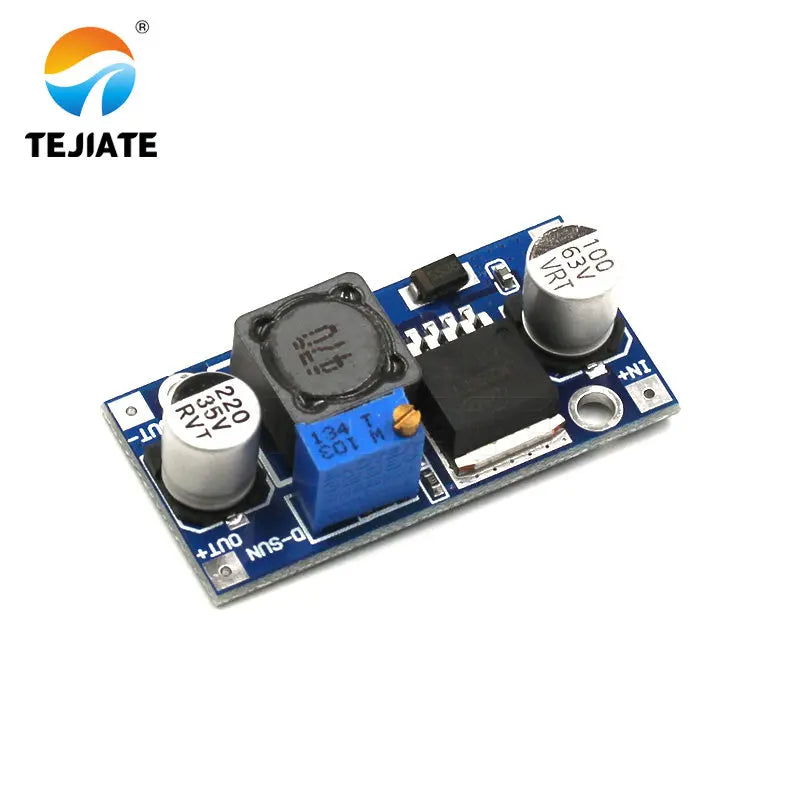

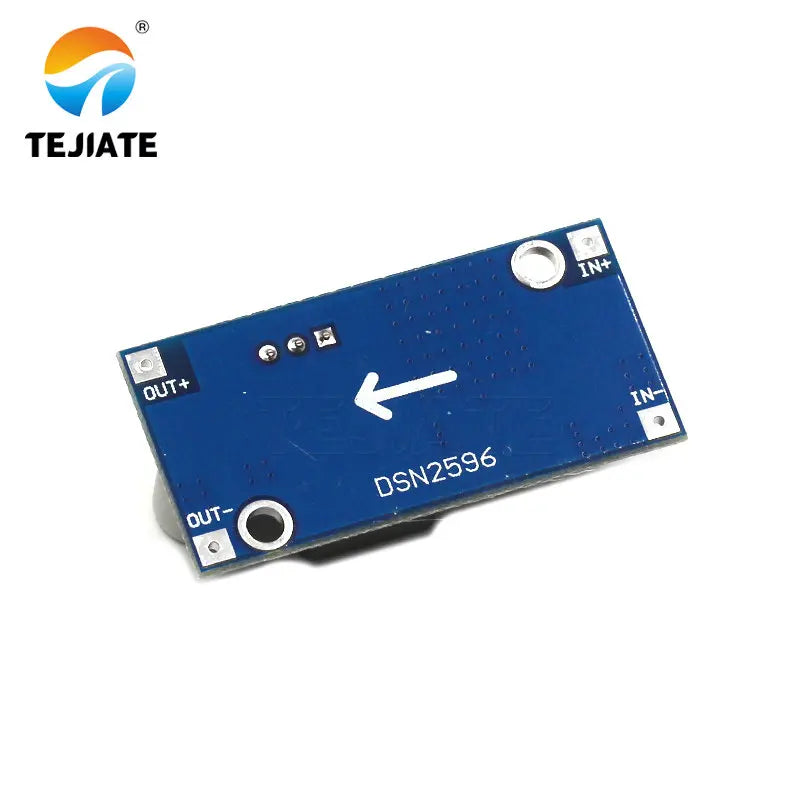

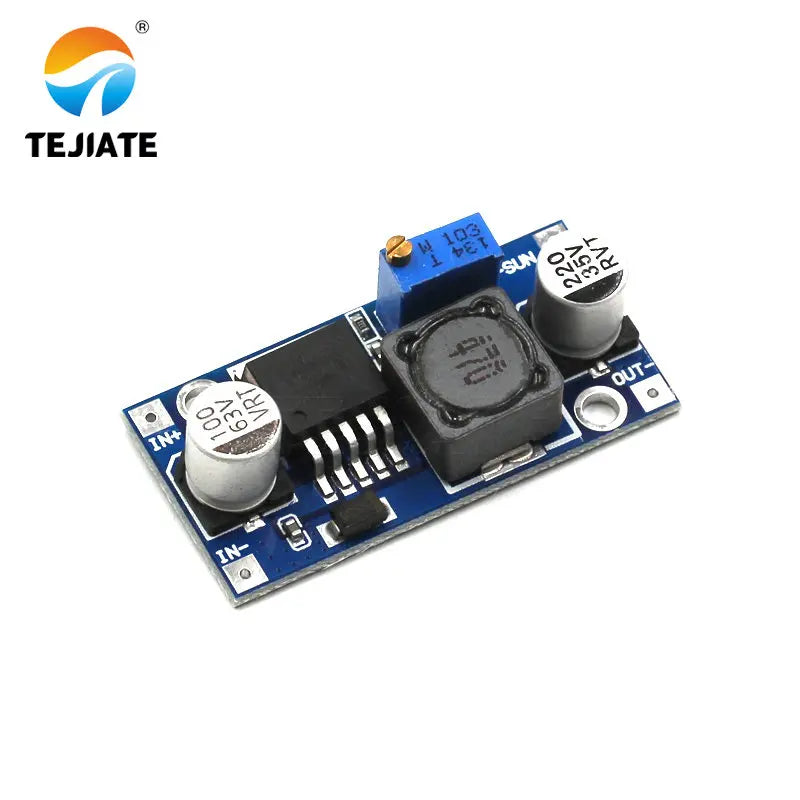

00230-48V可调降压模块-(1)00230-48V可调降压模块-(3)00230-48V可调降压模块-(2)
DC-DC LM2596HVS-ADJ 48V Step-down Module 4.5-60V Adjustable Voltage Stabilizing Modular Unit

Product parameters:

N + input positive n input negative!
Out + output positive output negative!
Note that input and output cannot be reversed. It may burn if connected reversely!

Input: DC 3V to 40V (the input voltage must be more than 1.5V higher than the output voltage. No pressure rise)
Output: DC 1.5V to 35V voltage continuously adjustable, high efficiency, maximum output current 3a.
Features: solid state capacitor, 36U thickened circuit board, high Q value and high power inductor with output LED indicator
Size: 44 (L) × 21 (W) × 14 (H mm (including potentiometer)

matters needing attention:
For long-time operation, it is recommended to use the current within 2.5A, and add heat sink (more than 10W output)
As it is a step-down module, in order to ensure stable output, please keep the limit of 1.5V differential pressure. Voltage regulation:
Connect the power supply (3-40v), adjust the blue potentiometer knob (generally rotate clockwise to increase voltage and anticlockwise to decrease voltage) and use the multimeter to monitor the output voltage until it reaches the required voltage

Line aid mode:
1. Welding, directly welding the power line at the input (output) port;
2. The welding pin can be inserted into the pin through the lead or inserted on the hole board, or directly welded on the PCB after adding the pin.

Application example:
1. Vehicle stable voltage power supply, only need to connect the input terminal of this module to the cigarette lighter to supply power, you can adjust the potentiometer and output voltage at 1.25-30v, which can supply power for your mobile phone, MP3, MP4, PSP charging and many other devices, very simple and convenient.
2. Supply power to electronic equipment. When the equipment needs 3-35v power supply and the corresponding voltage power supply is in hand, this module can easily adjust the voltage to the required voltage to solve the problem of impedance.
3. This module can be used to debug the working voltage range of various voltage testing systems, which is very easy and convenient.
