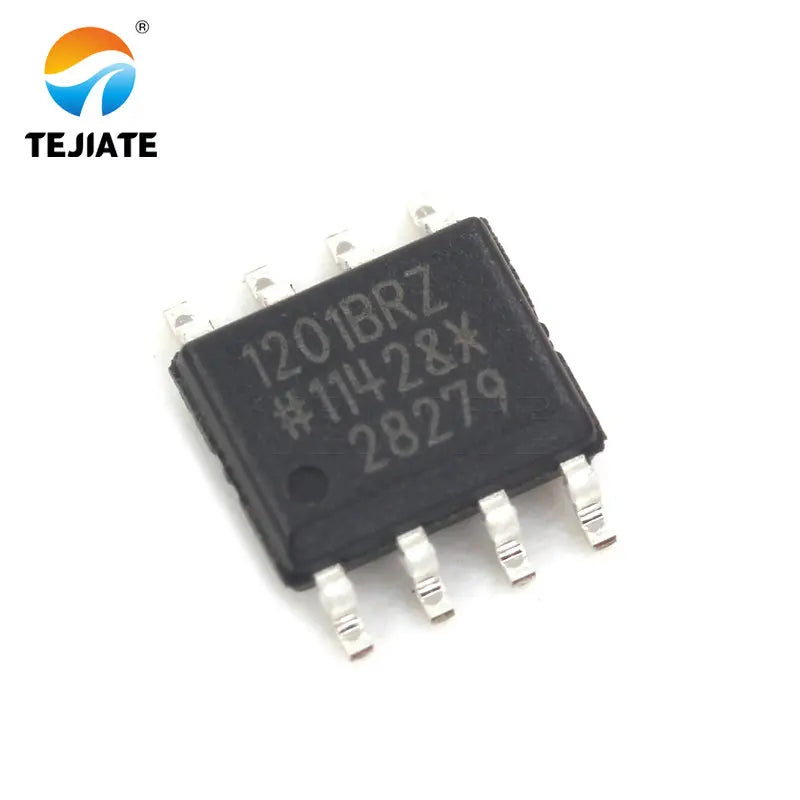

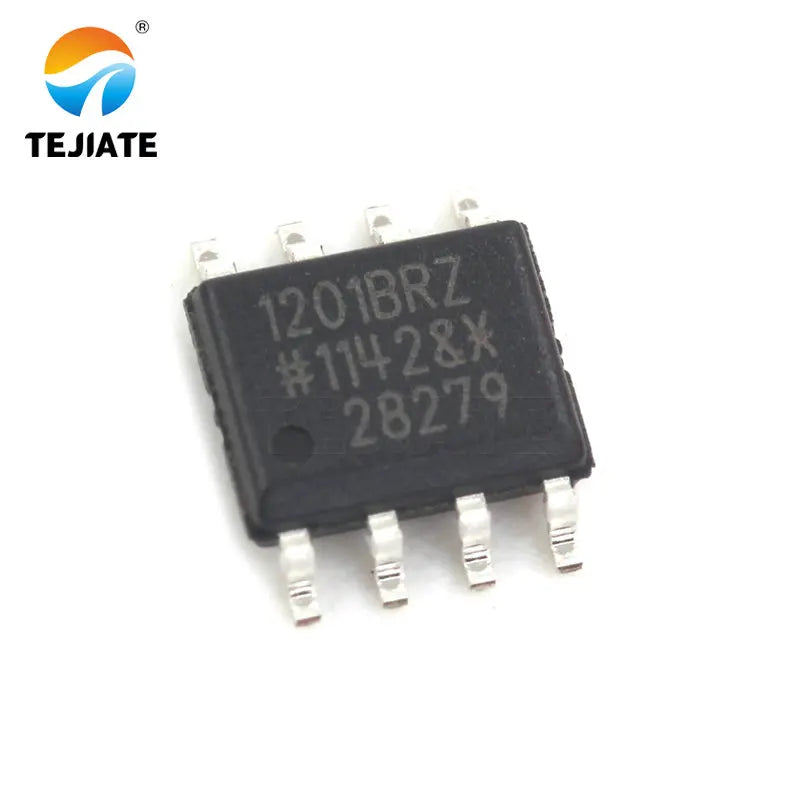

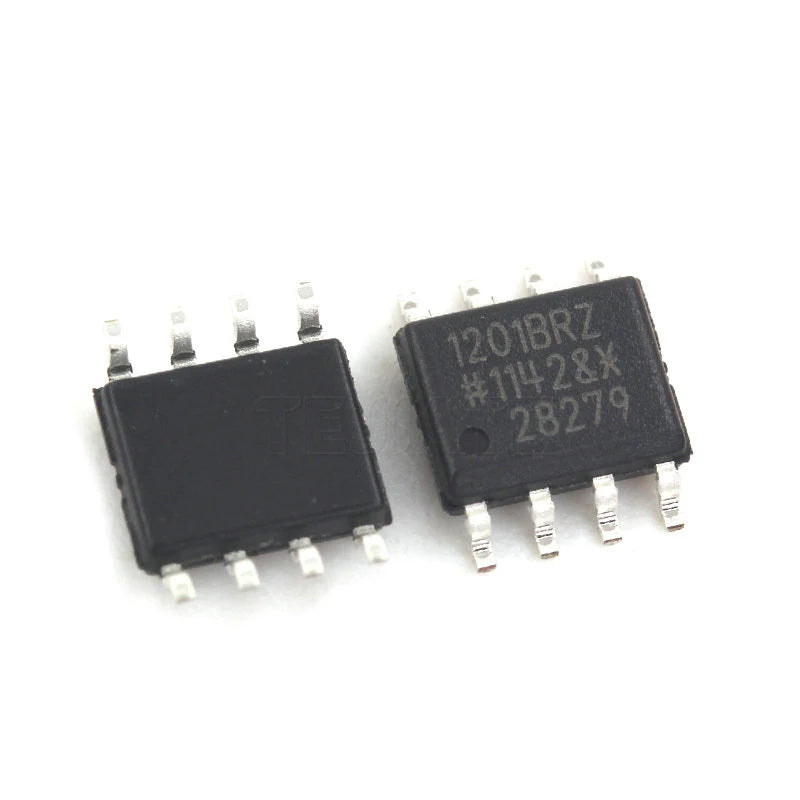

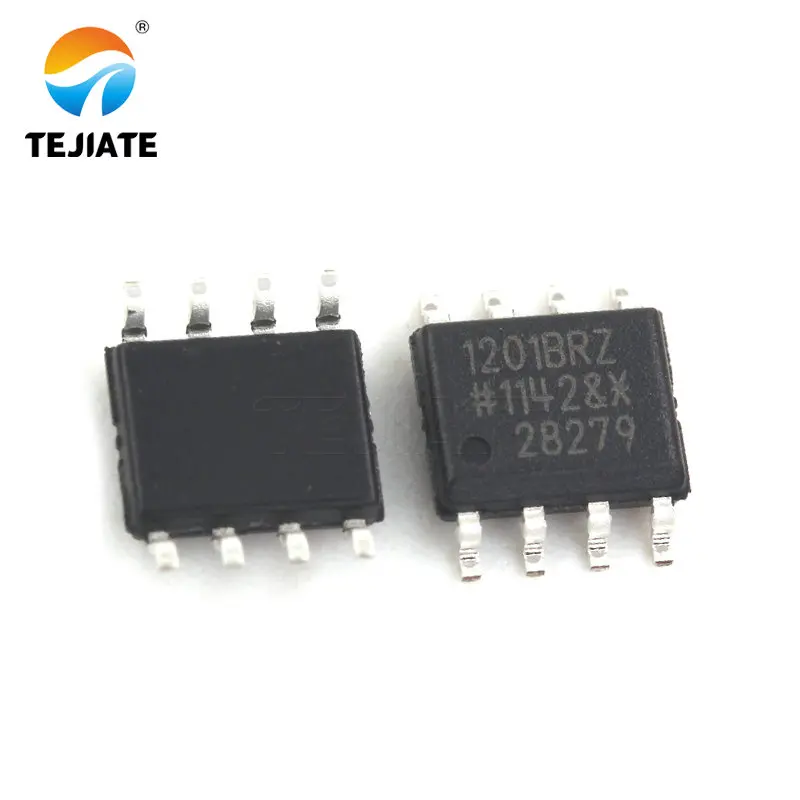

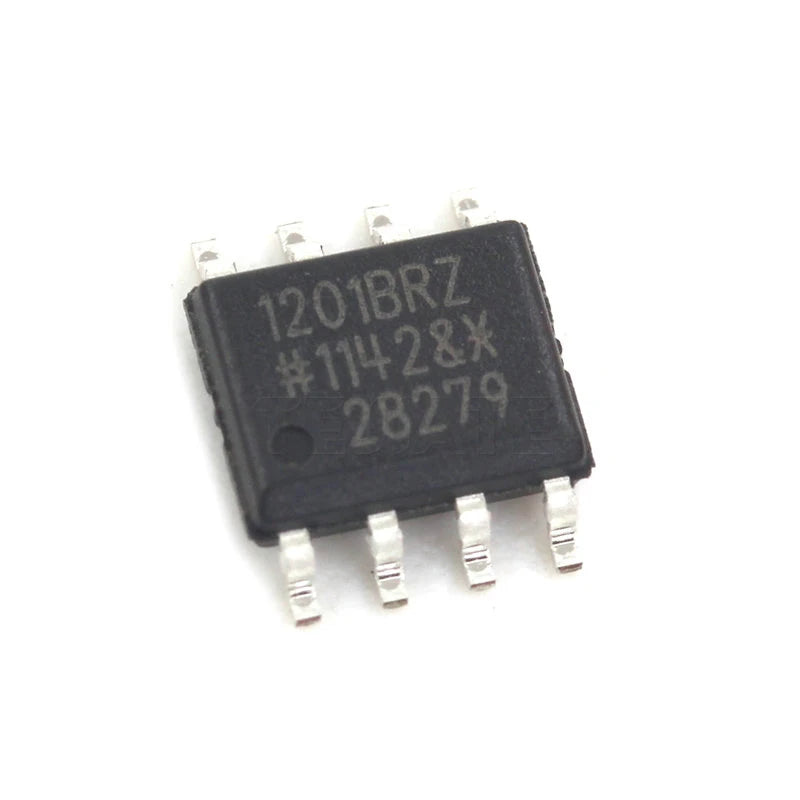

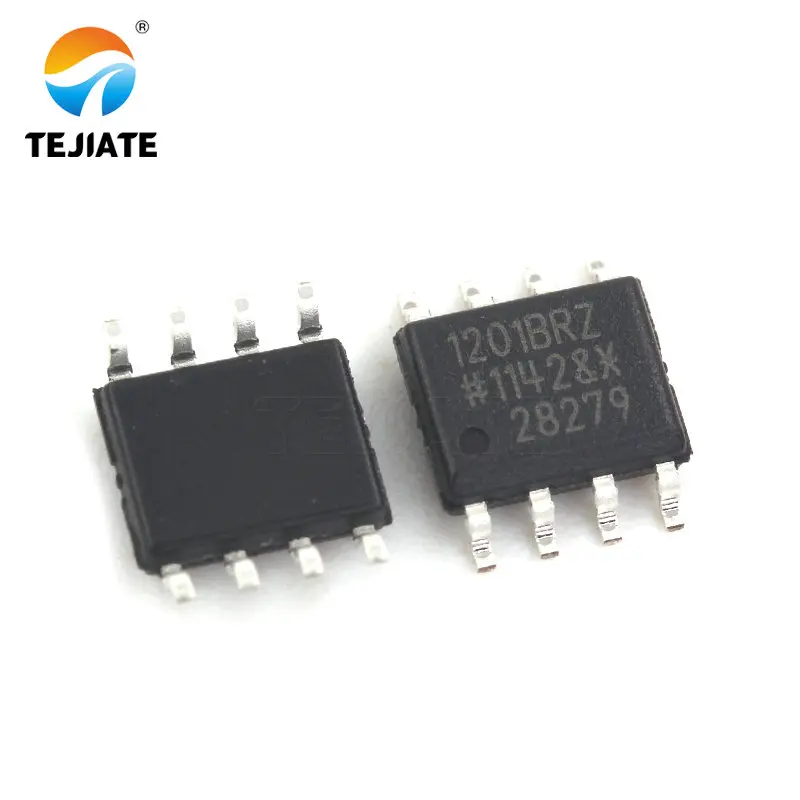

ADUM1201BRZ Parameter specification：

Lead free compliance / RoHS compliance: lead free / RoHS compliance

Moisture sensitivity level (MSL): 1 (unlimited)

Series: icoupler ®

Packaging: pipe fittings

Part status: on sale

Technology: magnetic coupling

Type: General

Isolated power supply: None

Number of channels: 2

Input - input side 1 / input side 2: 2 / 0

Channel type: one way

Isolation voltage: 2500vrms

Common mode transient immunity (minimum): 25kV / μ s

Data rate: 10Mbps

Propagation delay tPLH / tPHL (maximum): 50ns, 50ns

Pulse width distortion (maximum): 3ns

Rise / fall time (typical value): 2.5ns, 2.5ns

Power supply voltage: 2.7V ~ 5.5V

Operating temperature: - 40 ° C ~ 105 ° C

Package / enclosure: 8-SOIC (0.154 ", 3.90mm wide)

Supplier device package: 8-SOIC
