SKU: 12866
(0)

1PCS 2000W Controllable-silicon Speed Regulator 4000W Motor 220V High Power Electronic Voltage/Light/Temperature Adjust Module

TEJIATE/特加特
In stock
¥1.09
Color

Secure checkout

Friendly support

Hassle-free returns

Product introduction
1. The module adopts imported silicon controlled rectifier, with voltage resistance up to 1200V
2. The voltage regulator with peak voltage absorption circuit can effectively protect high-power thyristor, with longer service life
3. The voltage regulator can adjust the output low voltage through the precise multi turn potentiometer
4. St original imported trigger diode
5. High quality CBB capacitor, withstand DC withstand voltage 630V
6. All potentiometers are equipped with nuts and can be used without any components

Matters needing attention
This module is connected with the AC voltage of 220V, so when debugging, we must pay attention to safety, prevent the occurrence of electric shock accidents, and we are not responsible for  all accidents.
Product parameters

Module size: 60mm * 48mm * 28mm

Net weight: 43g

Input voltage: AC 220V

Voltage regulation: 50v-200v

Limited power: 2000W

Maximum current limit: 25A

External dimension: 60mm (knob direction): 48mm * 28mm

Working temperature: ~ - 40 ℃ ~ 125 ℃

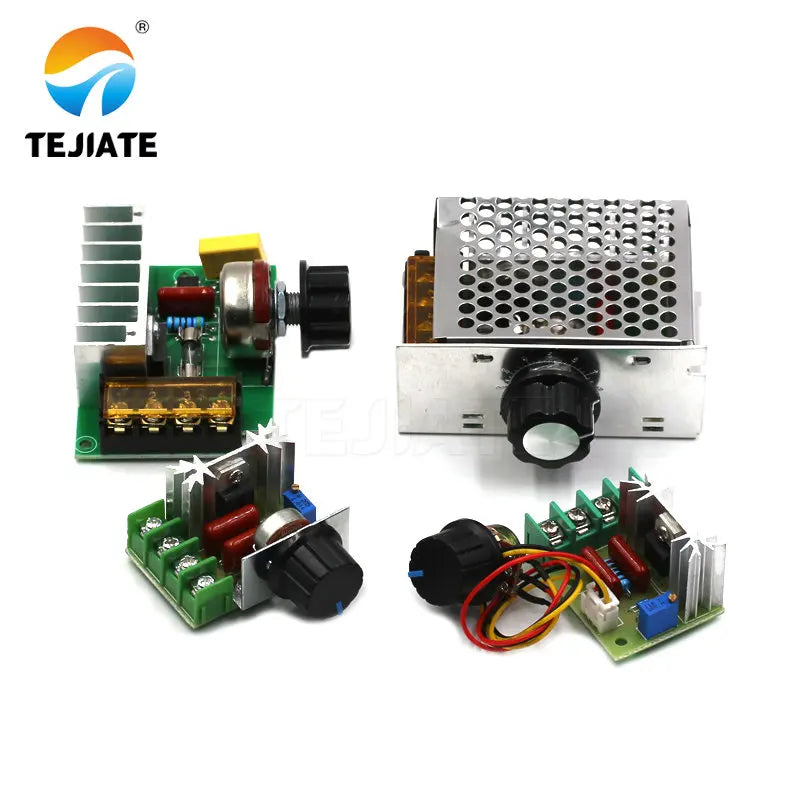

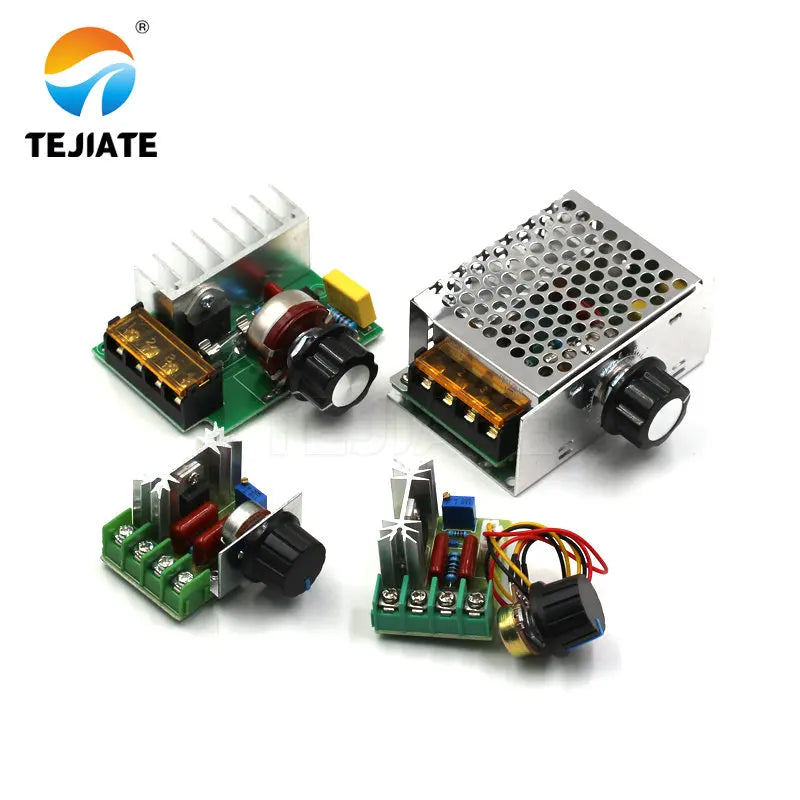

12866-(1)

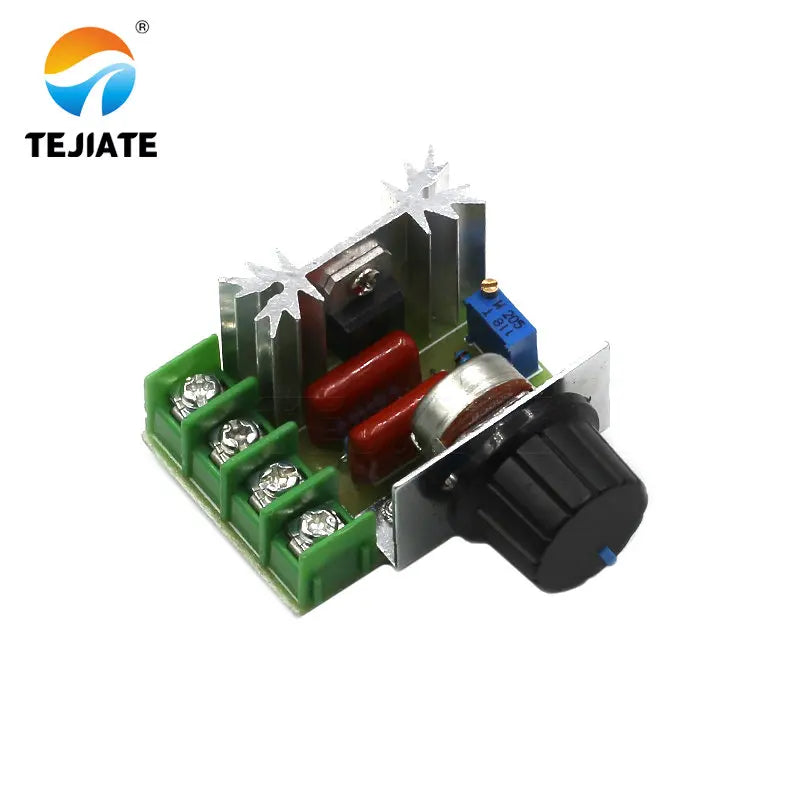

2000W Controllable silicon speed regulator 220V electronic  Voltage/Light/Temperature adjust module
12867-(1)

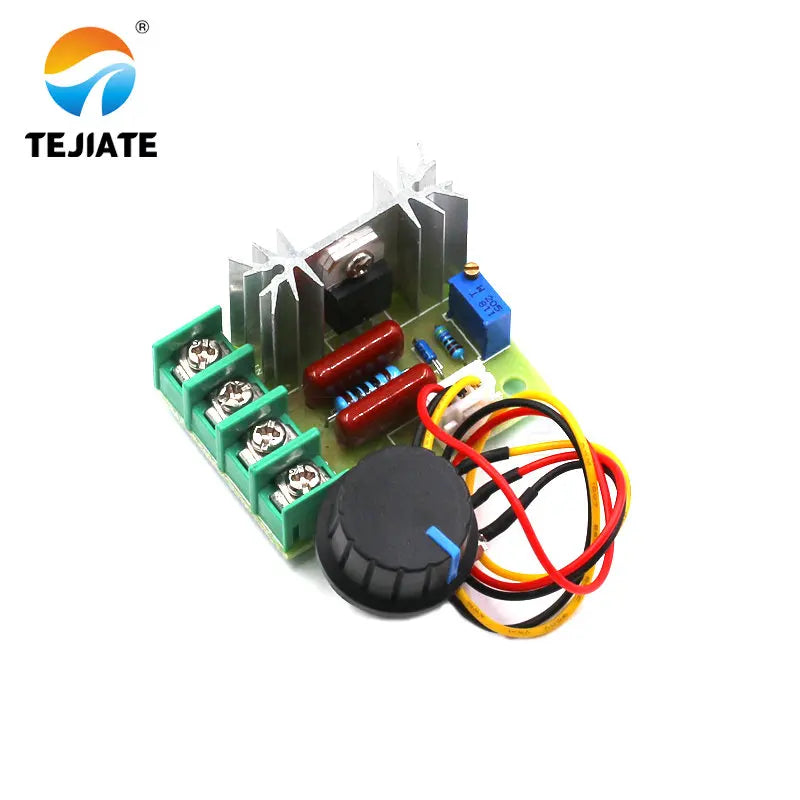

2000W High-power controllable silicon speed regulator 220V electronic  Voltage/Light/Temperature adjust module
14975-(1)

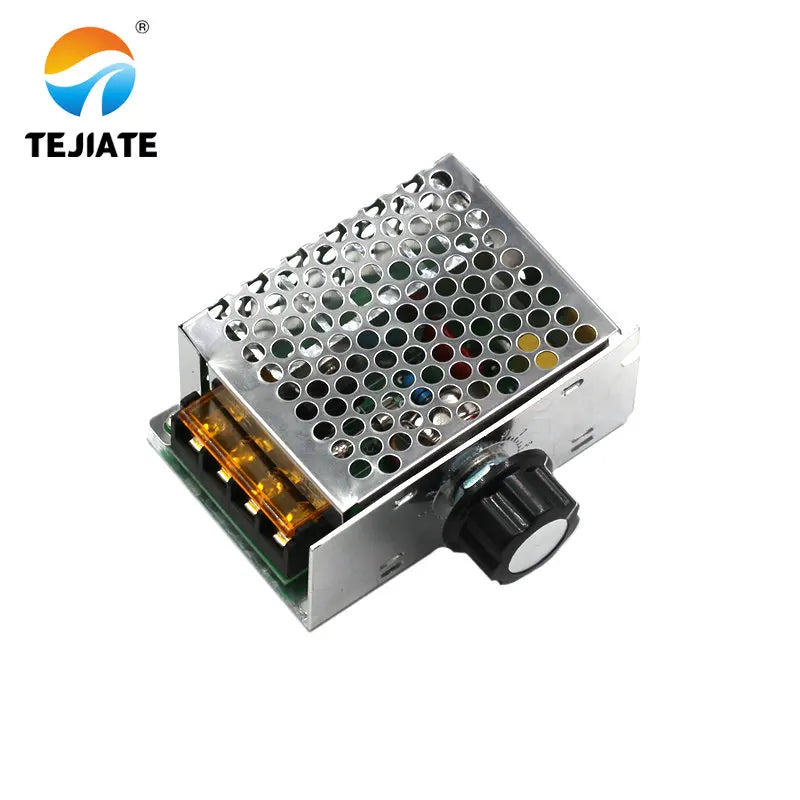

4000W Controllable silicon speed regulator 220V electronic  Voltage/Light/Temperature adjust module With shell
19740-(1)

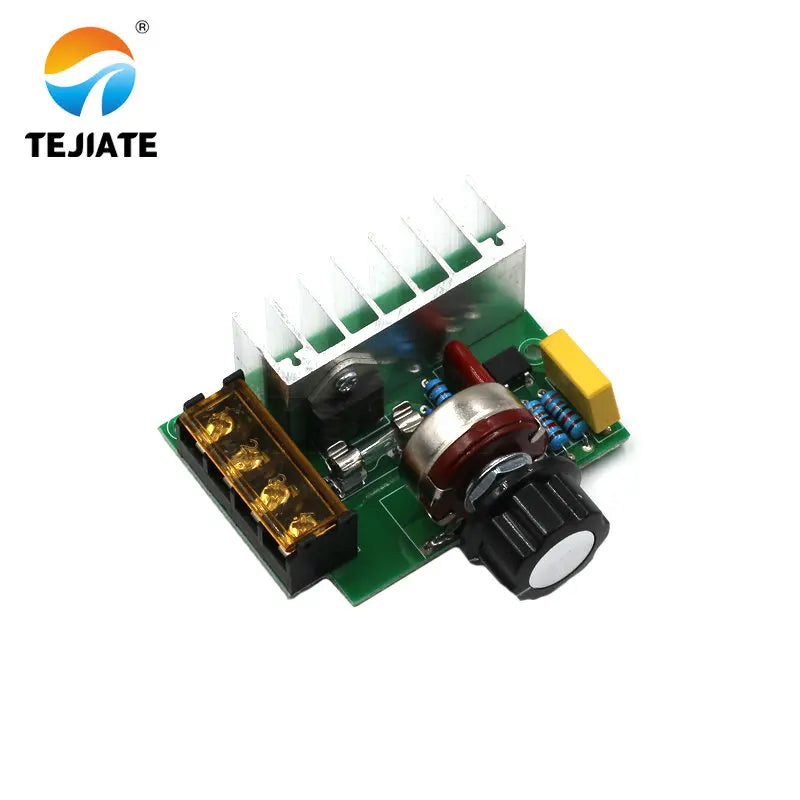

4000W High-power controllable silicon speed regulator 220V electronic  Voltage/Light/Temperature adjust module Without shell
大功率电子调压调光调温模块-(3)大功率电子调压调光调温模块-(4)
Product application

Connect the product in series in the circuit of desk lamp or electric appliance, (i.e. connect any one of the disconnection wires or zero wires of desk lamp and electric appliance, and connect the two wires of the "product") rotate the rotary rod of potentiometer, which can play the role of light and shade adjustment, speed regulation, voltage regulation and temperature regulation, and it is very convenient to use.

This product is suitable for: using new bidirectional high-power thyristor, the current can reach 25 A, solving the over-current problem caused by the electric furnace wire, the resistance under the condition of cooling, adjusting the output voltage of electricity conveniently, adjusting arbitrarily between 50-220 V, using public electrical appliances, such as: adjusting the heat of electric furnace and water heater, adjusting the light of lamps, adjusting the speed of small motor, soldering iron Adjust the temperature, etc. so as to achieve the effect of adjusting the light, temperature and voltage. It can be used for large electrical appliances with the power less than 2000 Watts. Because the power is already very large, the general household appliances or small factories are enough. (the power of inductive or capacitive load should be reduced. This voltage regulator is equipped with two-way high-power SCR potentiometers with nuts, but it can be used with any element, not Often convenient and practical)
