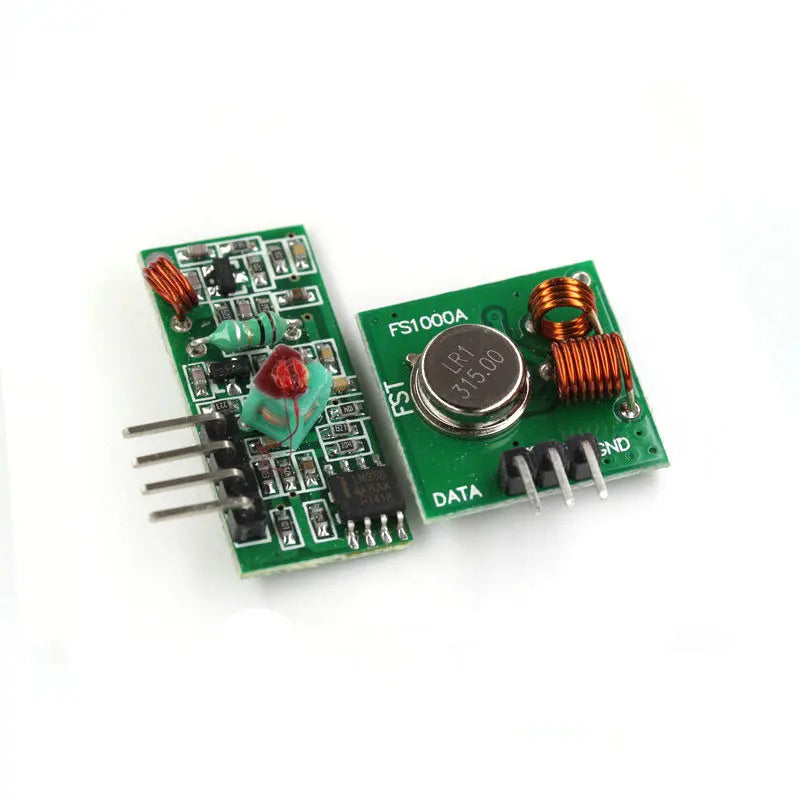

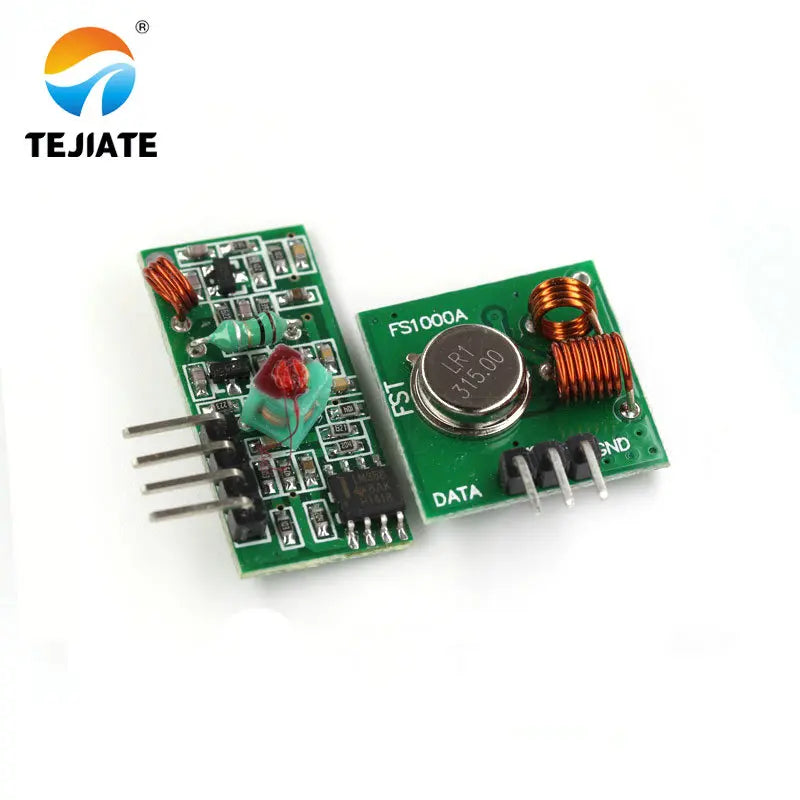

1pair 315MHZ RF Transmitter And Receiver 315M Link Kit For Arduino ARM MCU DC 5V External Antenna AM Mode VCC Voltage Module
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns

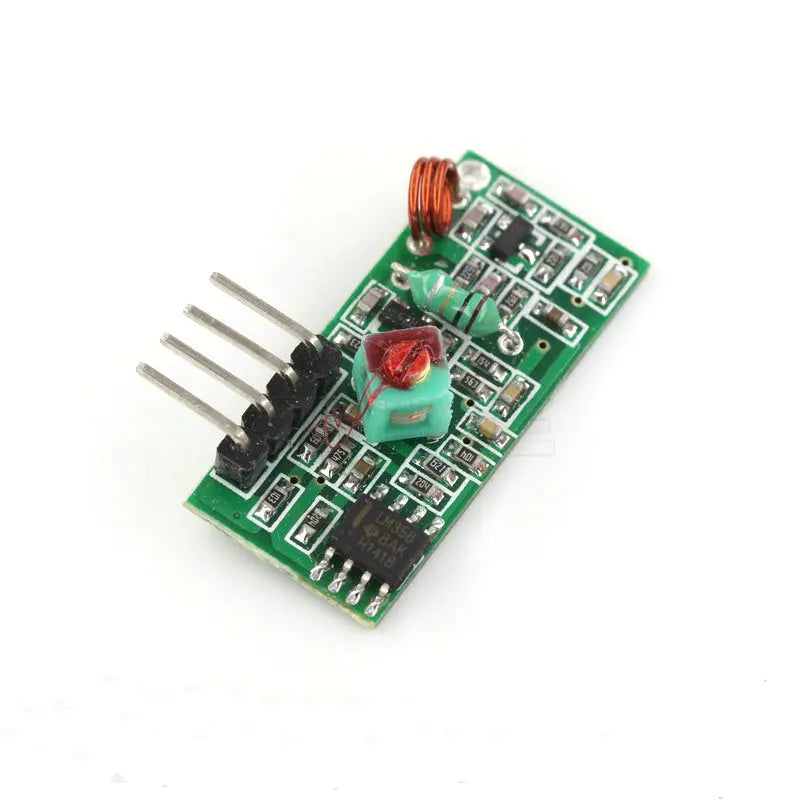

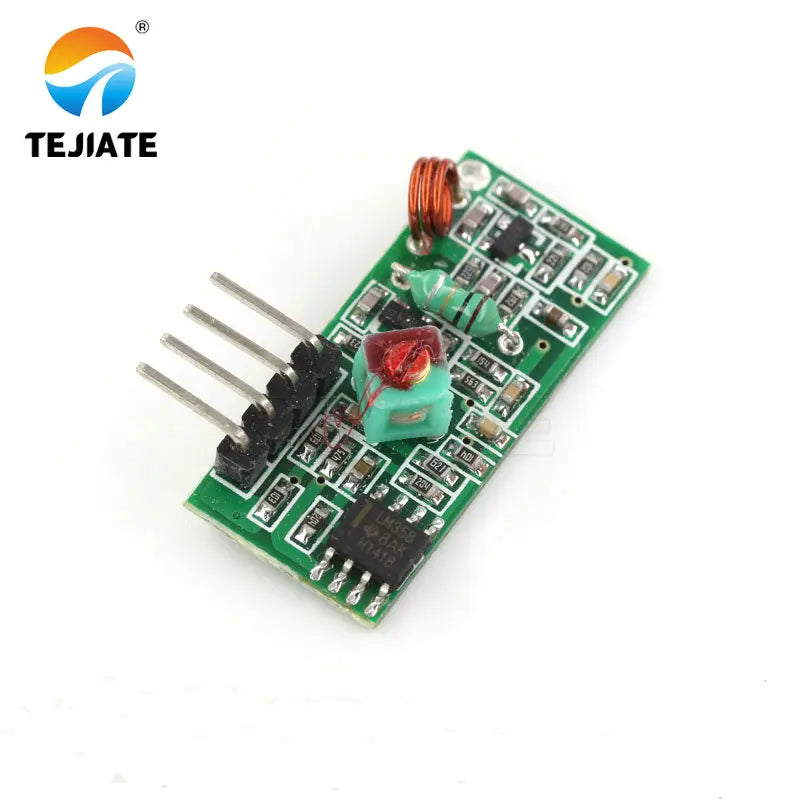

Receiving module technical parameters：
Operating voltage: DC5V
Quiescent Current: 4MA
Receiving frequency: 315MHZ
Receiver sensitivity: -105DB
Size: 30*14*7mm
External antenna: 32CM single core wire wound into a spiral

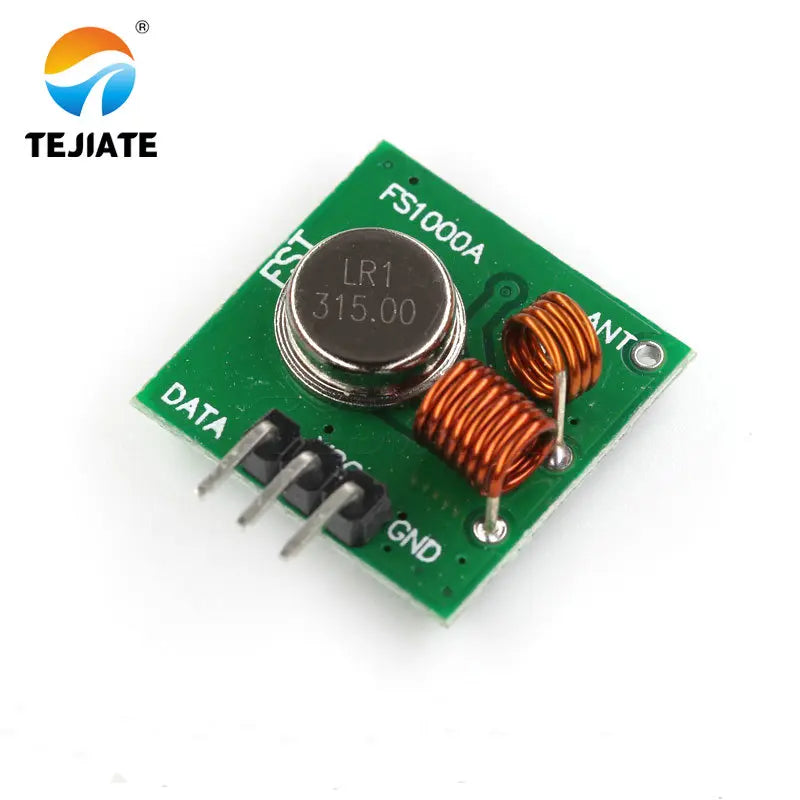

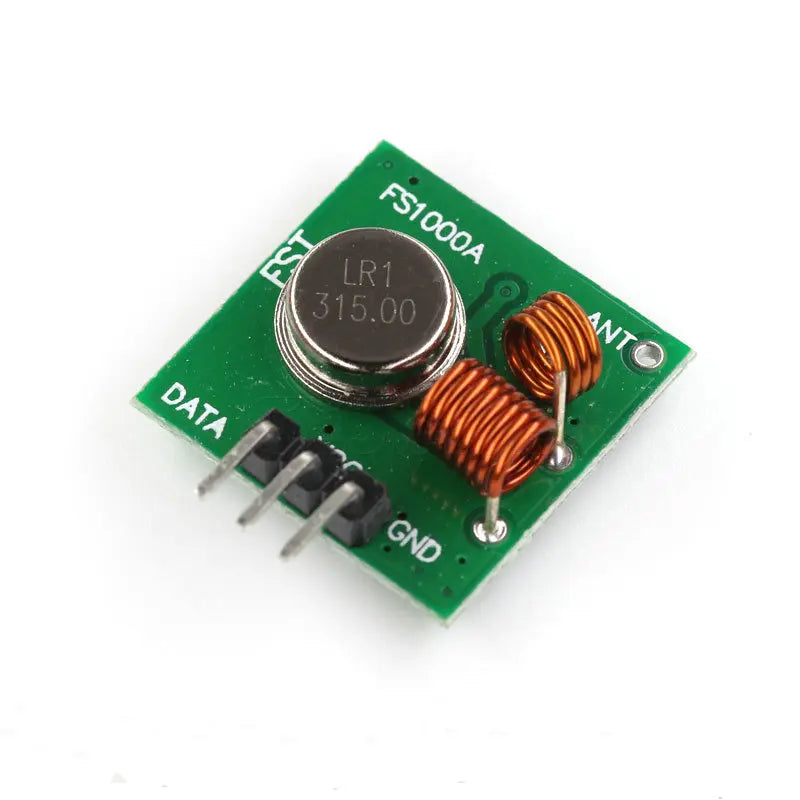

Launcher technical parameters：
Launch distance: 20-200 meters (different voltages, different effects)
Operating voltage: 3.5-12V
Dimensions: 19*19mm
Working method: AM
Transmission rate: 4KB/S
Transmission power: 10mW
Transmission frequency: 315M
External antenna: 25cm ordinary multi-core or single core wire
Pin arrangement from left to right: (DATA;VCC;GND)
Application Environment：
Remote control switch, receiving module, motorcycle, car anti-theft products, home security products, electric door, shutter doors, windows, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote control retractable door, remote control roller shutter, translation doors, door opener remote control, etc. closing door control system, remote control curtains, alarm host, alarm, remote controlled motorcycles, electric cars remote control, remote control MP3.
Note：
VCC voltage must be consistent with the module's operating voltage, and must do a good job of power supply filtering;
Effect of antenna reception module drastically, then 1/4 wavelength antenna, generally use single core wire 50 ohms, an antenna length of about 17cm 315M;
The position of the antenna also influences the receiving effect of the module. During installation, the antenna is as straight as possible, away from the shield, high voltage, and the source of the interference. When used, the receiving frequency, decoding method, and oscillation resistance should be matched with the emission.
