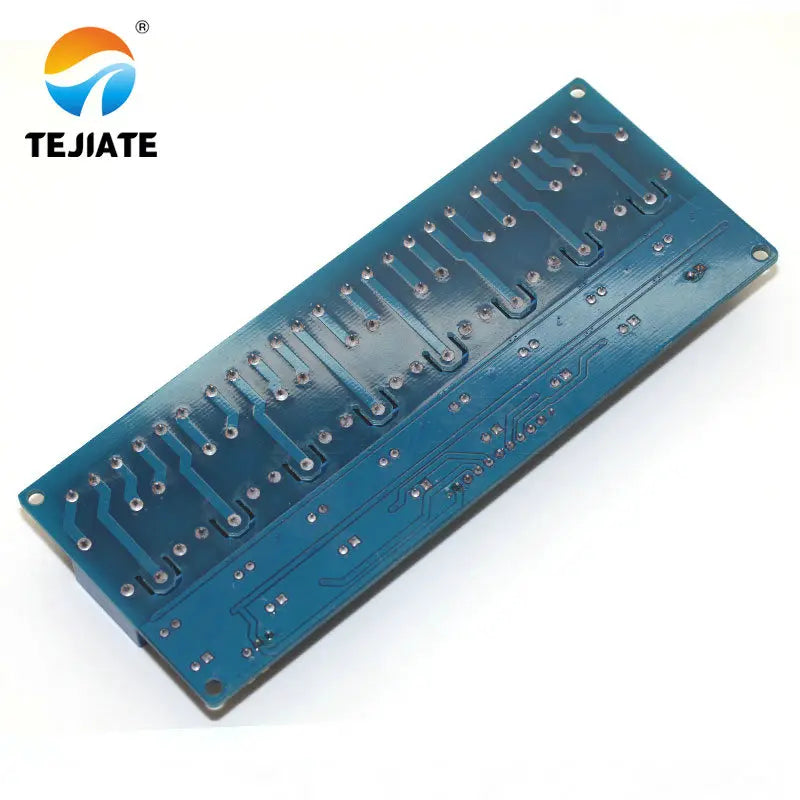

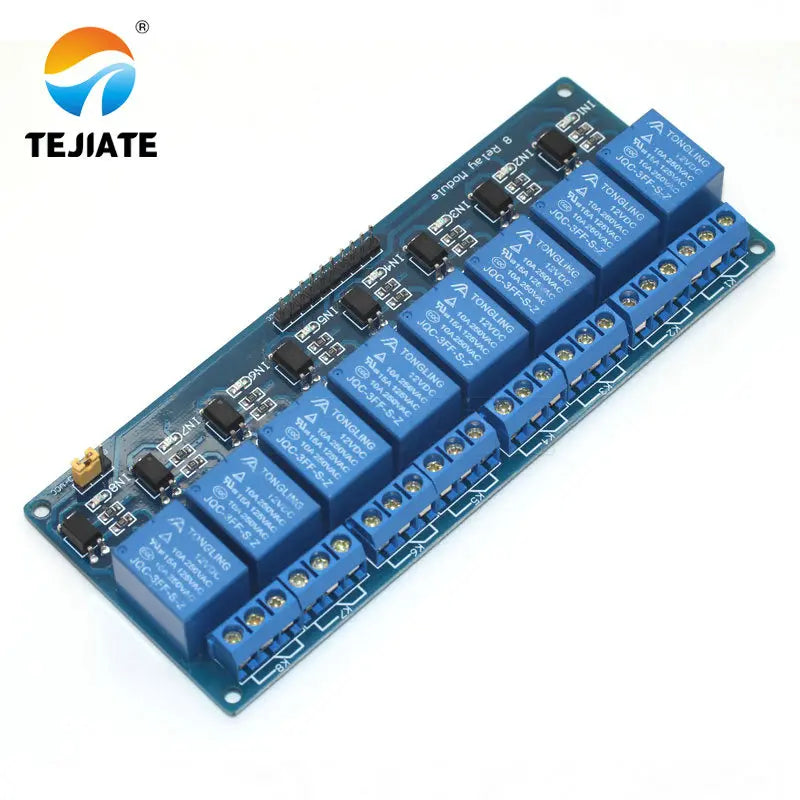

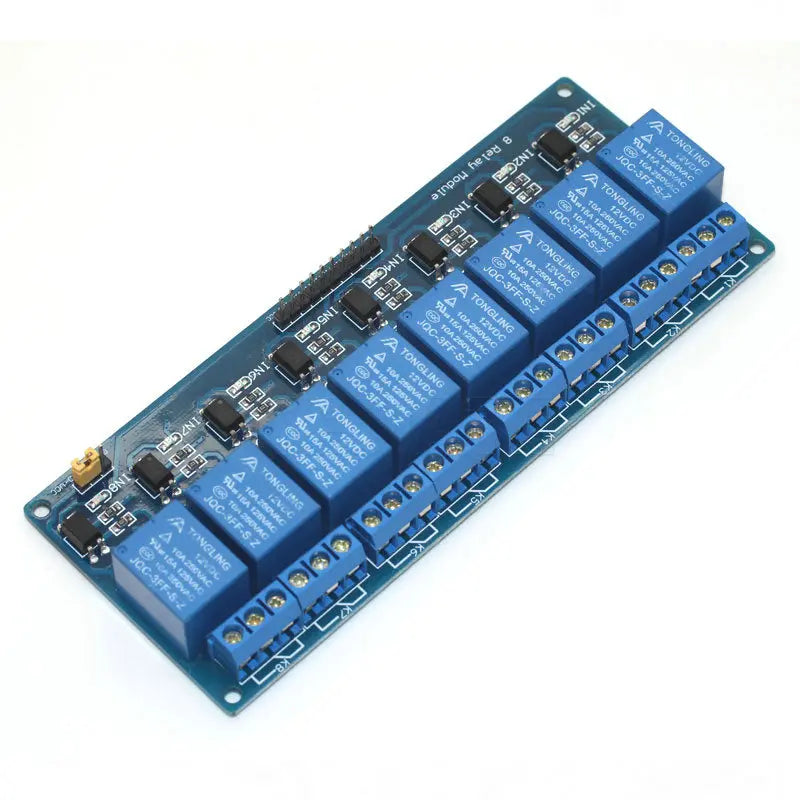

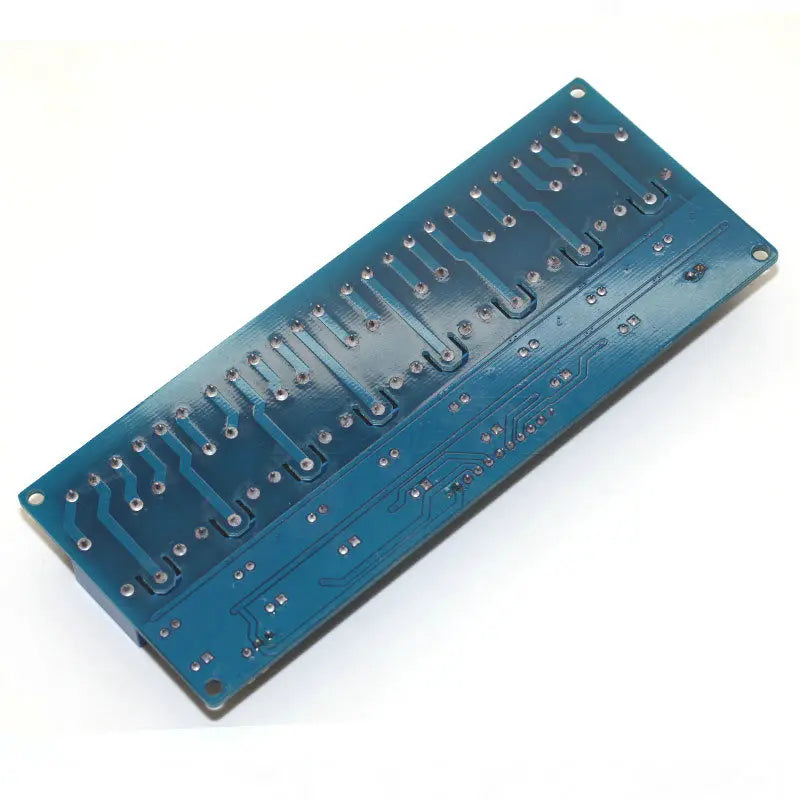

12V 8 channel relay module with optocoupler. Relay Output 8 way relay module

39477

Adjustable Voltage Module

1PCS New version ESP-12F (ESP-12E upgrade) ESP8266... $ 1.65 1PCS New ESP8266 Web Sever serial WiFi expansion b... $ 5.08 OTA WeMos D1 CH340 CH340G WiFi Development Board E... $ 3.42 ESP8266 ESP-12E ESP12E (Replace ESP12 ESP-12) ESP8... $ 1.96 1PC ESP8266 serial WIFI model ESP-03 Authenticity ... $ 3.28 1pcs Upgraded version ESP-01 ESP8266 serial WIFI w... $ 2.05 1PCS ESP-01S ESP8266 serial WIFI Wireless Transcei... $ 1.63 SESP8266 ESP-12 ESP-12F CH340G V2 USB WeMos D1 Mi... $ 2.23 1PCS ESP-12S (ESP-12F upgrade) ESP8266 remote seri... $ 2.08 ESP8266 ESP-07S Updated version Serial WIFI Wirele... $ 2.17

• 8 channel relay module
• Features

 Using high-current relay , AC250V 10A DC30V 10A

 Contact some independent wiring , safe and reliable

 Standard interface , can be extended in a variety of development board

 With fixed screw holes for easy installation

 Suitable for a variety of platforms such as 51/AVR/AVR/ARM

Module Description :

1 , the module complies with international safety standards , the load control area and regional isolation tank ;

2, using double-sided FR-4 circuit board design, high-end chip production process ;

3, using loose music authentic relay control ;

4, with the relay instructions , pull off, disconnect does not shine ;

5, the signal input has a low signal , often beginning with a common terminal will be turned on ;

6 , the relay can control the various devices and the load ;

7 , 8 and 8 normally open normally closed contact ;

8 , blue KF301 terminals to the control line is more convenient.

9 , Module size : 138m * 56mm * 18.5mm ( L * W * H ) , Weight : 120g

10 with 4 fixing bolt holes , hole 3.1mm, pitch 131mm * 49.5mm

11 , finished by 100% functional testing and stability testing

Two module interface :

1, VCC: 12V power supply connected to the positive

2, GND: 12V power supply connected to the negative

3, IN1-IN8: trigger signal , active low

Relay outputs : a 12- line interface, the interface can be directly connected to all leads , user-friendly

1, NO1 - NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM

2, COM1 - COM8 Relay Common Interface

3, NC1 - NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
