Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: 00033-10
(0)

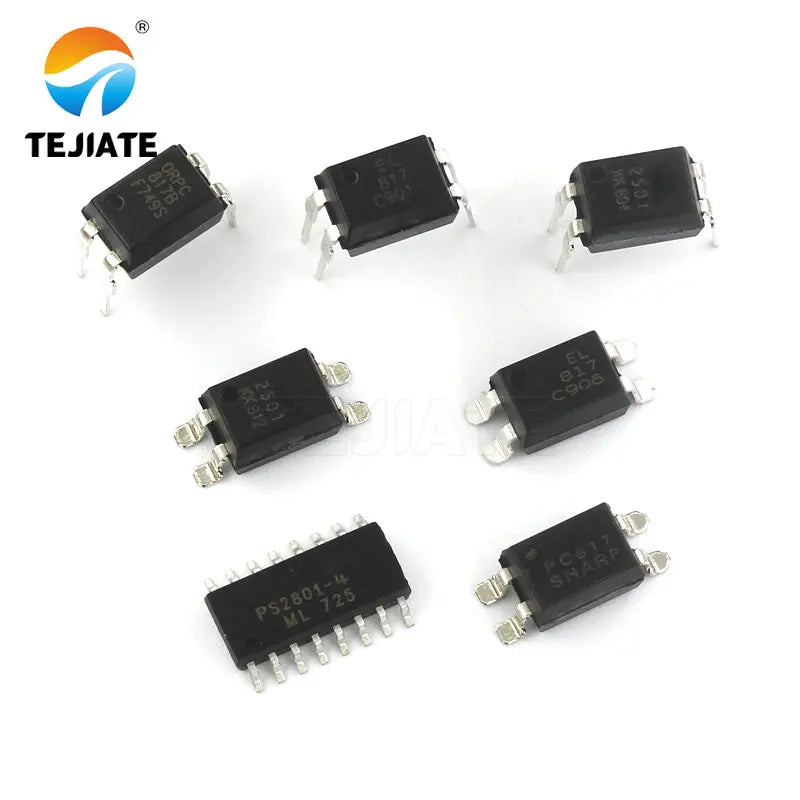

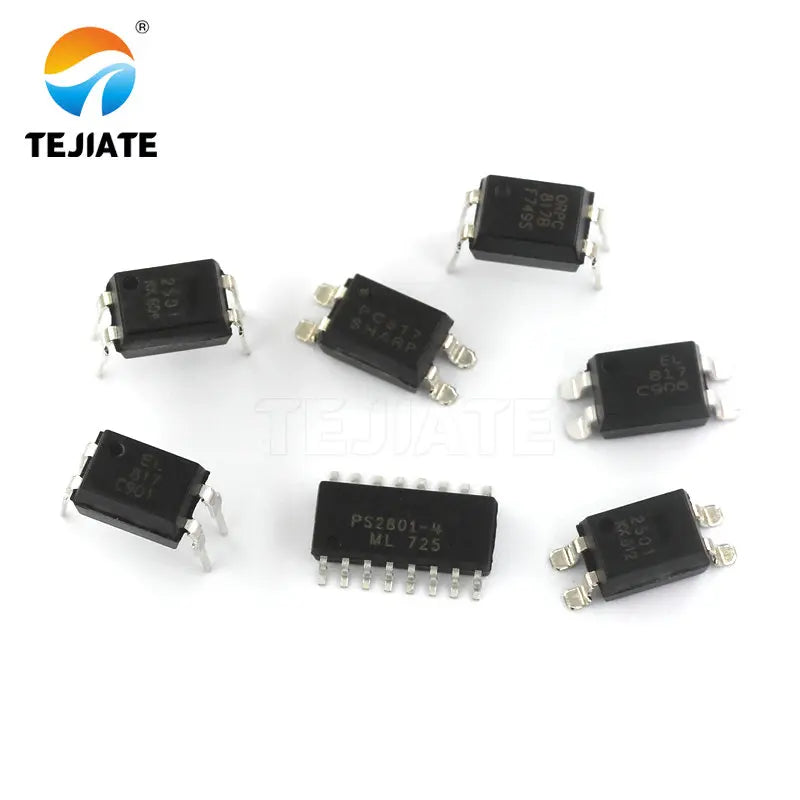

10PCS TEJIATE Optocoupler 817 Serial PC817B PC817C EL817C SOP4 DIP4 Optical Isolator SMD Directly Insert Type

TEJIATE/特加特
In stock
Regular price ¥0.99
Color


Secure checkout

Friendly support

Hassle-free returns



收藏加购图片
Product features

Strong corrosion resistance
High temperature performance, small size
High reliability
Long life
High quality, green and environmental protection
Durable, safe and reliable

Product Name: optoelectronic coupling chip

Model: pc817b
Forward current: 50mA
Peak forward current: 1A
Reverse voltage: 6V
Power consumption: 70mW
Storage temperature: - 55C CTO + 125 ° C

Current transmission ratio: 50% (limited value)
High isolation voltage: 5000v (effective value)
Forward current: 50mA
Peak forward current: 1A
Reverse voltage: 6V
Power consumption: 70mW
Collector Emitter Voltage: 35V
Emitter collector voltage: 6V
Collector current: 50mA, collector power consumption: 150MW
Total power consumption: 200MW
Operating temperature: - 30 ° C + 100 ° C
Collector Emitter Saturation Voltage: 0.1V (typical value)
Cut off frequency: 80kHz
Current transmission ratio: 50% - 600%

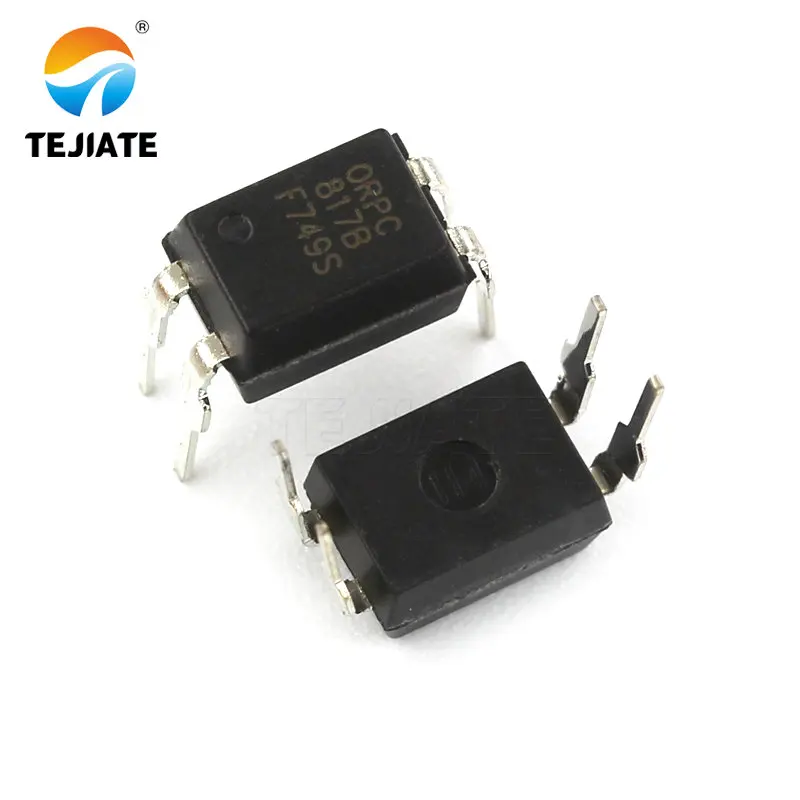

10PCS TEJIATE Optocoupler 817 Serial PC817B DIP4 Optical Isolator  Directly Insert Type

00033-(1)

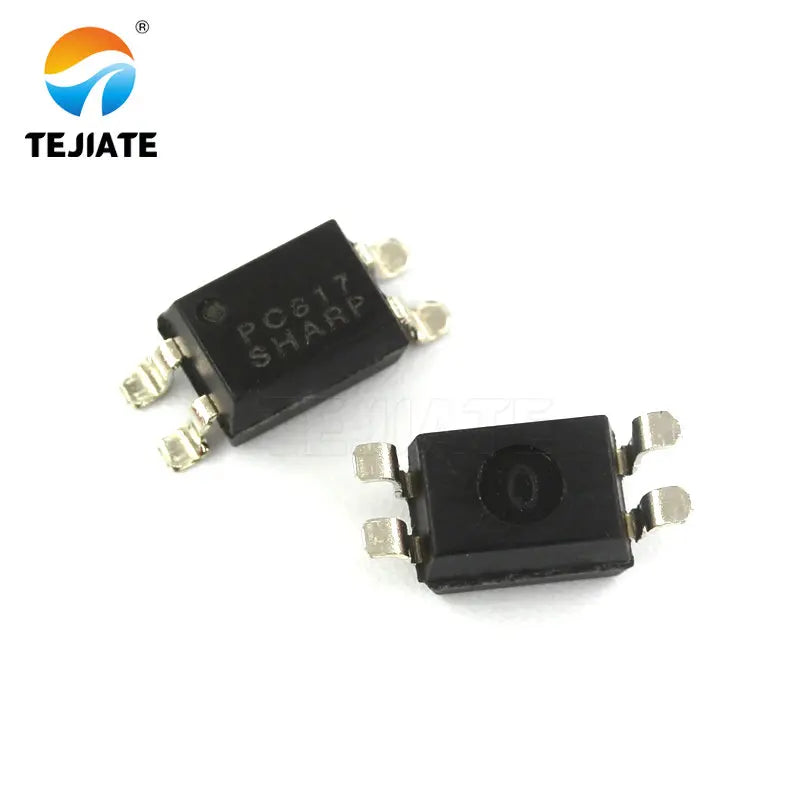

10PCS TEJIATE Optocoupler 817 Serial PC817C SOP4 Optical Isolator SMD Type

08880-(1)

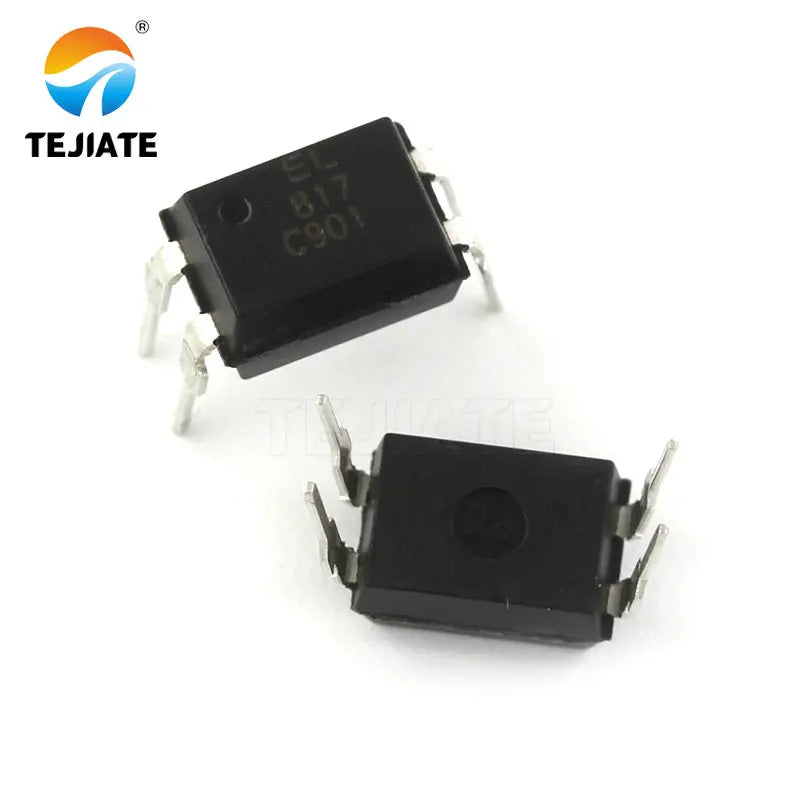

10PCS TEJIATE Optocoupler 817 Serial PC817C DIP4 Optical Isolator Directly Insert Type

02131-(1)

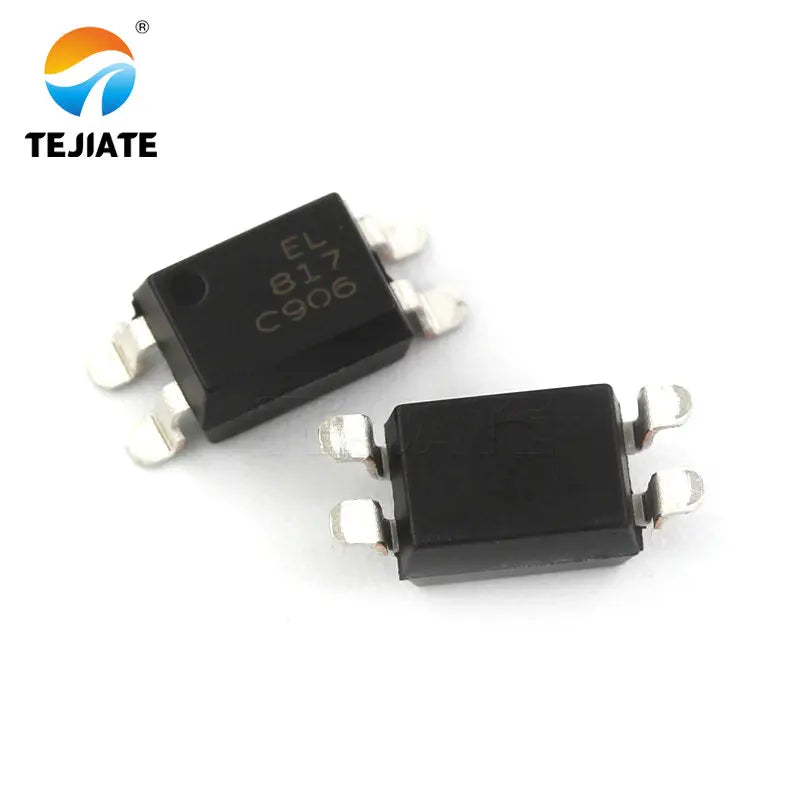

10PCS TEJIATE Optocoupler 817 Serial EL817C SOP4 Optical Isolator SMD Type

04336-(1)
