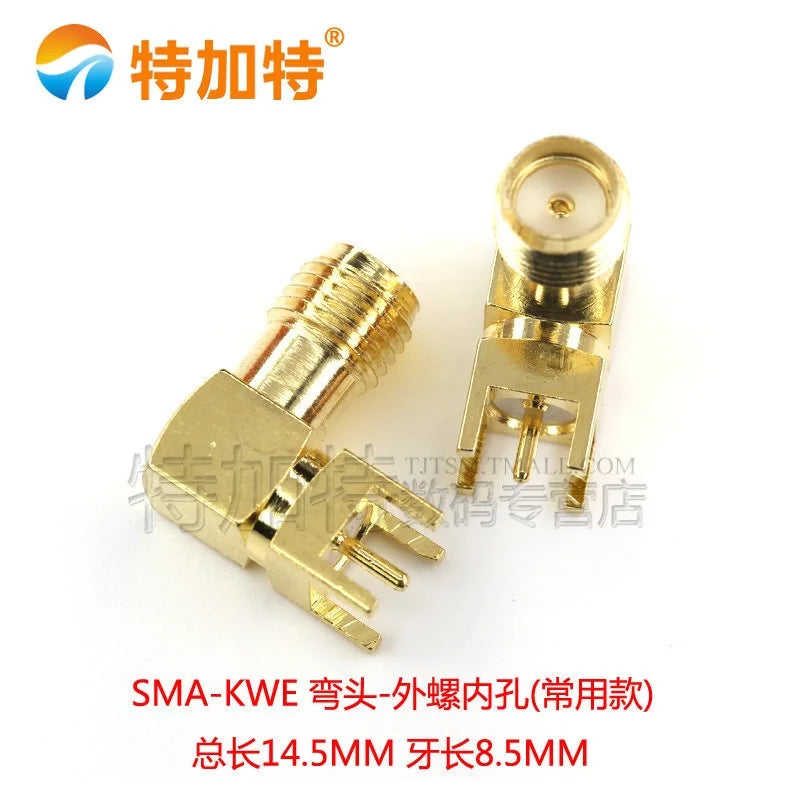

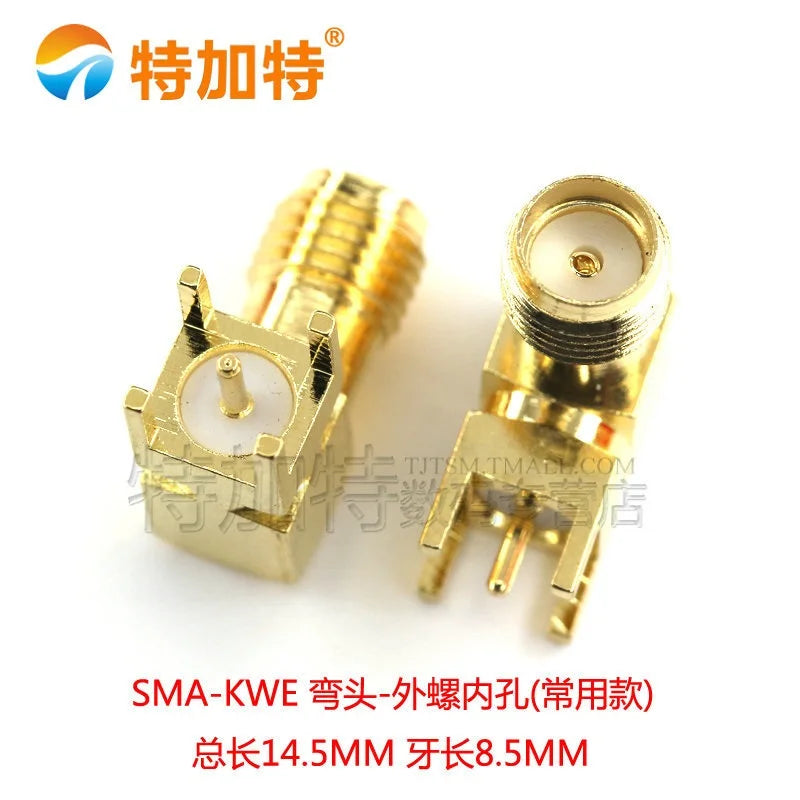

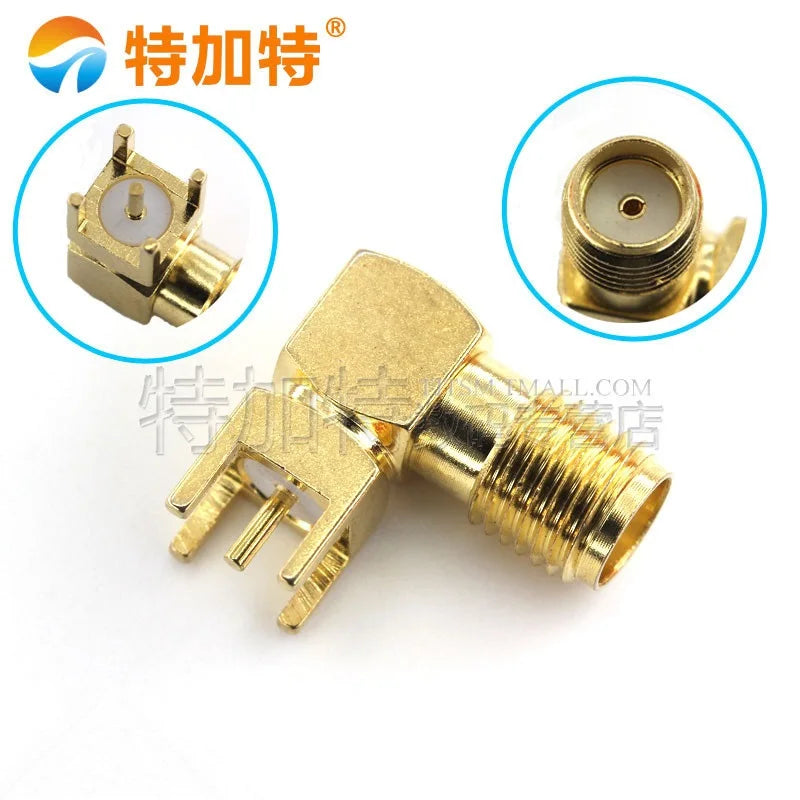

SMA Female Jack Right Angle Solder PCB Mount RF Connector

Quantity : 10pcs

Temperature range: -65 ~ +165℃ (PE Cable, -40 ~ +85℃)

Vibration: MIL-STD-202, Method 213

Characteristic impedance: 50Ω

Frequency range: DC ~ 12.4GHz (half rigid cable 0 ~ 18GHz)

Operating voltage: 335V max (RMS)

Pressure: 1000V RMS (minimum sea level)

Contact resistance:

The inner conductor: ≤3mΩ.

The outer conductor: ≤2mΩ.

The insulation resistance: ≥ 5000MΩ.

The insertion loss: ≤ 0.15 dB/6GHz

The voltage in Bobbi vertical flexible cable: ≤ 1.10+0.002f

Semi rigid cable: ≤1.05+0.001f

Bending type soft cable: ≤1.20+0.003f

Semi rigid cable: ≤1.10+0.001f

Durability: ≥500 times (cycles)
