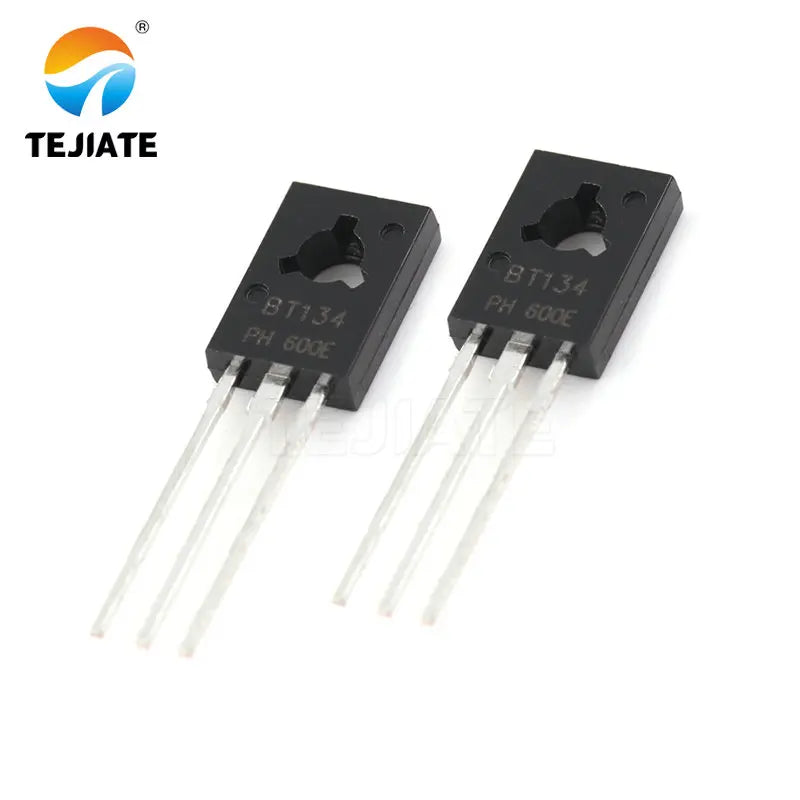

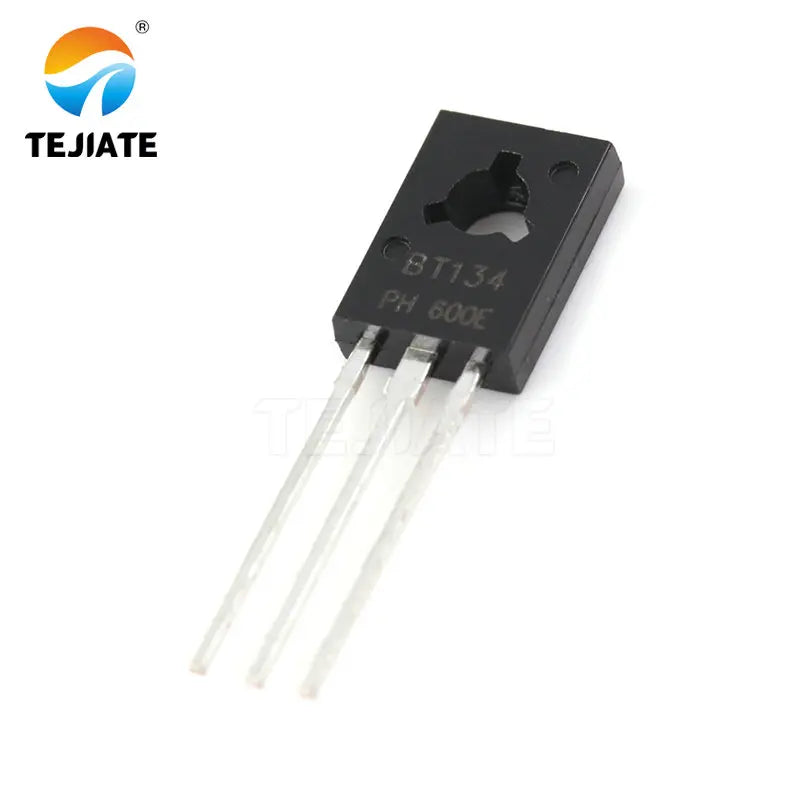

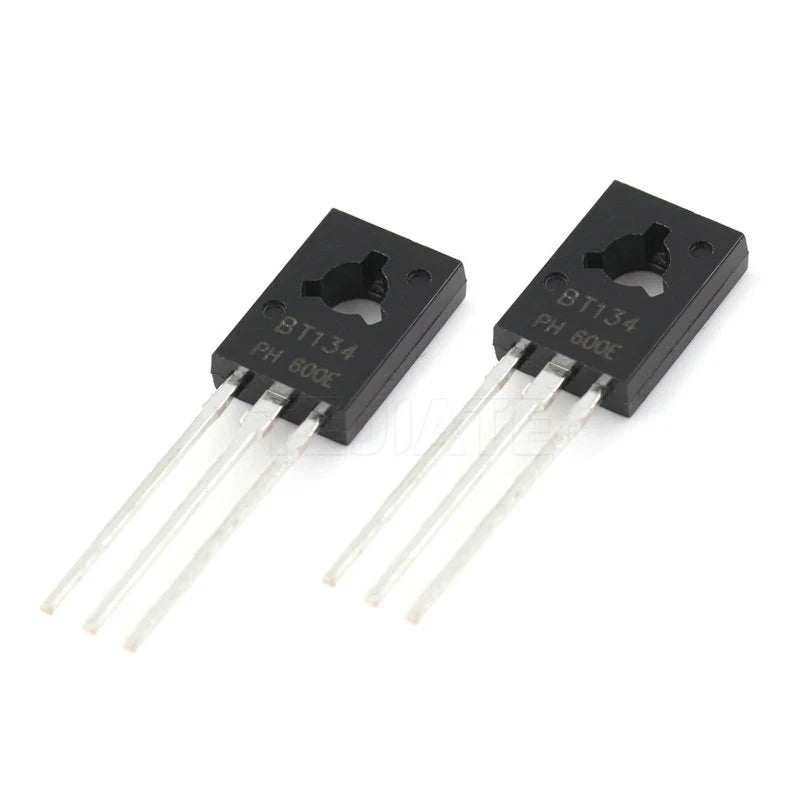

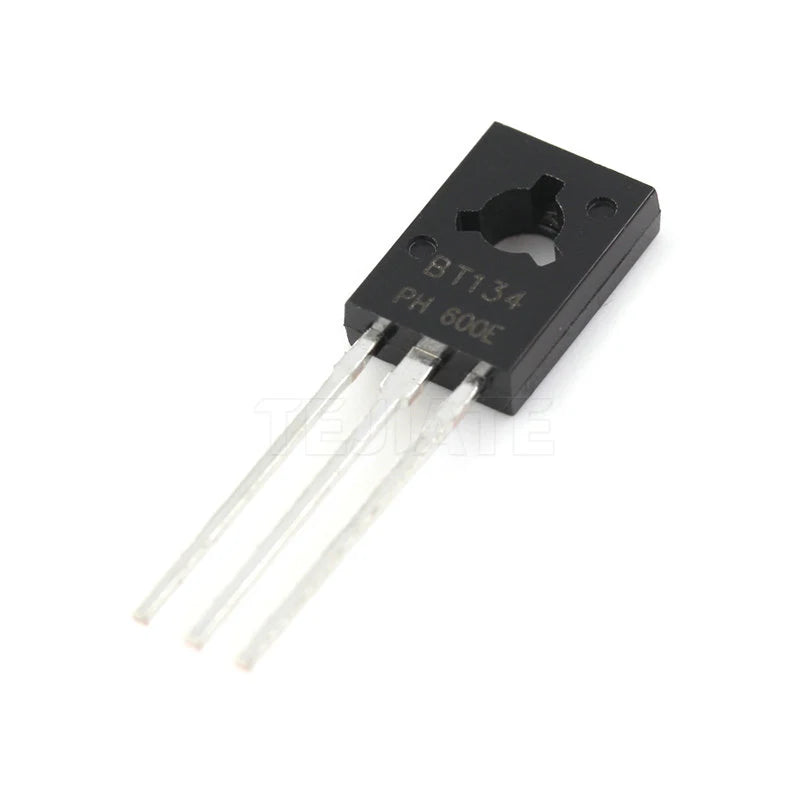

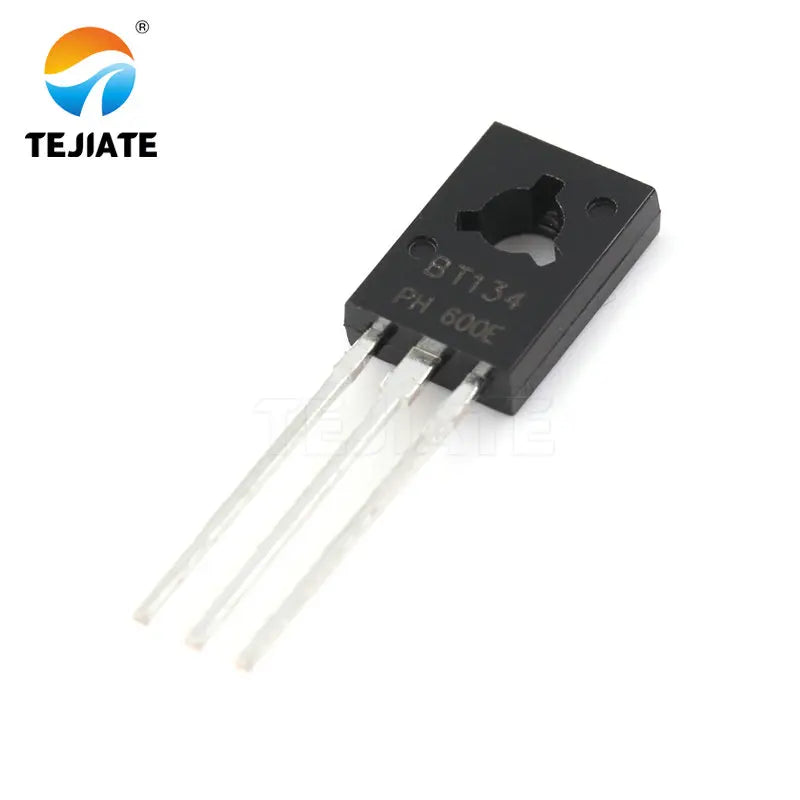

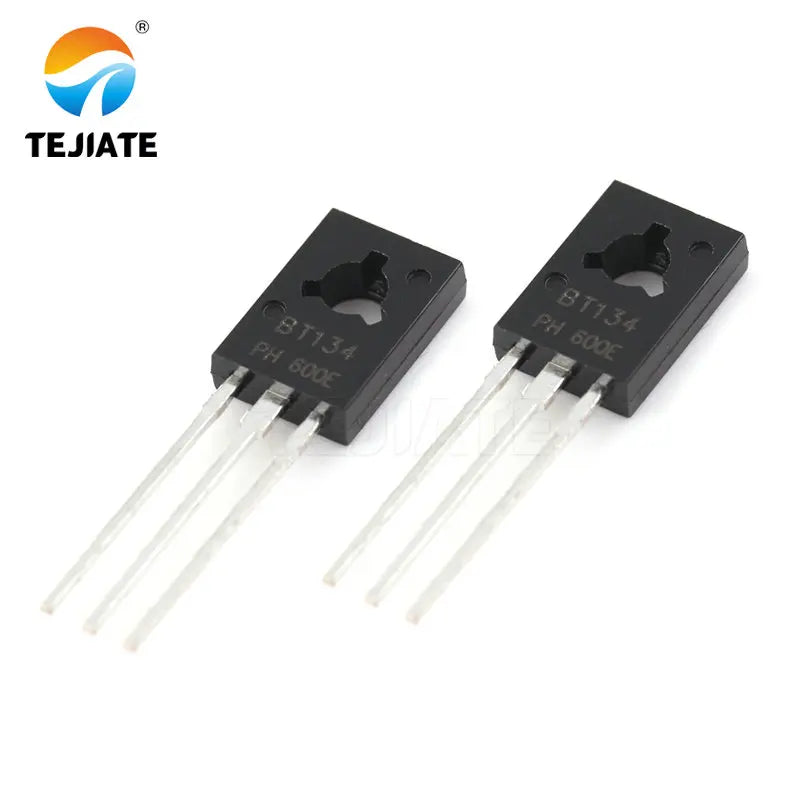

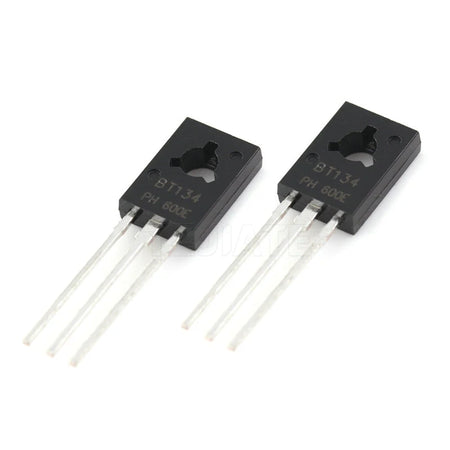

BT134-600E Parameter specification:

Working temperature: - 40 ° C ~ 175 ° C (TJ)

Installation type: through hole (THT)

Reverse recovery time (TRR): 355ns

Grid charge: 185nc

TD (on / off) value at 25 ° C: 30ns / 290ns

Input type: Standard

Power (maximum): 483w

Switching energy: 4.4mj

VCE (on) at different VGE and IC: 2.4V @ 15V, 40A

Collector current IC (maximum): 80A

Part status: on sale

IGBT type: grooved field cut-off

Voltage Collector breakdown (maximum): 1200V

Packaging: pipe fittings

Series: trenchstop ®

Manufacturer's standard lead time: 14 weeks

Moisture sensitivity level (MSL): 1 (unlimited)

Lead free compliance / RoHS compliance: lead free / RoHS compliance

Pulse current collector (ICM): 160A

Test conditions: 600V, 40a, 12ohm, 15V
