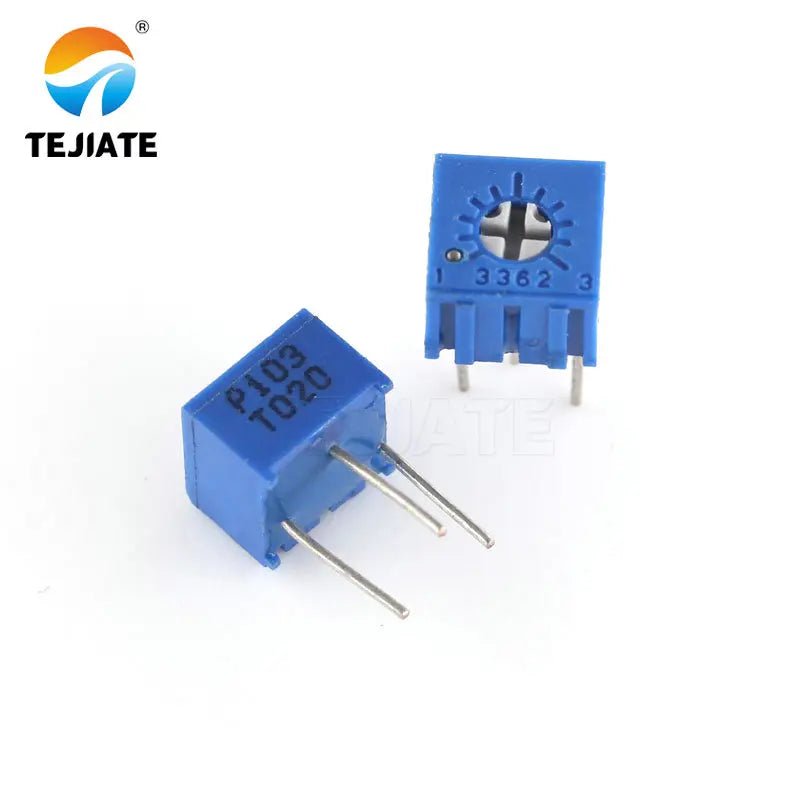

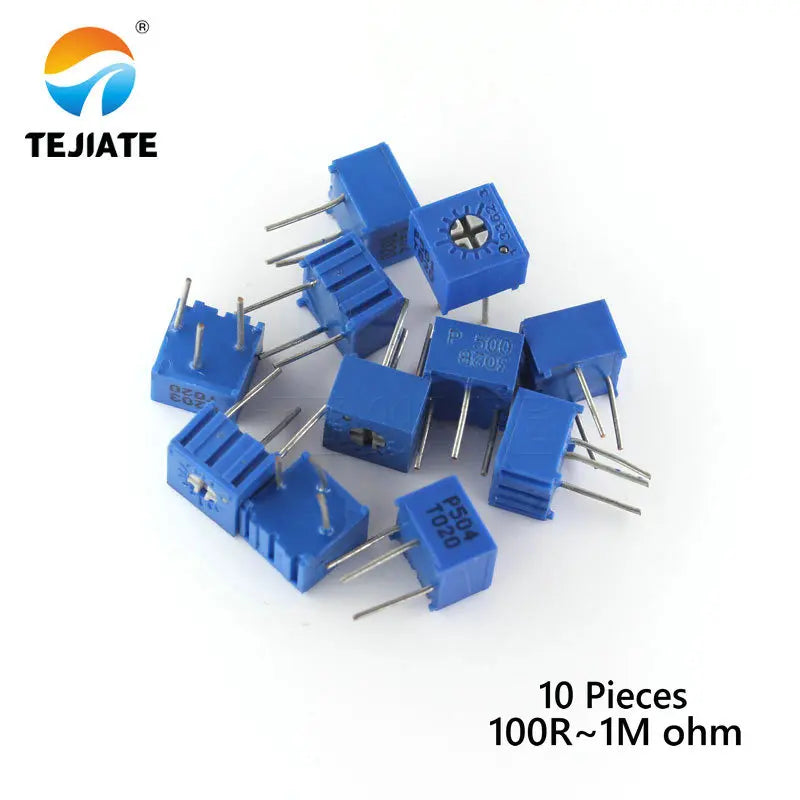

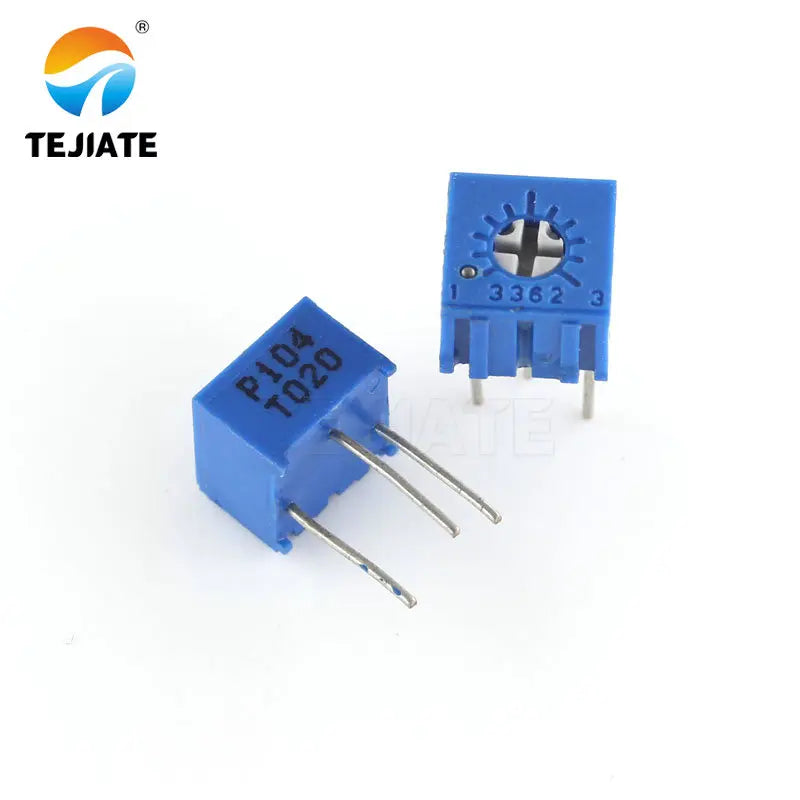

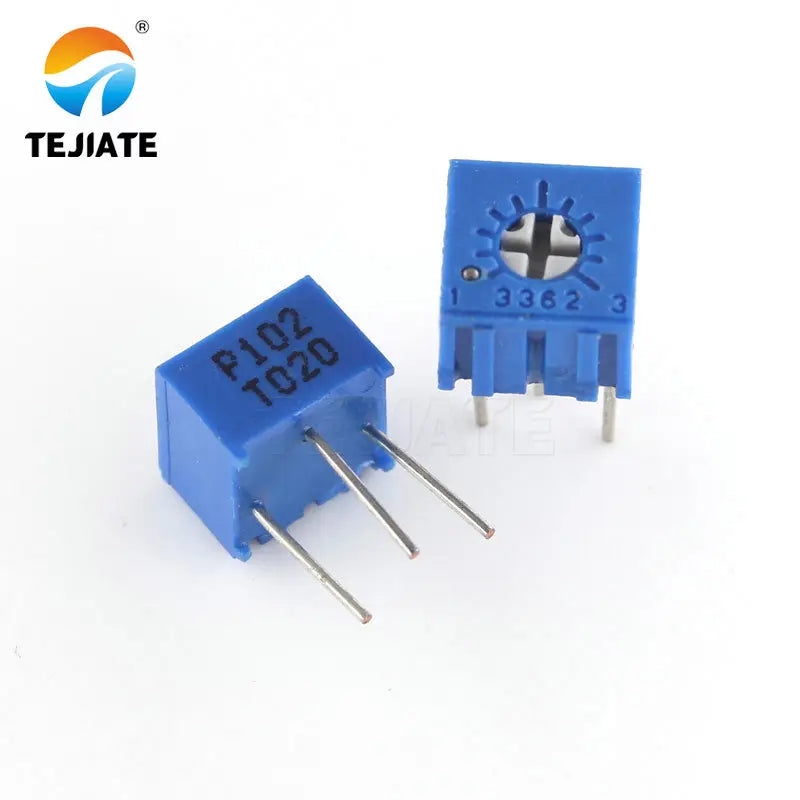

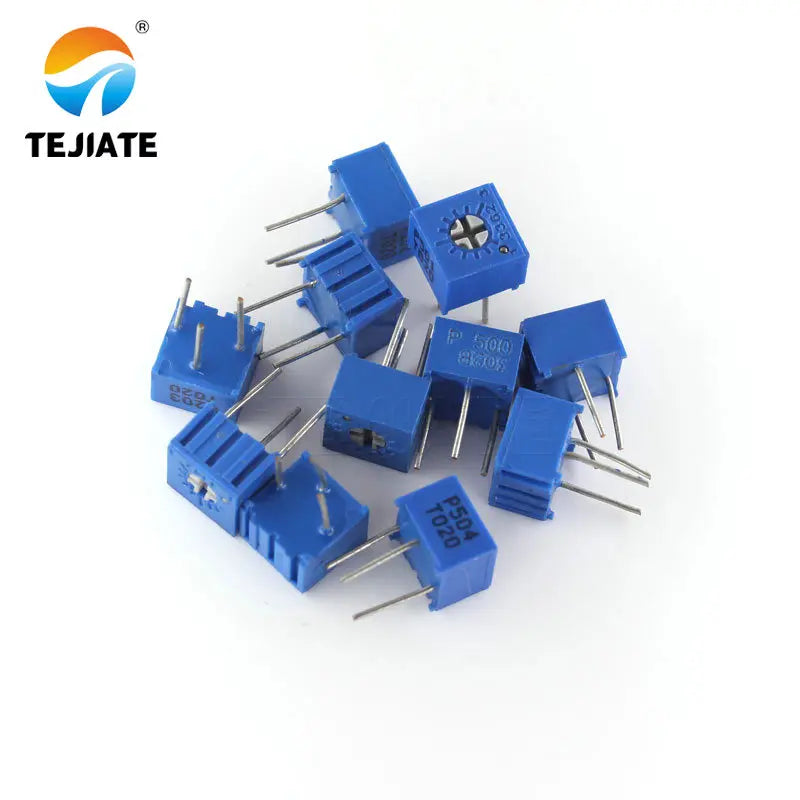

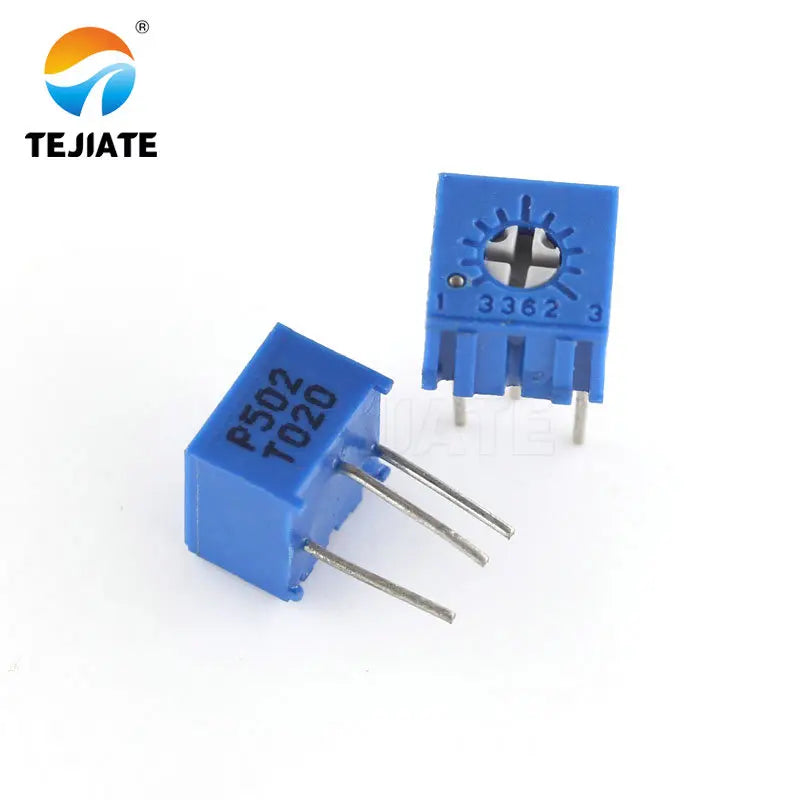

10PCS 3362P 101 201 501 102 202 502 103 203 503 104 204 504 105 Trimpo Trimmer Potentiometer 3362 500R 1K 2K 5K 10K 20K 50K 100K
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns
Electrical Cheracteristics
Standard resistance range: 10Ω~2MΩ
Resistance Tolerance: ±10%, ±20%
Terminal resistoance: ≤1%R or 2Ω
Contact Resistance Variation：≤3%R or 3Ω
Insulation Resistance: R1≥1GΩ
Winthstand Voltage: 101.3KPa 500V 8.5kPa 315V
Effective Electrical Travel: 210°±10°
Envionment Characteristics
Rated Power: 0.5w (70 ℃); 0W (125℃)
Temperature range: -55 ℃~+125℃
Temperature Coefficent: ±250, ±100ppm/℃
Temperature Vibration: △R≤±(2%R+0.1Ω), △(Uab/Uac)≤±1%
Vibration: 390m/s, 4000 times △R≤±1%R
Collision: 10~2000HZ, 0.75mm, 6h △R≤±1%R, △(Uab/Uac)≤±2%
Climate category: △R≤±3%R, R1≥100MΩ
Electrical endurance at 70℃: 0.5W, 1000h, △R≤±10%R
Mechanical endurance: 200(cycles), △R≤±10%R
Steady Damp-heat: △R≤±3%R, R1≥100MΩ
Physical Characteristics
Total Machanical travel:250°±10°
Staring Torque:≤20mN.m
Clutch Torque: ≥50mN.m
