SKU: 05015-10#2
(0)

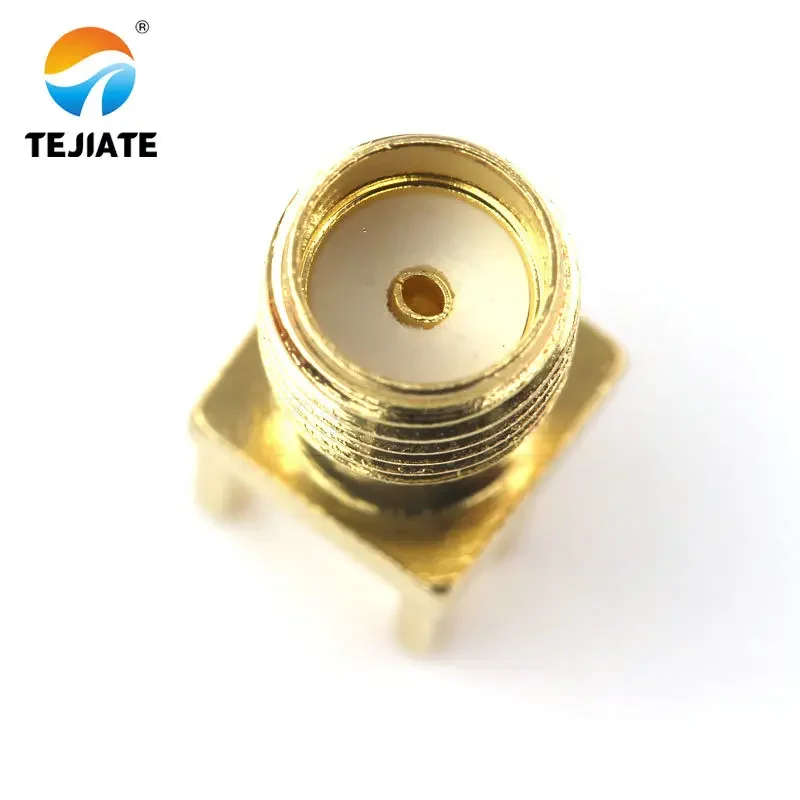

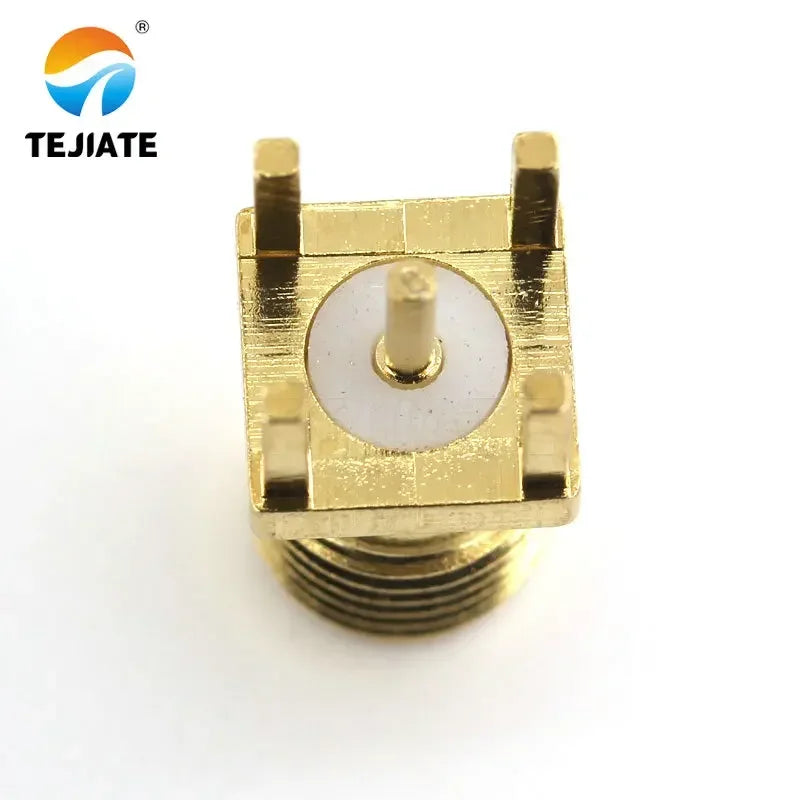

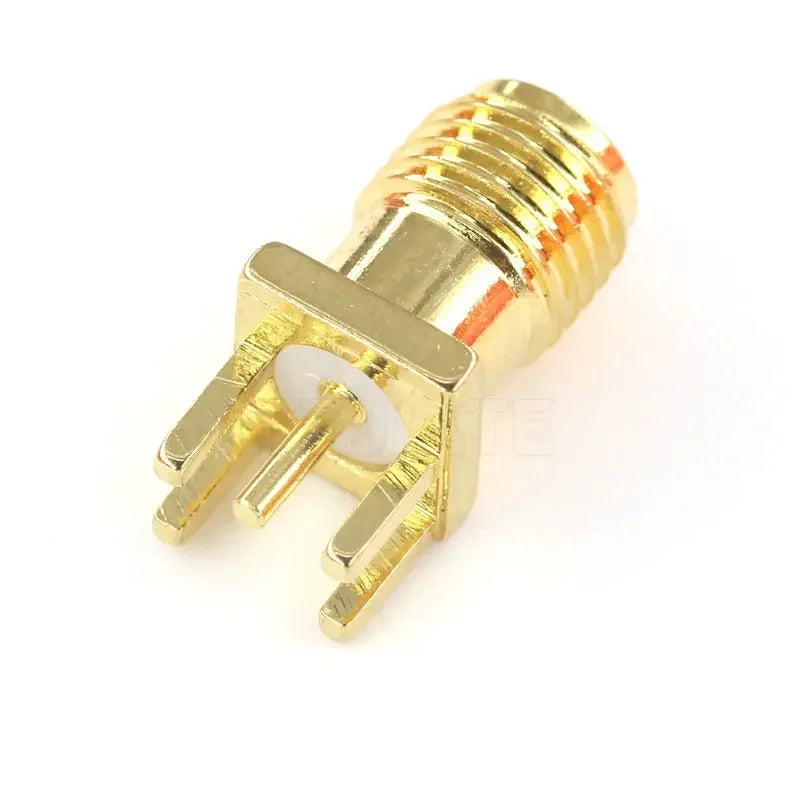

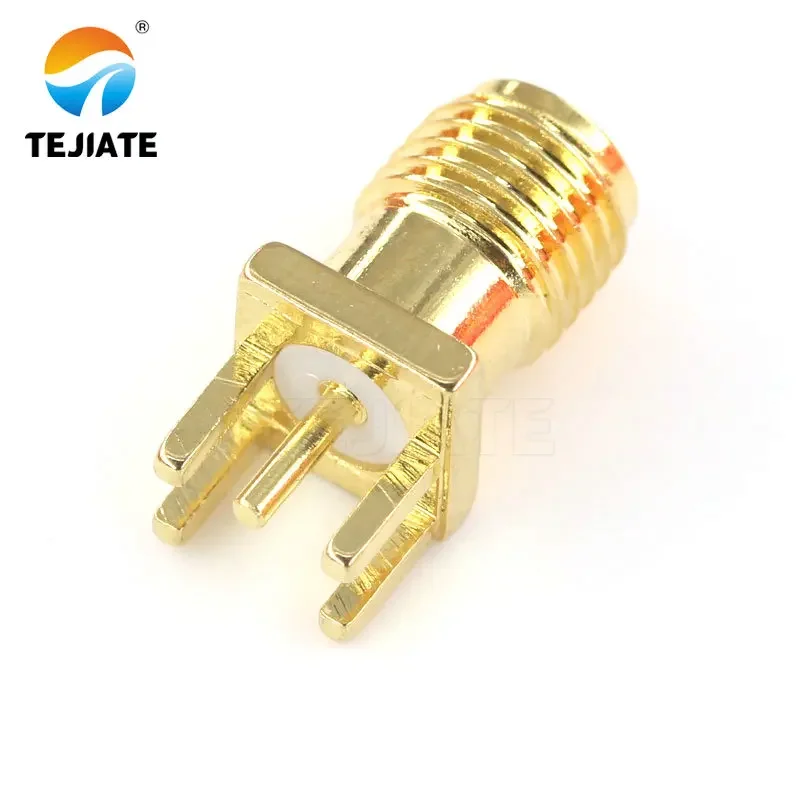

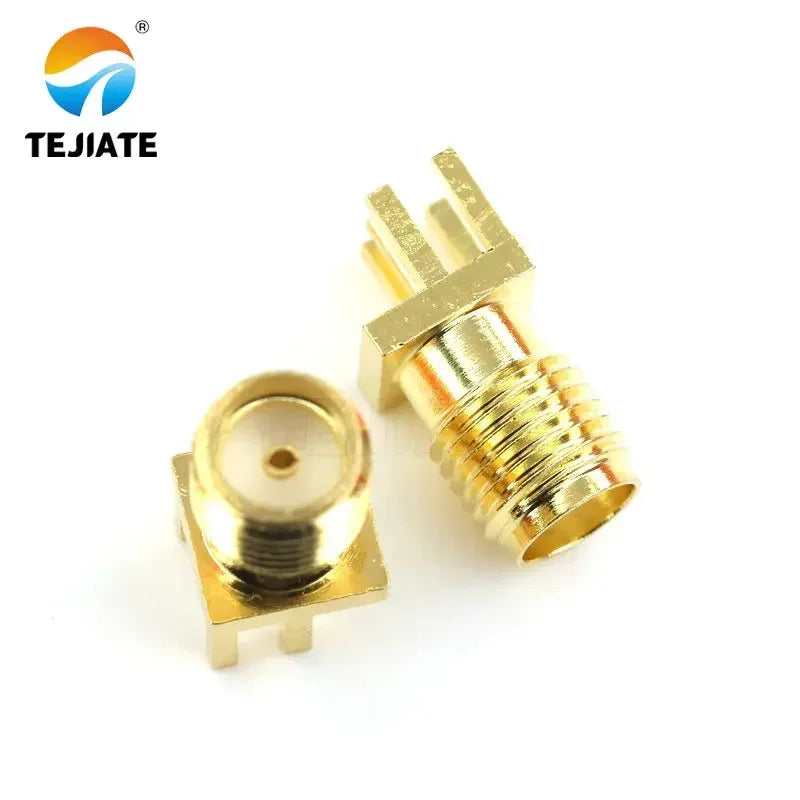

10Pcs 1.6mm SMA Female Jack Solder Nut Edge PCB Clip Straight Mount Gold Plated RF Connector Receptacle Solder

TEJIATE/特加特
In stock
¥2.45
Connector Type

Secure checkout

Friendly support

Hassle-free returns



Feature:

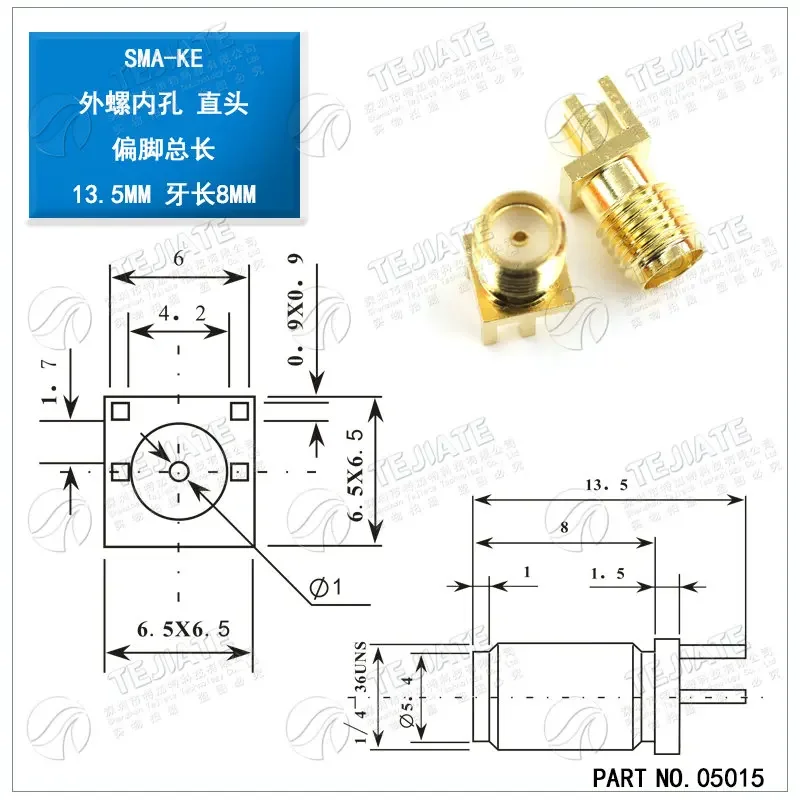

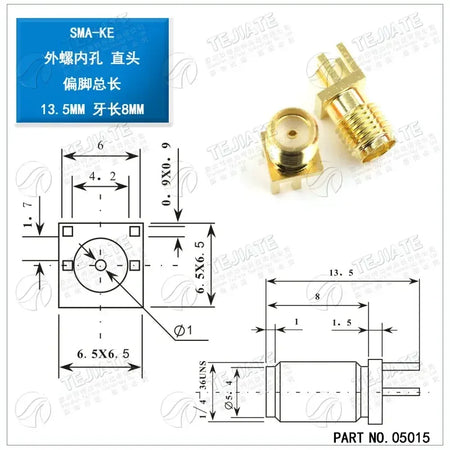

1.SMA female for 1.6mm thick solder edge PCB mount straight RF connector
2.Gold plated PCB SMA Female Coaxial Connector
Specification:
Temp.range: -65～ +165 (PE Cable -～ +85)
Vibration: MIL-STD-202,Method 213
Impedance: 50Ω
Working Voltage: 335V max
Withstand Voltage: 1000V rms
Contact resistance:Center Contact≤3mΩ
Outer Contact≤2mΩ
Insulation resistance:≥5000 mΩ
Insertion loss: ≥0.15 dB/6GHz
VSWR Straight: ≤1.10+0.002f
≤1.05+0.001f
Right angle:≤1.20+0.00
≤1.10+0.001f
Durability(mating): ≥ 500 (cycles)
